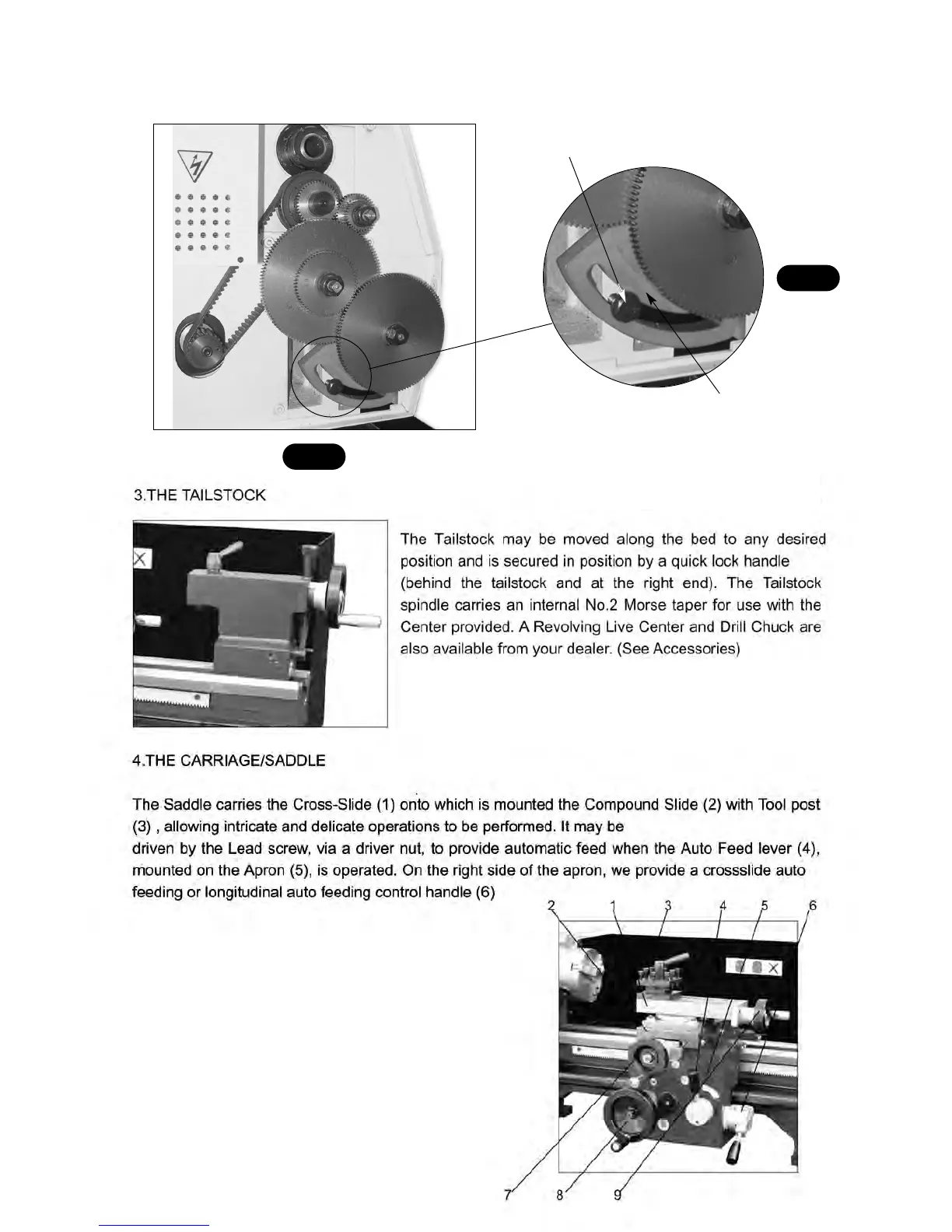

2a. SCREW CUTTING CONTINUED
PIVOTING BRACKET
CLAMPING BOLT
The "C/B" axis is adjusted via the pivoting bracket and clamp bolt as shown. (See figs 2 & 2a)
