3. Connect the Line OUT of your computer sound card to the rear panel AUDIO
INPUT of the MultiClamp 700A, and the rear panel AUDIO OUTPUT to external
powered speakers. This is the same as option 2, except that now the MultiClamp
700A audio output is mixed with the computer’s audio output to external speakers.

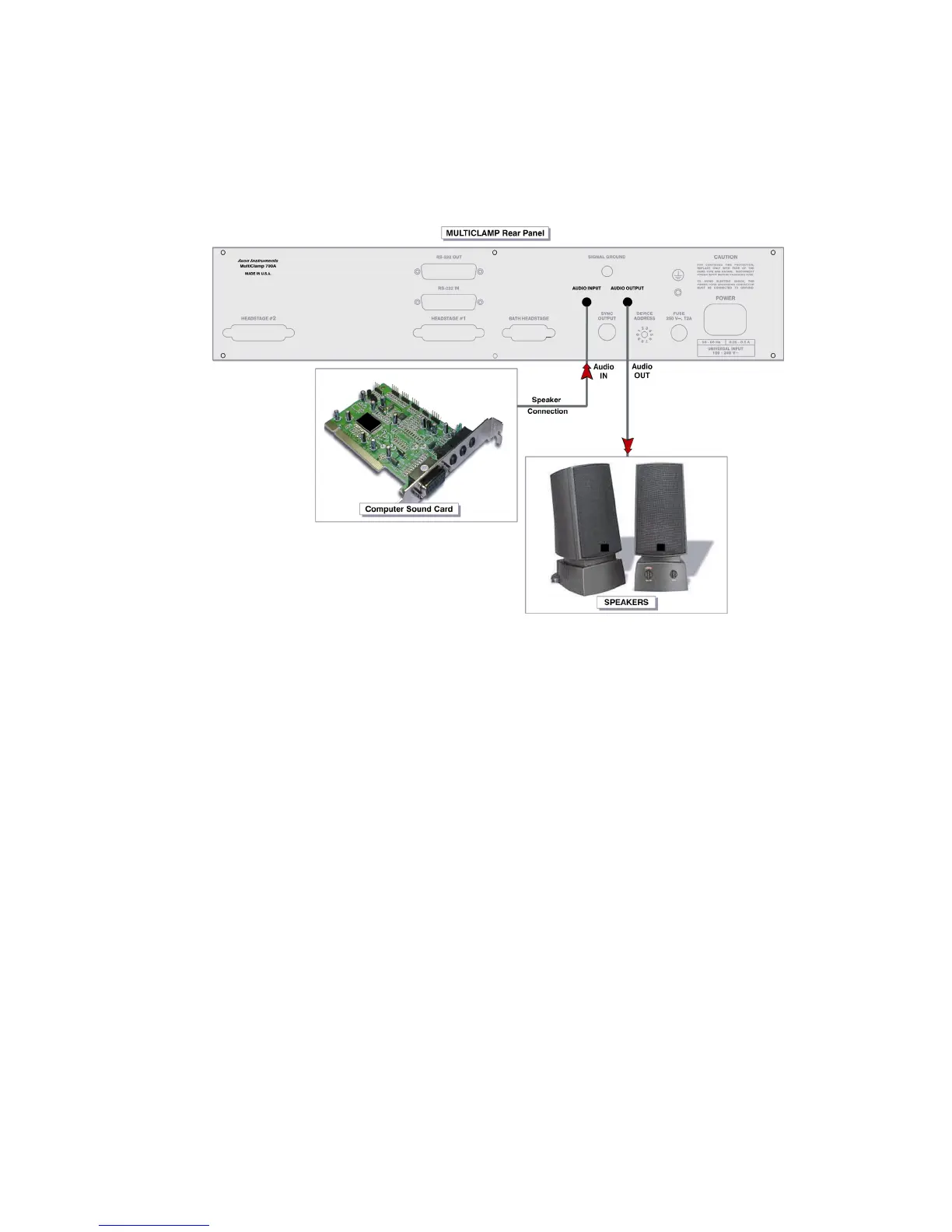

Figure 4.3. Possible Audio configuration #3.
WARNING: Never connect the computer’s microphone jack to Audio
connectors on the MultiClamp 700A. This could lead to large voltages being sent
to the MultiClamp 700A, with the possibility of causing damage to its circuitry.
