Axxess AX200 User Manual
5
of 1
of 1 rating
118 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
www.axx
essid.
com
Installati
on & User Guid
e
AX2
00
Ins
t
allat
io
n & U
s
er G
u
id
e – J
u
ly
200
7
38

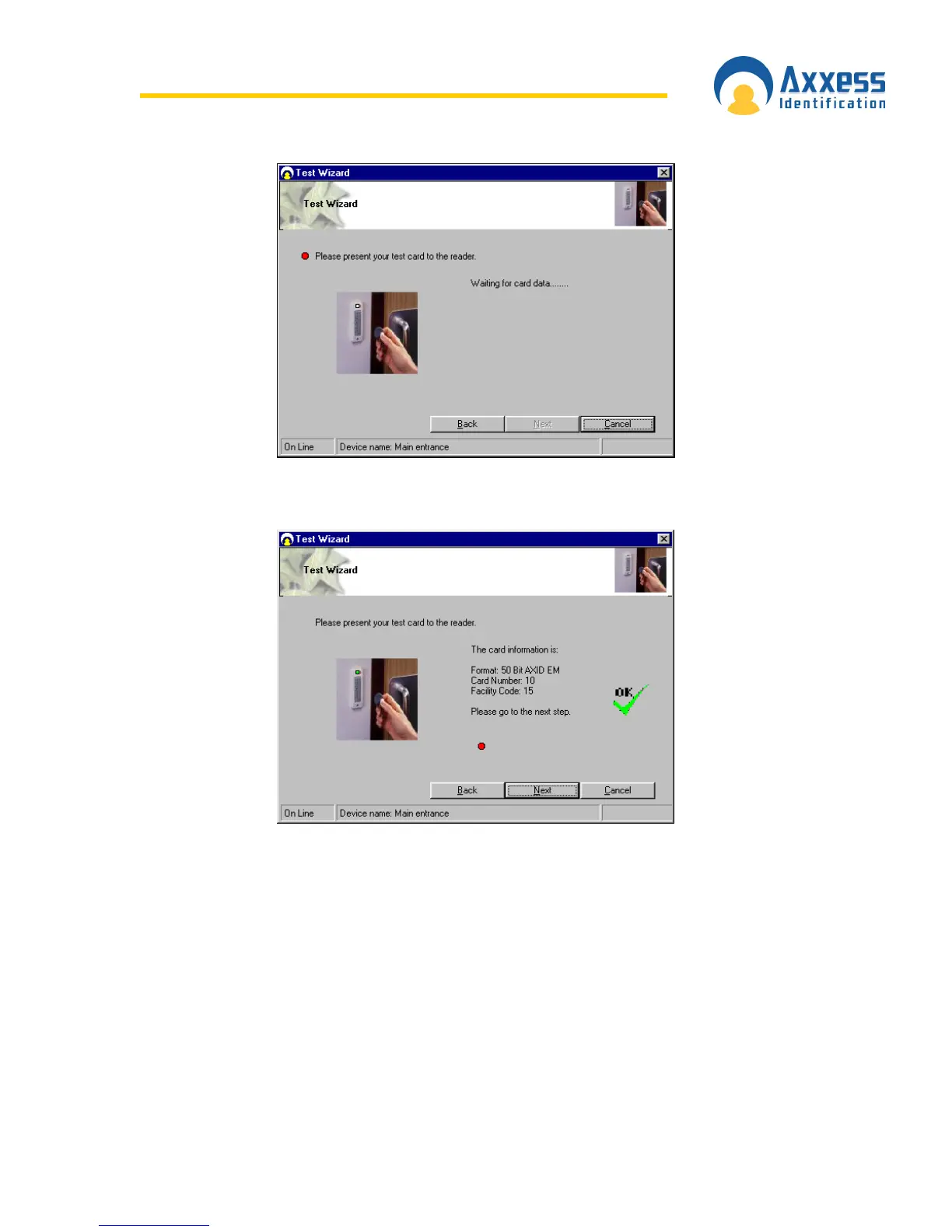

The T
est Wizard will now chec
k and verif
y the card format
, facilit
y code and car
d number. Select
Next
to c
ontinue.
The T
est Wizard will now conf
igure t
he card form
at, cardholder, and ac
cess
point and download
the dat
a to the cont
roller. Selec
t
Next
to continue.
37
39
Table of Contents
Default Chapter
1
User Guide
1
Table of Contents
4
AX200 Installation
8
AX200 Software Setup
8
TCP/IP Configuration (Fixed IP Address)
10
IP Definitions Applicable to the AX200
11
AX200 & I-BOX Connections
12
Way I-BOX I/O Connection
12
Sounder /Beacon for I-BOX (IC-ASB)
13
AX200 Expander Board Connections
14
Break Glass Wiring AX200
15
Break Glass Wiring AX50/AX100
16
AX200 Software
19
Operating Systems
19
Software Installation
19
Starting the AX200 Software
22
Language Selection
23
Password Reminder
23
Windows™ Classic or Graphic Style (XP) Screen
23
Backup & Restore
24
Email Backup Settings
25
Standard Query Language (SQL)
26
Database Integrity Check
27
Communication between the AX200 Software and Controller
27
Plug & Play Devices
28
Controller Status & Control
29
High Security Mode (HSM)
29
Door Unlock Mode
30
Date and Time
30
On & Offline Operation
30
Force Download & Clear Controller
31
Performance Analyzer
31
Transaction Screen
32
Who's In/Out List
33
Display Filters
34
Photo Display
34
Email
34
Save on Exit
36
Test Wizard
36
Cardholder
41
Main Settings
41
Card Number
41
Imprint Number
42
Employment
42
Department
42
Access Group
42
Card Type
42
Card Status
42
Pin Code
42
Time Zone
42
44
Photo ID
44
Add a Photo
45
Capture Picture from Camera
45
Import Picture from File
46
Templates
46
Add New Card Wizard
46
Card Replacement Wizard
47
Card Diagnostics
48
Search
49
Card 0 Function
50
Print Current Card Details
50
Database Fields Per Cardholder
50
Main Settings Tab
50
Other Info
51
Employer
52
Mode Settings
53
High Security (Hi Sec)
54
Extended Door Open Time (Ext'D Door)
54
Set High Security Mode (Set Hi Sec)
54
Set Latch
54
Time Zone
54
Personal Info
54
Vehicle Info
55
Access Point Configuration
56
Access Point Settings
56
Access Identity
56
Access Point Name
56
Door Comments
57
Door Release Time
58
Start-Up Mode Settings
58
Door Contact Settings
58
PIN Settings
59
Device Parameters
60
Device Group
60
Device Type
60
Hardware Version
60
Firmware Version
61
Batch Number
61
Serial Number in Batch
61
Database Stamp
61
Access Groups
61
Creating a New Access Group
62
Device Manager
62
Automatic IP Setup
63
Device Status Indication
65
Device Settings
67
Fire Alarm
68
Test Connection
68
System Settings
69
Site Info
69
Test Wizard
70
E-Mail Facilities
71
E-Mail Unknown Format to Axxess ID
71
DB Maintenance
72
Compact Database
72
Backup Settings
73
Database Restore
73
Export Cardholders
73
Import Cardholders
73
Export Photo ID Templates
73
Import Photo ID Templates
73
Firmware Settings
73
Rollback
74
Hidden Functions
74
General Settings
76
Maximum PIN Number 1~6
76
Number of Lines in Screen
76
Transaction Screen Pause
76
COM Port Timeout
76
COM Port Retry Times
76
Link Alive Retry Times
77
Function Settings
77
COM Port Settings
77
Multiple/Single Card Format
78
Default Access Level
79
Default Time Zone
79
Default
79
Third Party File
79
Format & Statistics
79
Card Type Information
80
Facility Code
80
Card Matching
81
Card Format Analyzer & Format Configuration
81
Security Settings
81
Adding a New User
82
Adding a New Authorisation Group
82
Report
83
Cardholder Brief
84
Cardholder Details
85
Log File
85
Dossier
85
Work Spell
86
Operators
86
Environmental
86
System Summary
86
Quick View
86
Printing
87
Format Types
87
Destination
87
I - BOX
88
Environment
89
I- BOX Parameters
90
Sensor Settings
90
Alarms
91
I- BOX Settings
92
PDU (Power Distribution Unit)
93
Details
94
Sensor
97
Hardware Connection Details
97
Sensor Settings
97
Isolate
98
Pir
99
Dust Particle Sensor
101
Mains Present Sensor
102
DTU (Data Transfer Unit)
103
Connecting the DTU
103
Dtu
105
Add a New Door Using a DTU
105
Adding Card Formats Using a DTU
106
DTU Step by Step
106
DTU Operation
107
DTU LED Indicators
107
Clear DTU
108
Removing the AX200 Program
108
Anti-Virus
109
Readers
111
Fingerprint Reader
111
Connection Details
111
Proximity Readers
115
How to Connect the Reader to the Host
115
Software Configuration
115
AXM Readers
117
Output Type
117
Connection Details
117
Proximity Request to Exit
118
Technical Details
