Azbil 100 Series User Manual

2-12
2-6-1. Installing the reversing relay on an SVP
Remove the dust plug from the output air connection. Screw the Relay air connection of the
reversing relay into the output air connection on the top of the SVP. Sealing tape is preferable
to solid or liquid sealants for pipe joints to SVP air connections. Prevent sealing tape/sealant
from entering pipes.

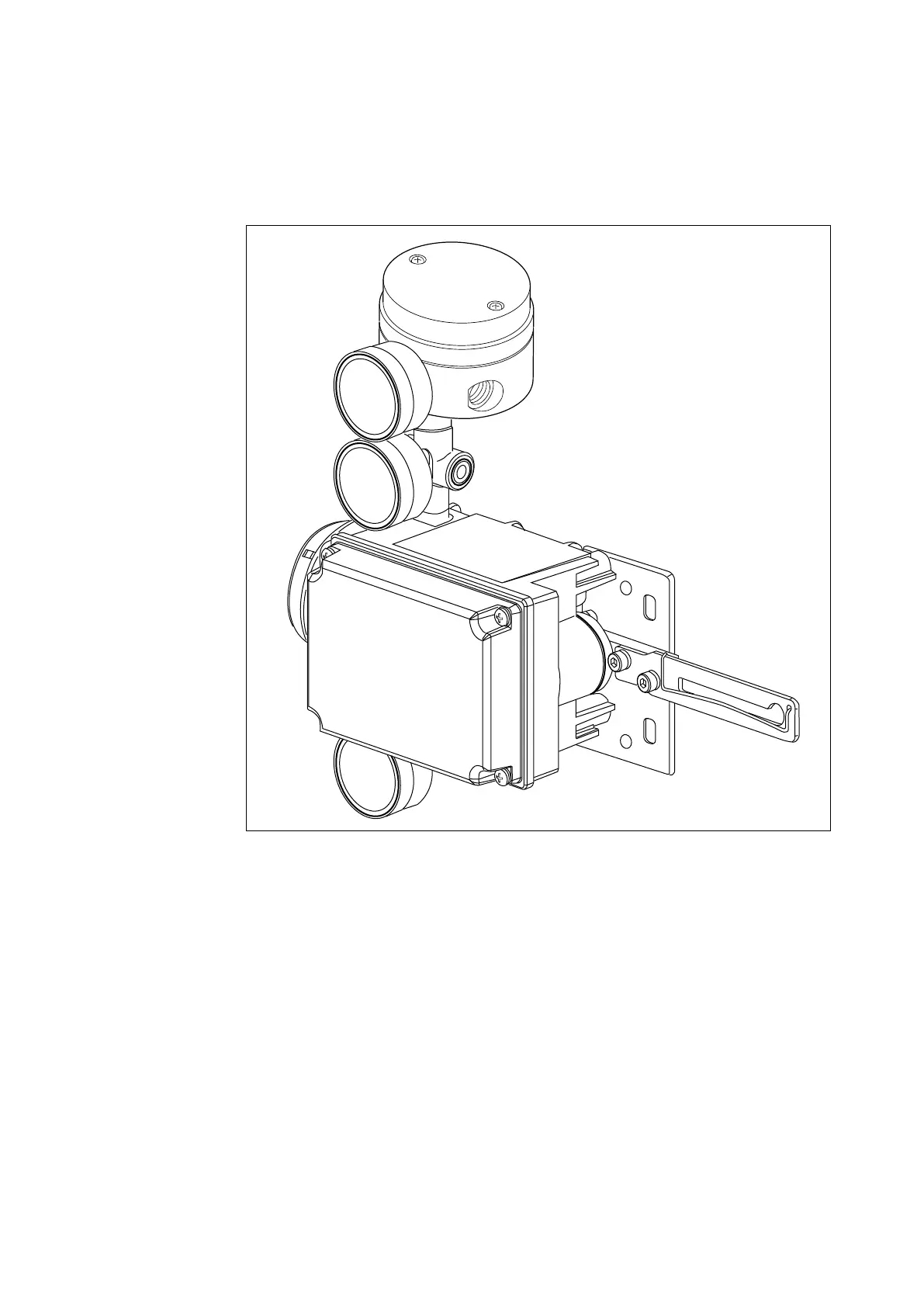

Fig. 2-10. Reverse relay installed on an SVP
