2-6-2. Double-acting SVP without air regulator directly attached

Using a T-connector, connect the air supply from the regulator and filter to both the SVP

Supply air connection and the Supply air connection on the reversing relay using sealing

tape. Make sure to connect only one regulator to an SVP and reversing relay combination.

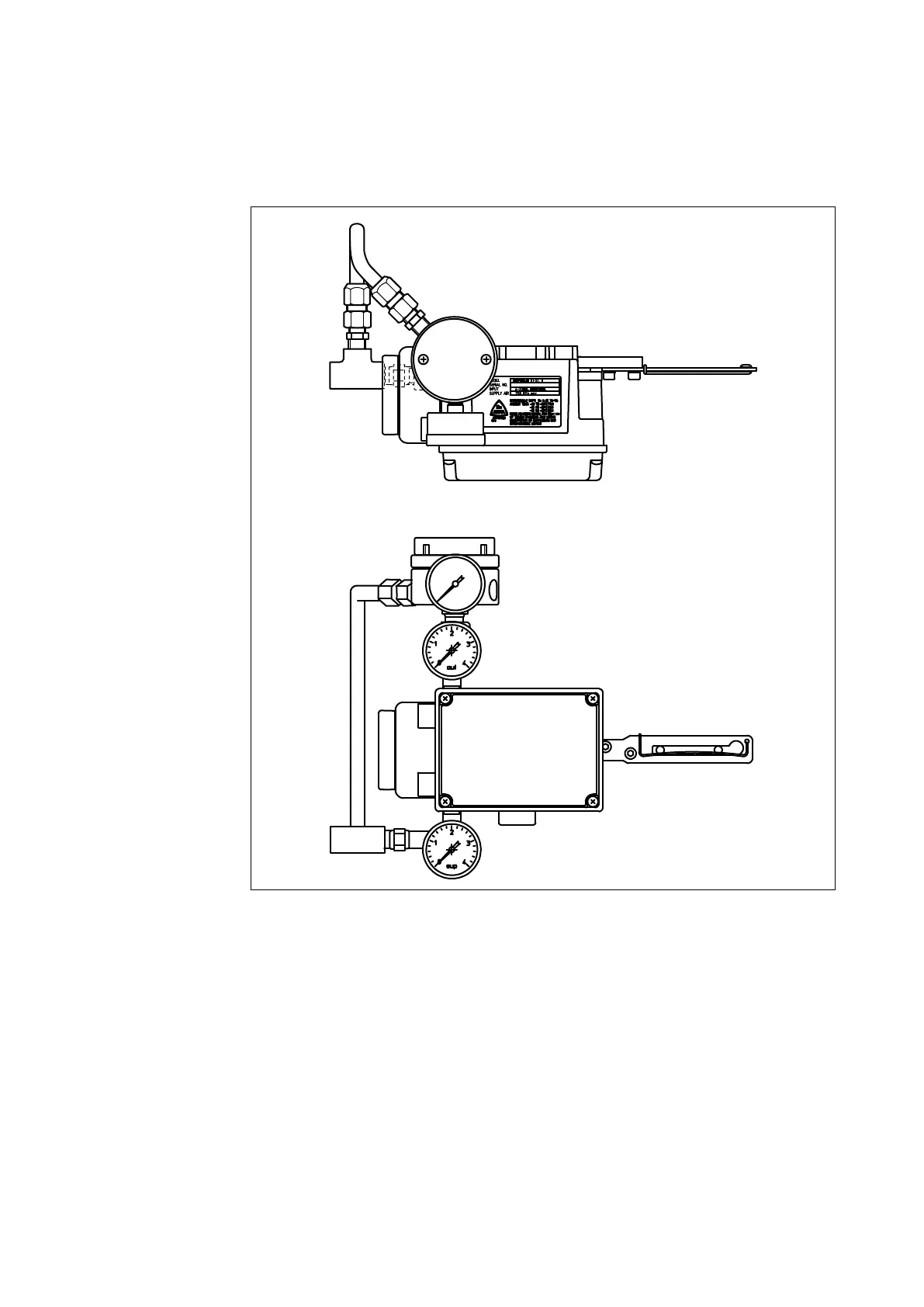

Fig. 2-11. Double-acting SVP without air regulator directly attached

Note)

Please note that the Auto/Manual switch is not used on Double-Acting SVPs.

When

using the SVP as a double-acting positioner, use the valve handwheel or air pressure

regulator to perform SVP calibration such as that shown on page 2-8 and the “Zero/

span adjustment”on page 4-9, ignoring the instructions to operate the A/M switch.
