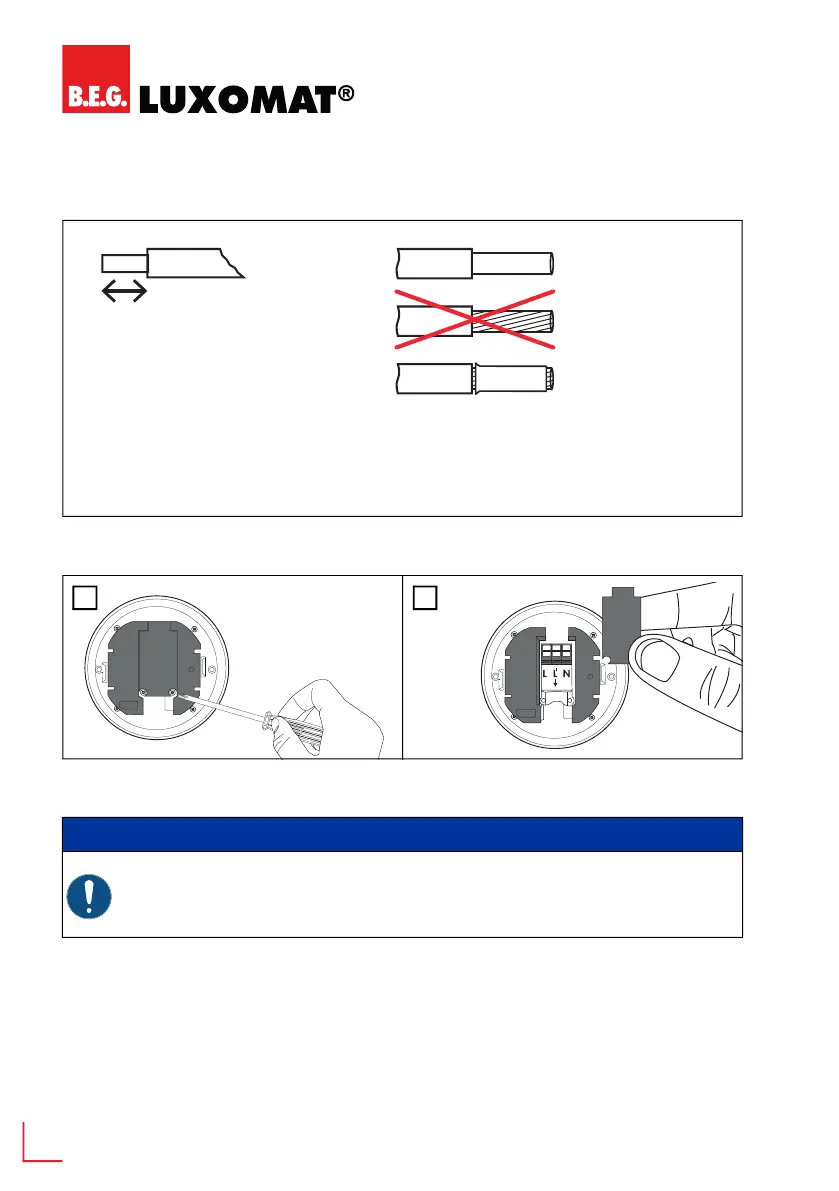

5.1 Preparing the connection
5.1.1 Preparing the connection cable
5.1.2 Opening the terminal compartment.
5.1.3 Strain relief/protection against accidental contact
NOTICE
Install strain relief/protection against accidental contact!
The cover of the terminal compartment also serves as strain relief and protection against
accidental contact.
➜ After the electrical connection has been made, reinstall the cover.
0.5 … 1.5 mm
2
0.5 … 1.5 mm
2
1
3
2
10mm
1 Solid conductors
2 Stranded conductors
3 Stranded conductors with ferrules
1 2
