Operating Manual
BL2 93317
6
3.2 Functions
The general operation of the motion detector is described in the short operating instructions
supplied with the device.
Passive infrared motion detectors register movements of heat sources and convert them into
signals that are evaluated by a processor.
The device is a switching detector. The brightness value below which the illumination is to be
switched on can be freely selected (switch-on threshold). If the measured value is below the set
switch-on threshold, a detected movement causes the connected illumination to switch on. The
follow-up time also restarts with each newly detected movement. After the follow-up time has
elapsed, the illumination is switched off.
The illumination can be switched on or off manually by remote control at any time. The device then
remains switched on or off as long as movement is detected plus the set follow-up time.
The follow-up time is restarted by each movement detected. If no movement is detected during a
follow-up time, the detector returns to normal operation (light is switched on during movement and
remains on until no movement is detected for a follow-up time).

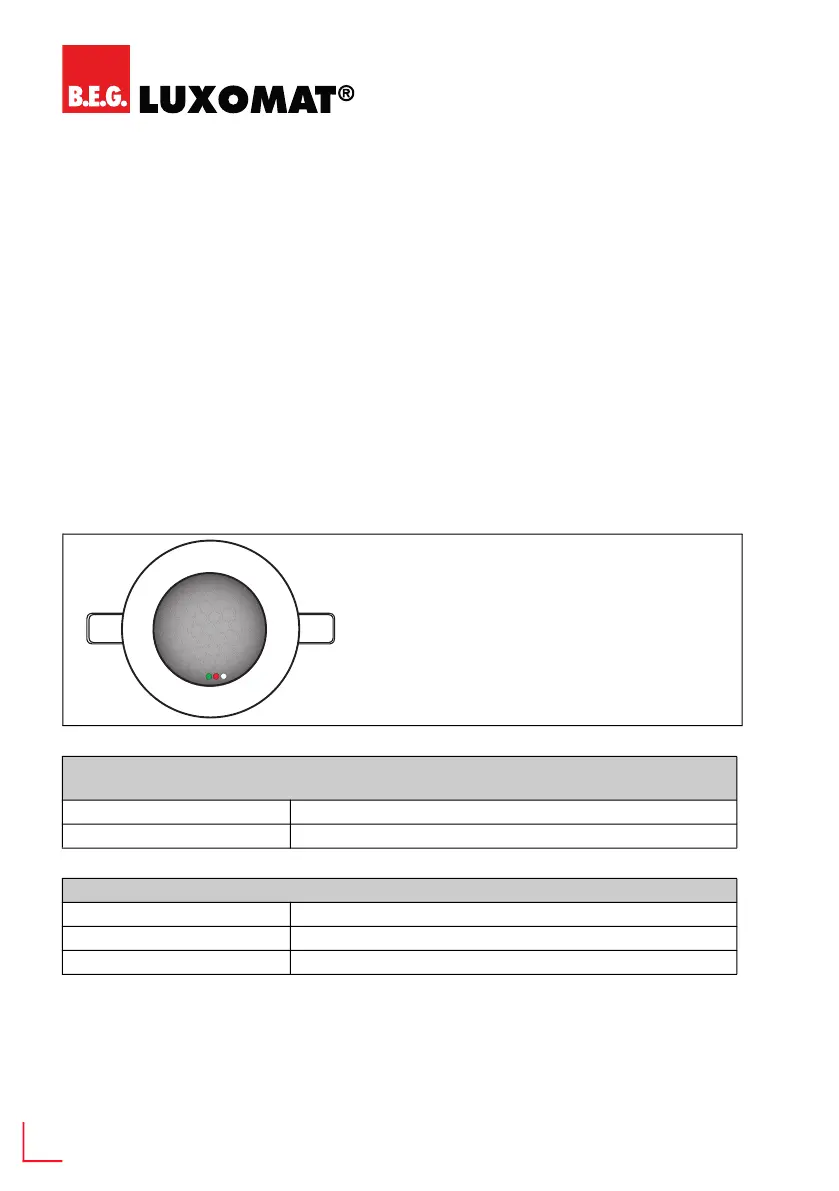

3.3 LED indicators
LED function indicators after each mains recovery
(10 s self-test cycle)
Factory setting active Red, green and white LEDs flash alternately
Detector is programmed Red LED flashes quickly (2x/s)
LED function indicators during operation
Motion detection Red LED flashes
Switch-on threshold exceeded Green LED flashes
IR command White LED flashes
1 Status LEDs
