General Description
© b2 electronic GmbH DHV0088 33

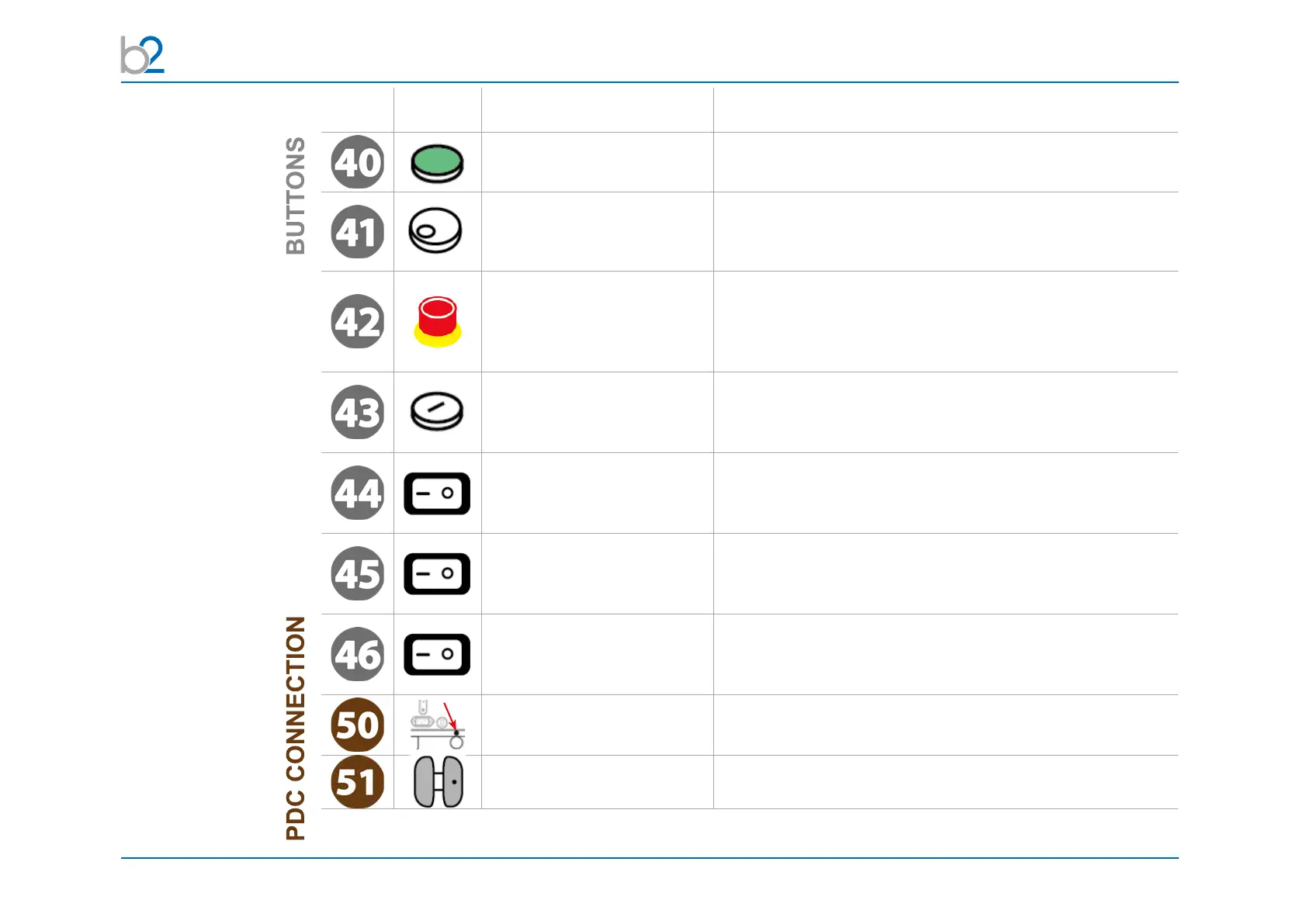

Nr. Picture Name Description
HV switch ON /OF Enables High Voltage on HVA
Navigation knob
Enables user to select options and functions shown on display.
• To scroll selection up or down -> Rotate
• To enter selection -> Click (push in)
Emergency OFF (stop)
Activates emergency shut down. Operation is only possible when
Emergency OFF is deactivated.
•ToActivateEmergencyO󰀨->Pressin
•ToDeactivateEmergencyO󰀨->Releaselatchandrotate
HVA Key switch ON/OFF
Locks the unit to prevent against unauthorized use.
• To disable unit -> Remove key from the OFF position
• To reactivate unit -> Replace key and turn to ON position.
HVA Main Switch ON/OFF
Activates/deactivates the HVA.
This switch is a fuse with integrated magnetic auto-reset 10A.
• To reset -> Turn the main switch OFF and then ON again
PD Main Switch ON/OFF
Activates/deactivates PD-2 CC & PD30-E
IfPDsystemisconnectedtopower,switchcanbeleftto“0”.
(battery will be also charged automatically)
TD Main Switch ON/OFF
Activates/deactivates TD unit from PDTD Diagnostic System.
Please Note: TD measurement unit is battery operated no mains
supply and no automatic charging of TD unit batteries
PD-2 CC/PD30-E Calibrator
Connection
Connection for calibrator
DUT Calibrator Connection Connection in corona shields to connect calibrator
