Tan Delta
© b2 electronic GmbHDHV0086 Rev0678

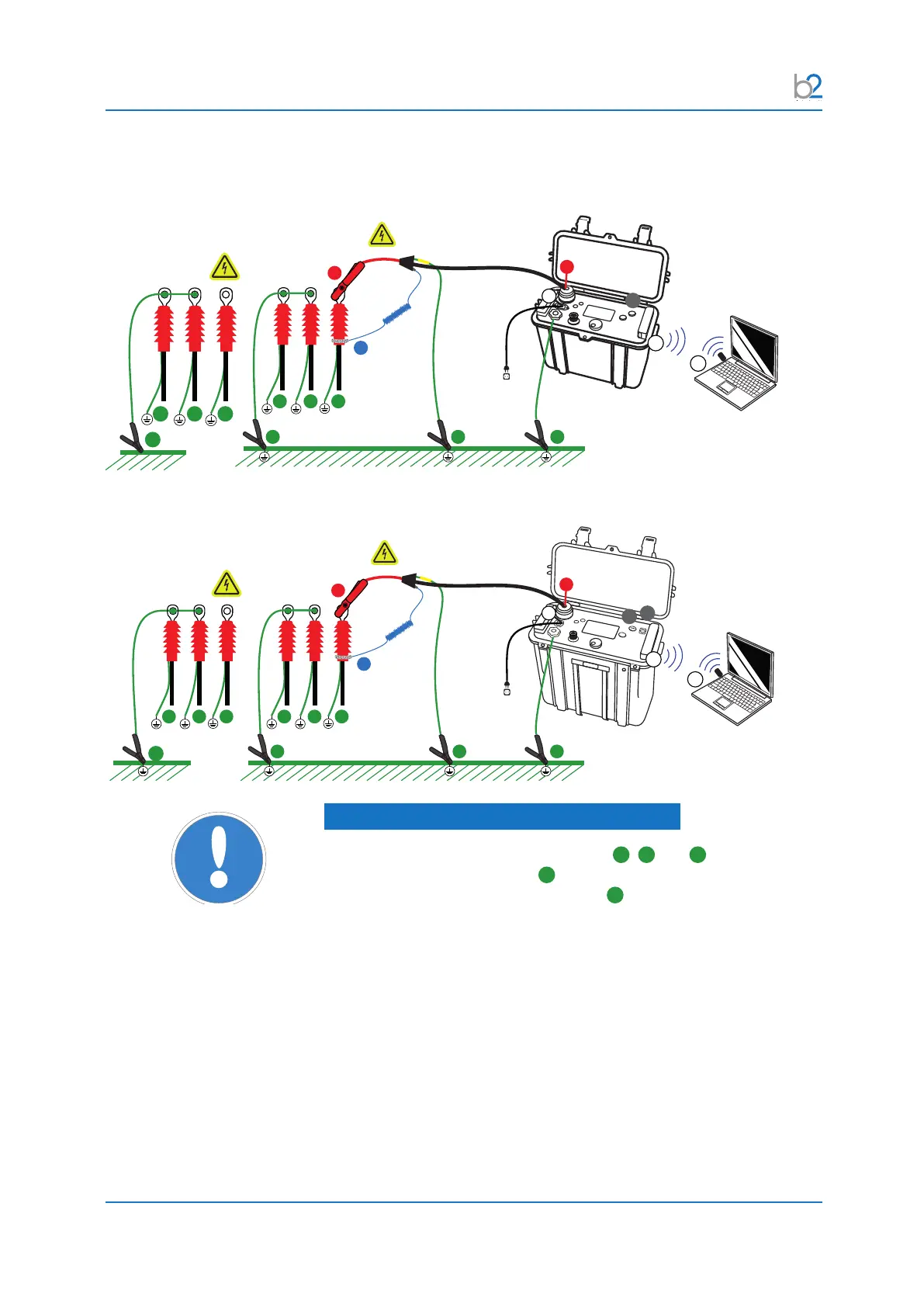

6�2�2 Connection Diagram: VLF withstand test with Tan Delta and guard
3
444
DUT
Far End
DUT
Near End
Guard
Establish secure earthing via
connection and .
Instrument is not earthed by
connection !
b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com
Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5012 - Rev00
HVA28TD
PC (optional)
Mains
30
3
4
10
17
31
31
43
1
2
4
4
Cable Connections
1) Connect all Earth Cables
2) Connect all HV Cables
3) Connect Guard Connection
4) Connect the Power supply plug
5) Bluetooth Connection (optional)
6) Turn key switch to the „ON“ position
31
30
2
3
32
1
4
4
10 17
23
43
Near End Near End
Corona Shield
Far End Far End
Corona Shield
Option with Corona
Option with Corona and Guard on Far End
23
3
DUT
Far End
DUT
Near End
Guard
Establish secure earthing via
connection and .
Instrument is not earthed by
connection !
b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com
Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5012 - Rev00
HVA45TD / HVA34TD-1
PC (optional)
Mains
30
3
4
10
17
31
31
43
47
1
2
4
4
Cable Connections
1) Connect all Earth Cables
2) Connect all HV Cables
3) Connect Guard Connection
23
4) Connect the Power supply plug
5) Bluetooth Connection (optional)
6) Turn key switch to the „ON“ position
31
30
1
2
2
3
3
4
4
10
17
43
Near End Near End
Corona Shield
Far End Far End
Corona Shield
Option with Corona Shield Option with Corona Shield and Guard on Far End
23
4
4
4
23
NOTICE
Establish secure earthing via connection
1
,
3
and
4
.
Connect HVA main earth lead
1
rstandremovelast!
Instrument is not earthed by connection
2
.
