Test Procedure
© b2 electronic GmbHDHV0086 Rev0636
5 Test Procedure
DANGER
Electric Shock Hazard
All procedures must comply with local safety regulations.
• Before operating the HVA, equipment set-up procedure must be completed!
• Cables must be connected in the proper sequence!
• Before turning on the power supply and before activating the HVA,
verify that all system elements are properly earthed!
5�1 Equipment setup
Steps S1-S8 describe the equipment setup procedure. When carrying out
multiple tests, the earth and power supply connections must always remain
intact. The HV test lead must be reconnected before each subsequent test
(i.e. repeat procedure from step S3).

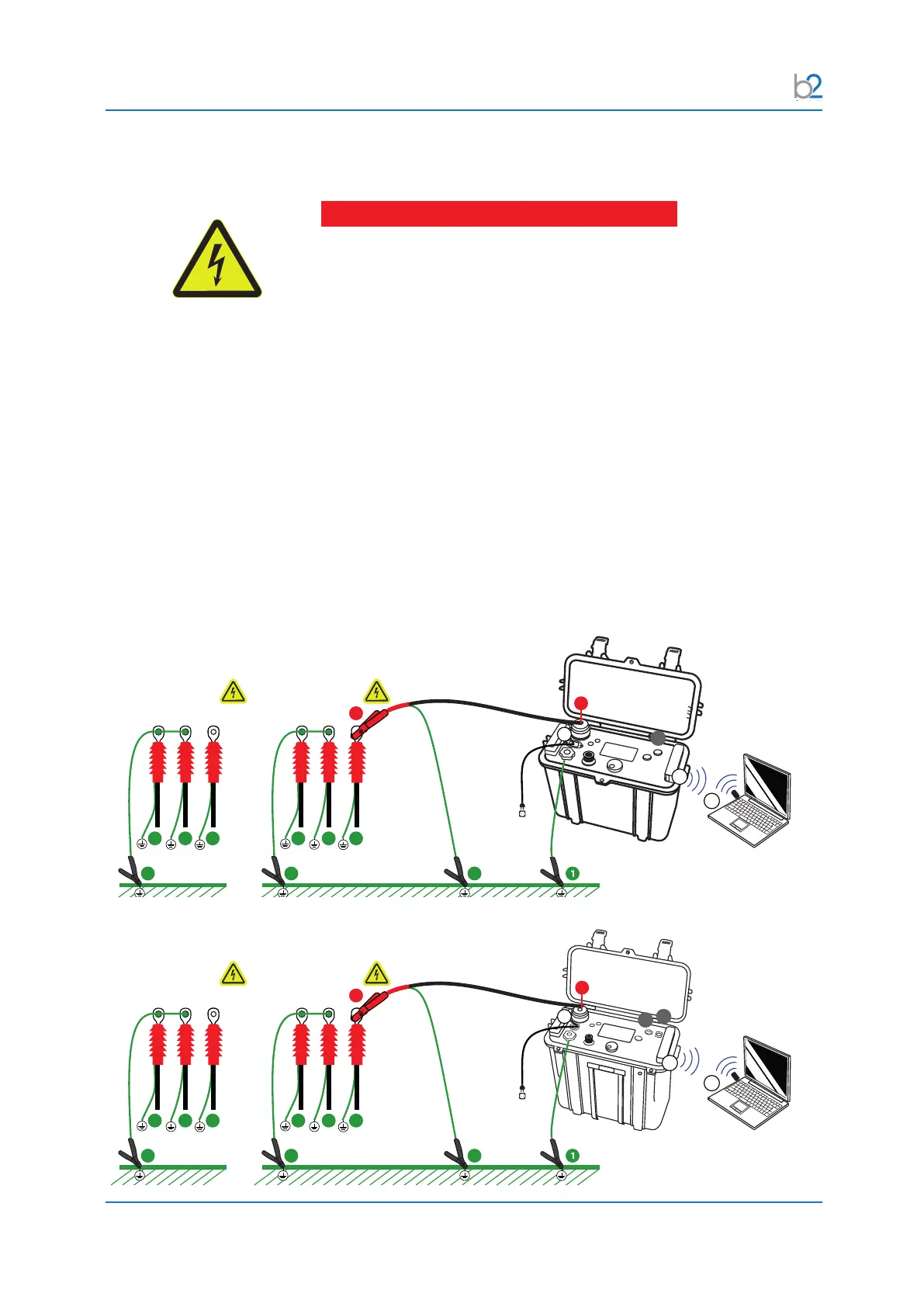

5�1�1 Connection Diagram: VLF withstand test
b2 High Voltage is a business division of b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com
Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5000 - Rev01
HVA28
PC (optional)
DUT
Far End
DUT
Near End
Mains
30
23
444
10
17
3
444
31
31
43
b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com
Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5008 - Rev00
HVA45 / HVA34-1
PC (optional)
DUT
Far End
DUT
Near End
Mains
30
23
444
10
17
3
444
31
31
43
47
Cable Connections
1) Connect all Earth Cables
2) Connect all HV Cables
3) Connect the Power supply plug
4) Bluetooth Connection (optional)
5) Turn key switch to the „ON“ position
31
30
2
2
3
3
4
4
10
17
43
Establish secure earthing via connection and .
Instrument is not earthed by connection !
