B2 HVA28 - 8.2 Disconnection Diagram - System Failure

Disconnection Procedure
© b2 electronic GmbHDHV0086 Rev0698
8�2 Disconnection Diagram - System Failure
b2 High Voltage is a business division of b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com
Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5000 - Rev01
HVA28
PC (optional)
DUT
Far End
DUT
Near End
Mains
30
23
444
10
17
3
444
31
31
43
b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com
Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5008 - Rev00
HVA45 / HVA34-1
PC (optional)
DUT
Far End
DUT
Near End
Mains
30
23
444
10
17
3
444
31
31
43
47

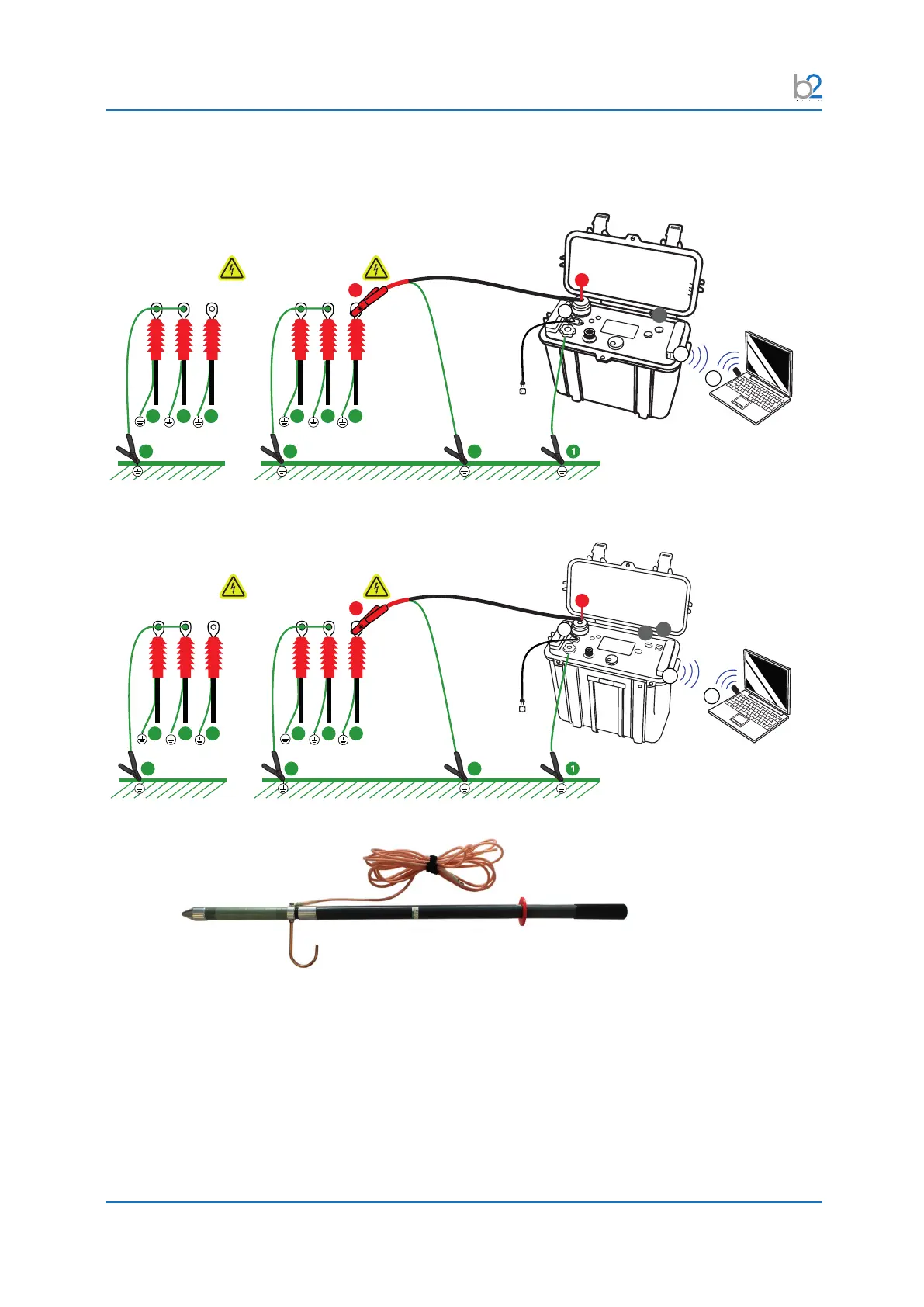

Cable Connections
1) Connect all Earth Cables
2) Connect all HV Cables
3) Connect the Power supply plug
4) Bluetooth Connection (optional)
5) Turn key switch to the „ON“ position
31
30
2
2
3
3
4
4
10
17
43
Establish secure earthing via connection and .
Instrument is not earthed by connection !
Discharge stick
