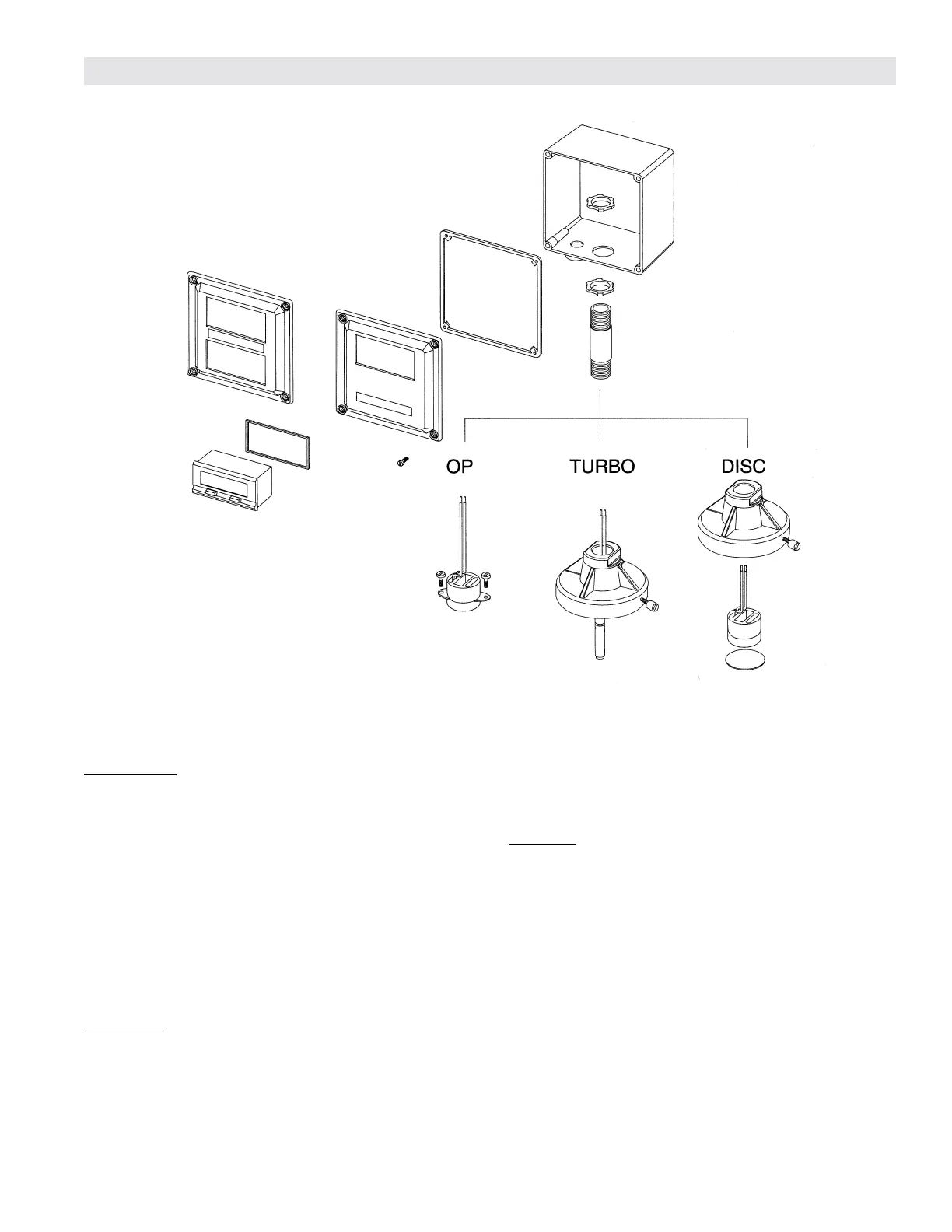

If replacement of your sensor pickup on your meter is required, please
follow the following steps:
TURBO METER
1. Remove the front cover on the ER-8 or ER-9 unit and disconnect
all wiring.
2. Remove meter head bolts and lift meter head assembly from
housing.
3. Remove retaining ring which retains the accessory unit to the head.
4. Loosen the side seal screw on the accessory adapter, twist 90° and
pull entire assembly unit from the meter head.
5. Twist drop pipe in counterclockwise direction to remove it and the
ER-8/9 unit from the adapter assembly.
6. Obtain new adapter assembly and reassemble to drop pipe and
ER-8/9 unit.
7. Reverse the balance of the above steps.
DISC METER
1. Remove the front cover on the ER-8 or ER-9 unit and disconnect
sensor wiring.
2. Loosen the side seal screw on the assembly adapter, twist 90° and
lift entire accessory unit off bare meter.
Meter Mount Surfacing
3. Pull the reed switch pickup assembly and pad from adapter.
4. Replace pickup and pad in adapter, feeding wires up through the
drop pipe.
5. Reposition entire assembly on meter.
6. Rewire sensor to ER-8/9 unit.
OP METER
1. Remove the front cover on the ER-8 or ER-9 unit and disconnect
sensor wiring.
2. Remove the back plate on the meter to expose the pickup assem-
bly.
3. Remove the reed switch pickup assembly and replace.
4. Feed wires up through the drop pipe.
5. Reassemble the back plate in position.
6. Rewire sensor wires to ER-8/9 unit.
7
