Page 12
4-11
Model M-2000 Mag Meter

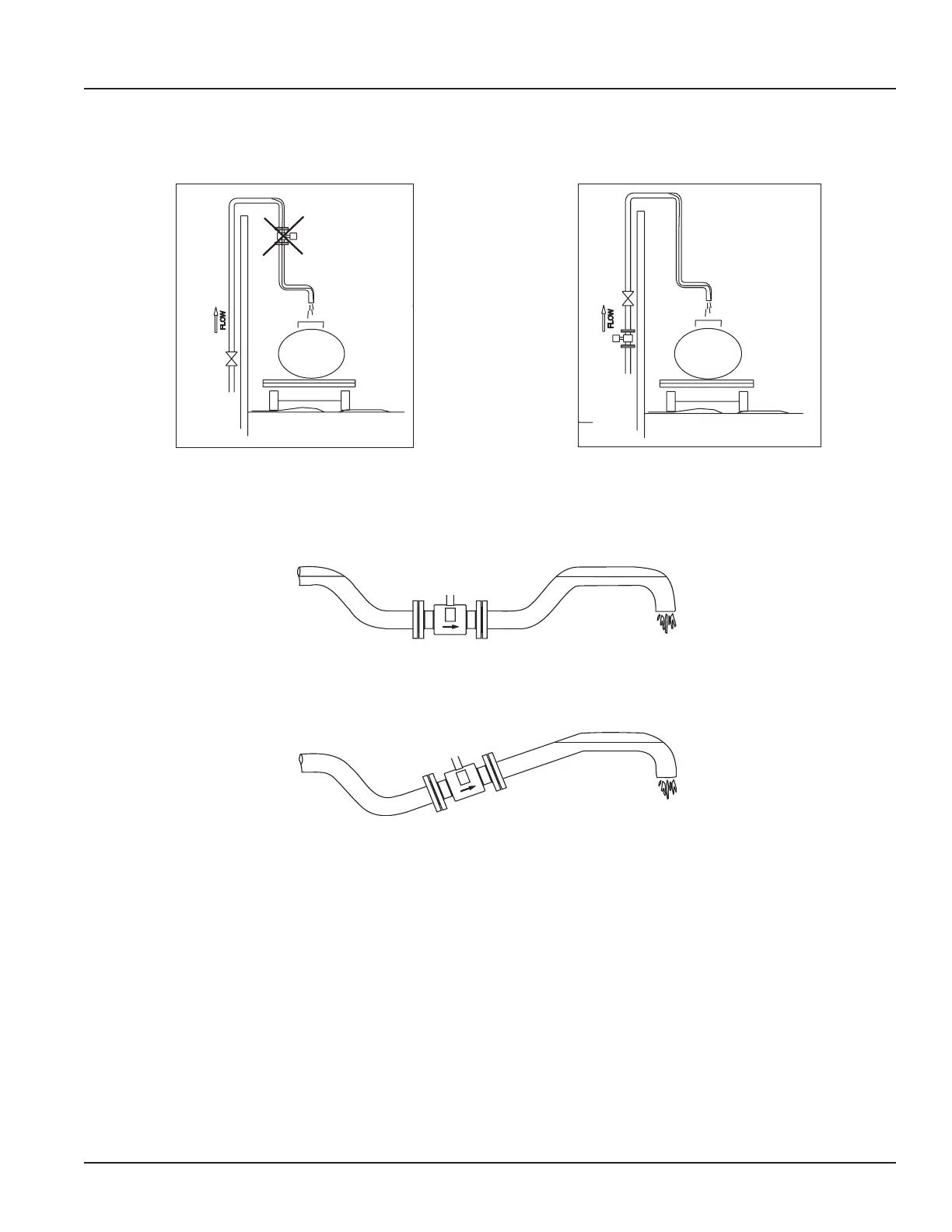

Do not install the meter in a vertical, downward flow section of pipe.
Always position the ON/OFF valves on the downstream side of the meter.
WRONG
RIGHT
FLOW
FLOW
FLOW
WRONG
FLOW
RIGHT
WRONG
RIGHT
FLOW
FLOW
FLOW
WRONG
FLOW
RIGHT
Do not install in a vertical, downward position. Position "On/Off" valves on downstream side.
To minimize the possibility of partially-full pipe flows in horizontal, gravity or low pressure applications, create a pipe
arrangement that ensures the detector remains full of liquid at all times.
