Badger Meter PC200 User Manual

INTERNAL EXTERNAL
Mechanic relay output - R1
42 - NO
43- C
44 - NC
maximum
240V AC - 3A

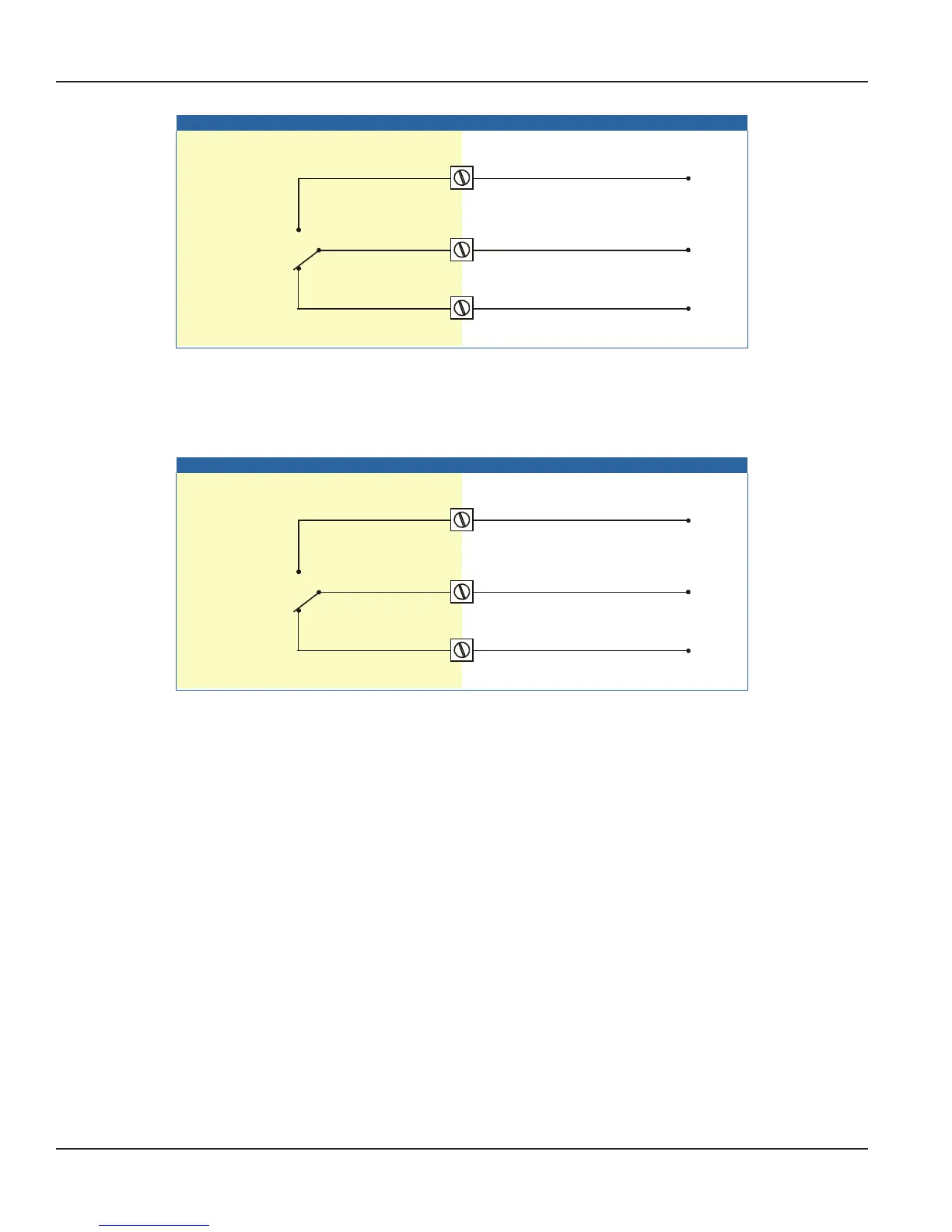

Figure 16: Mechanical relay output R1
Terminal #46-48; control output R2:
The function of the mechanical relay 2 is determined by SETUP function 71.
The maximum switch power is 240V-3A per output.
INTERNAL EXTERNAL
Mechanic relay output - R2
46 - NO
47- C
48 - NC
maximum
240V AC - 3A
Figure 17: Mechanical relay output R2
Industrial Process Controller, Model PC200
Page 16 April 2017CTL-UM-00483-EN-07
