7.3.2 Determining input and output signals
The actuator is either preset to 0...10 V, 0...20 mA or to 2...10 V, 4...20 mA . Depending on the conguration, the
lines for the input and output signals are connected to terminal X4.
7.4 Commissioning and settings

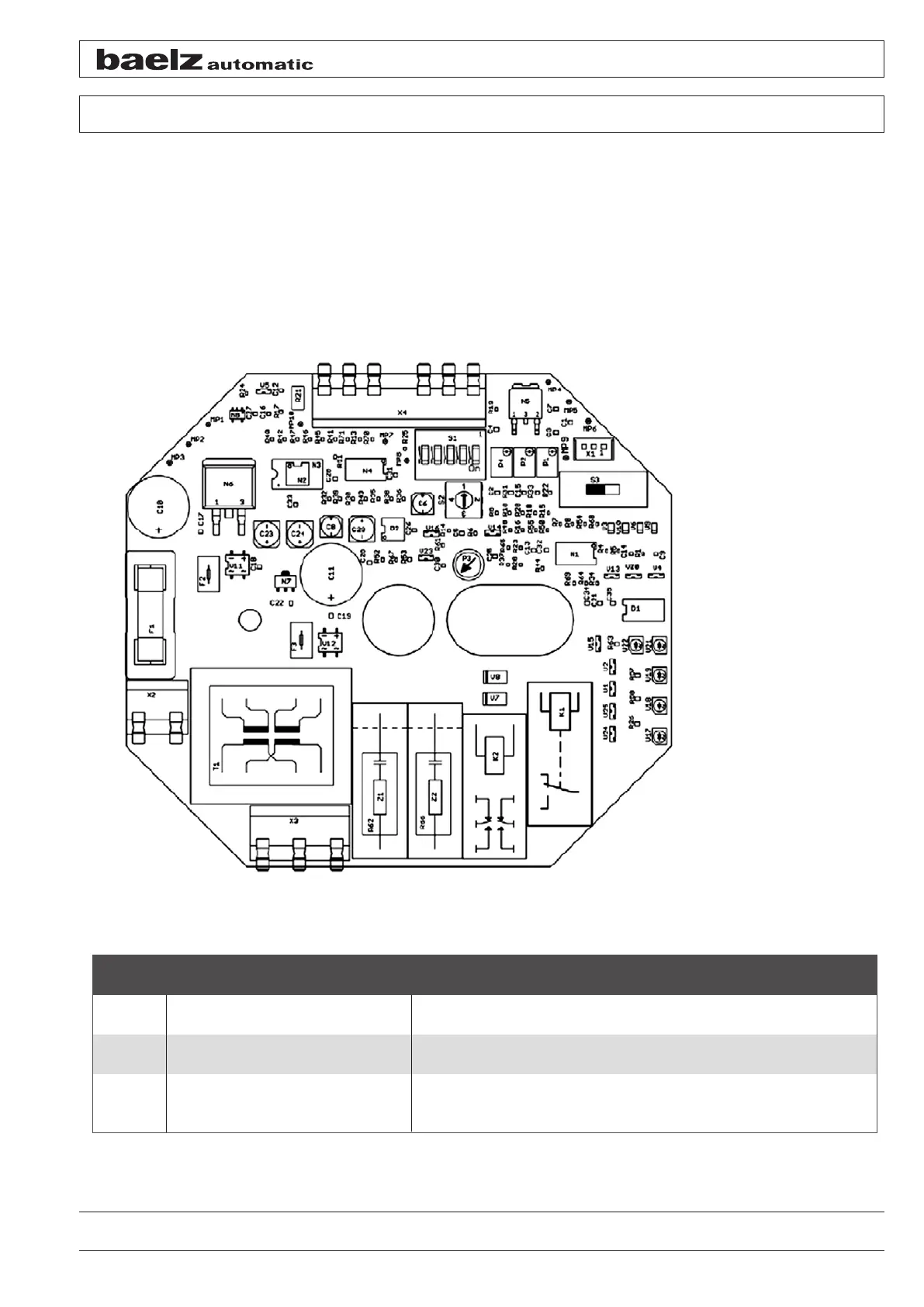

Figure 17: Positioning electronics
Potentiometers
P1 Lower limit adjustment Turn clockwise to lower the limit
P2 Upper limit adjustment Turn clockwise to lower the limit
P4 Span adjustment Turn counter-clockwise to spread
the potentiometer signal
