11. SPARE PARTS

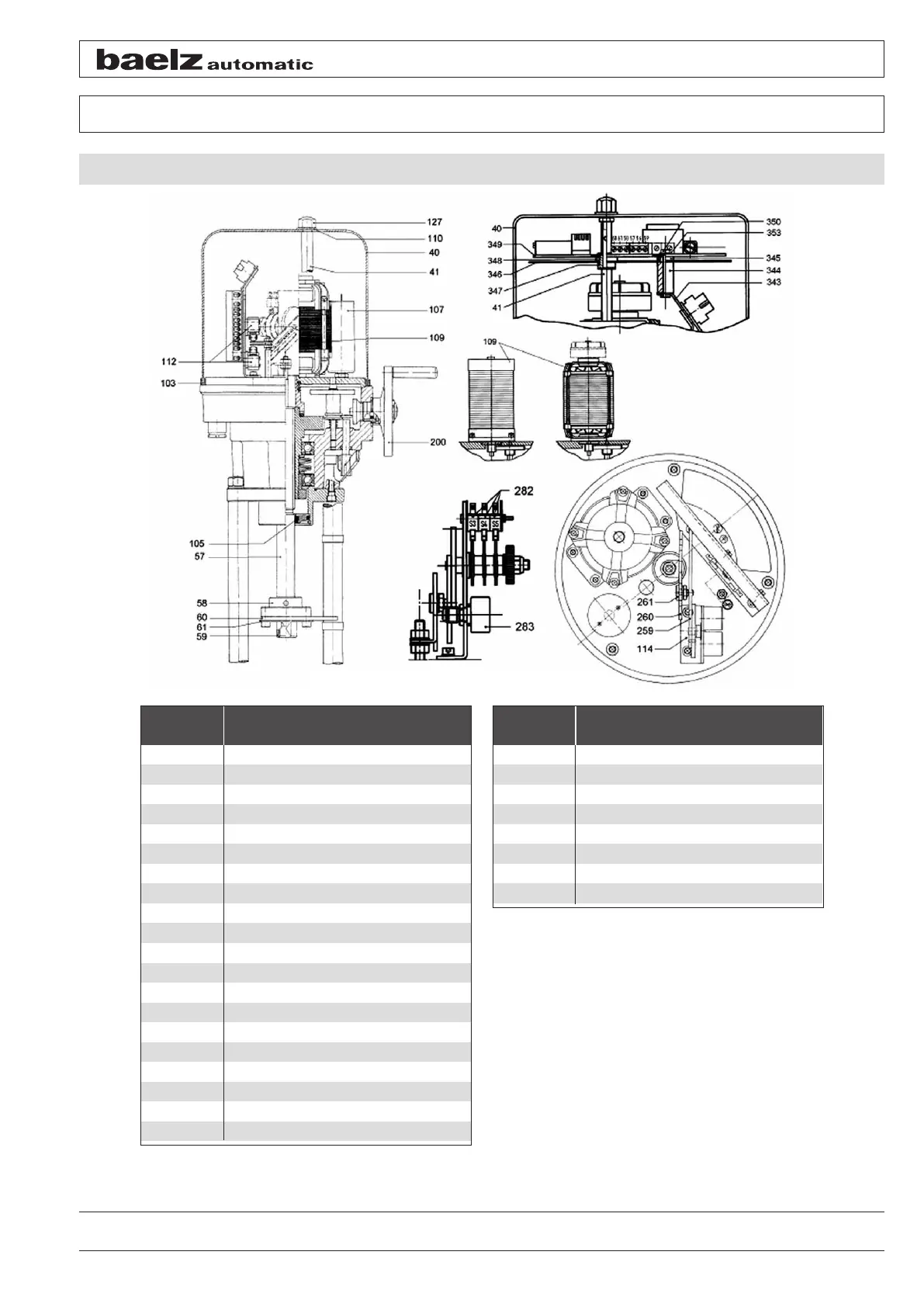

Figure 31: Spare parts list
Comp./Pos.
Component description
40 Cover
41 Cover bolt
57 Connecting rod
58 Coupling ange
59 Threaded bushing
60 Anti-rotation ange
61 Lock washer
103 Cover seal
105 Wiper ring
107 Capacitor
109 Motor
110 Sealing washer
112 Load-dependent switches S1 and S2
127 Cap nut
200 Handwheel
260 Adjusting lever
261 Slider
282 Travel-dependent switches S3, S4, S5
283 Potentiometers R1 and R2
343 Bracket
Comp./Pos.
Component description
344 Spacer
345 Spacer bushing
346 Insulating plate for "PEL"
347 Connector
348 Spacer ring
349 "PEL" positioning electronics
350 Fillister head screw
351 Washer
Please specify on order:
• Type and serial number of the actuator
(see identication label)
• Position number of the component
• Quantity
When replacing an AC motor (Pos. 109), the associated
capacitor (Pos. 107) should also be replaced.
Fig. 30: Position of spare parts in the actuator
