BAFANG DP C10.UART - Function Overview and Key Definitions

3 Function Overview and Key Definitions
3.1 Function Overview
• Use of a two-way serial communication protocol,
simple operation of the display via the external
5-key keypad.
• Speed display: displaying the real-time speed as
SPEED, the maximum speed as MAXS, the
average speed as AVG, remaining range TO
GO, Power W, Calory C .
• km or mile: The user can choose between km
and mile.
• Intelligent battery level indication: With an
optimization algorithm, a stable display of the
battery level is ensured, and the problem of fluc-
tuant battery level indication common with other
displays is avoided.
• Automatic light-sensitive lights:The headlight,
taillight and display light will be automatically
turned on/ off depending on lighting conditions.
• 5 levels off display backlighting: Different levels
• 5-Level-Support: setting power Levels 1 to 5
• Trip distance indication:The maximum distance
displayed is 99999. Single-trip distances TRIP or
the total distance TOTAL can be displayed.
• Display of error messages
• Walk assistance
• Settings: Various parameters, e.g. mode, wheel
diameter, speed limit etc., can be set on the com
-
puter via a communication cable. See the setting
• Maintenance warning (this function can be deac
-
tived): Maintenance warning information is dis-
played based on battery charge cycles and riding
distance. The display automatically estimates the
battery life and gives warnings when the number
of charge cycles exceeds the set value. A warning
will also be displayed when the accumulated total
riding distance exceeds the set value.

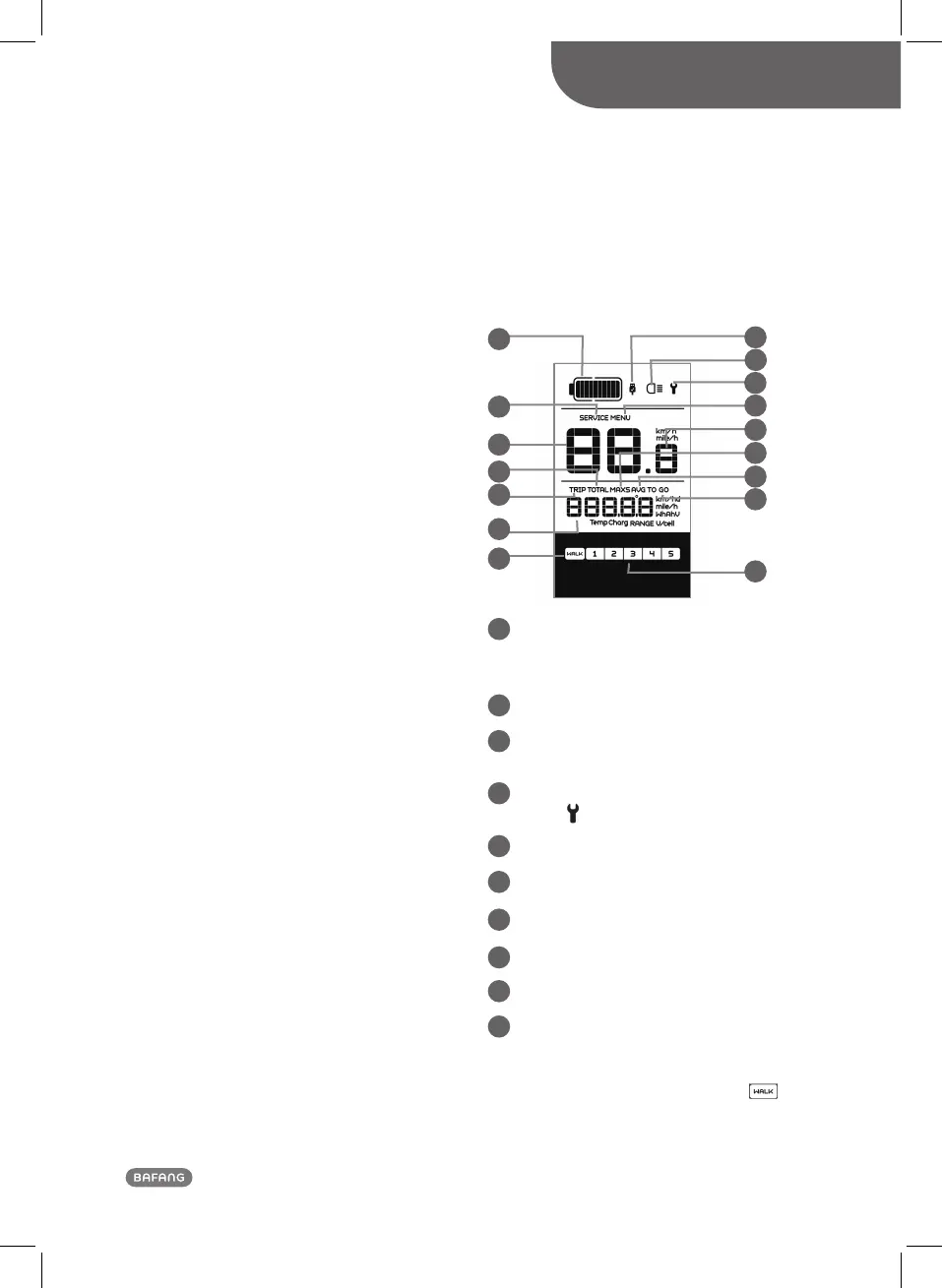

3.2 Information on the Display
USER MANUAL DP C10.UART
H
C
Headlight indication: only shows when headlight
or backlight are on
C
B
F
Speed display: display of the speed, km/h or mph
F
D
Error display: When a fault is detected the
symbol will be displayed.
D
E
Menu
E
A
M
N
O
P
L
K
J
G
I
A
Battery level: 10-segment battery indication; the
voltage that each segment represents can be
customized
B USB charge
G
Max speed
H
Avg speed
I
Remaining mileage
Level indication: The chosen level 1–5 will be
displayed; if there is no numeric display, it means
that there is no assistance (by the motor). If the
rider is walking and pushing the e-bike,
will
be displayed.
J
