BAFANG DP C10.UART - Battery Status and Charging

12

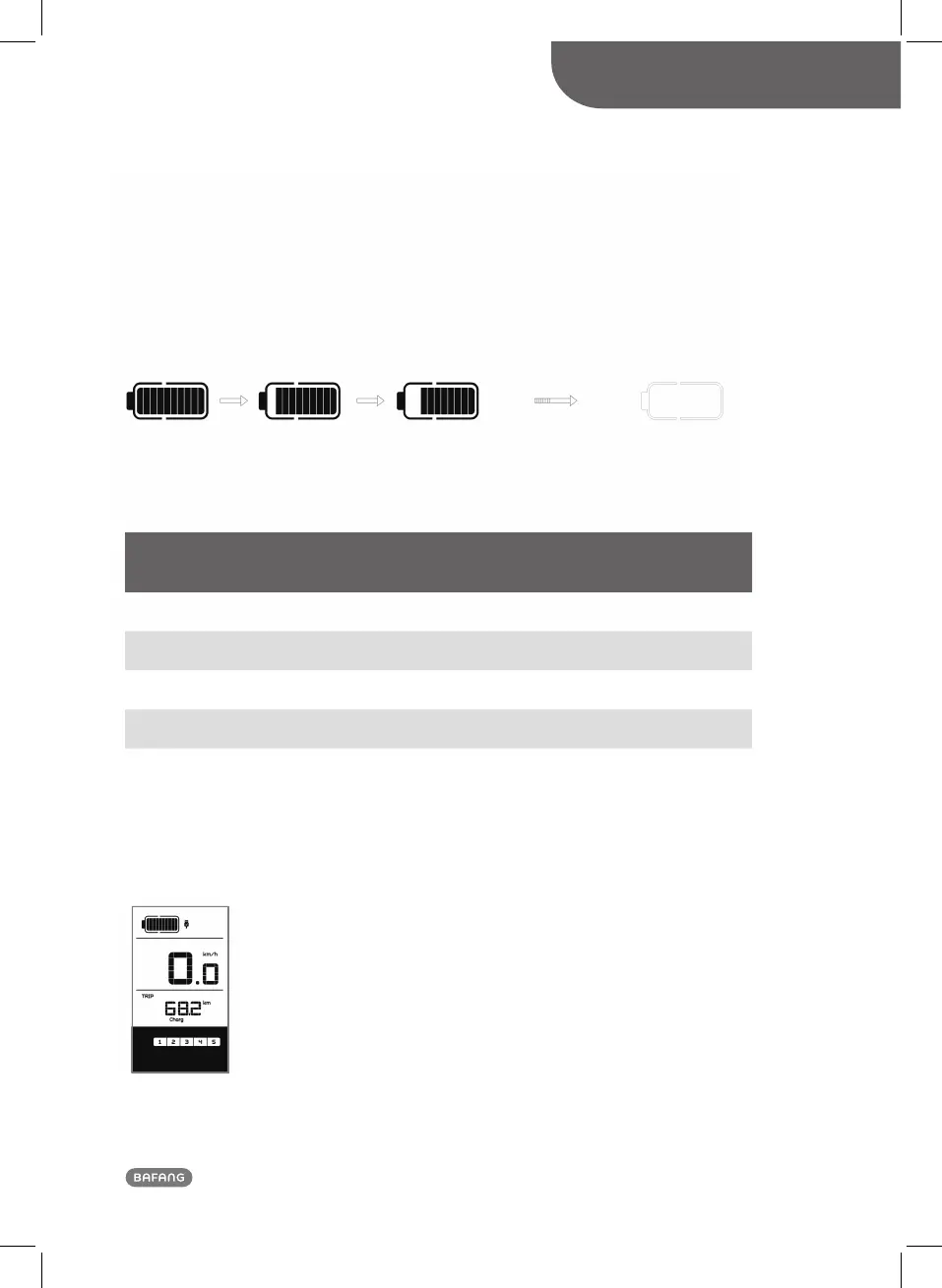

4.6 Battery Status Indication
When the battery status is normal, a certain number of the battery LCD segments as well as the border light up
according to the actual quantity of charge. If all of the 10 segments will black out with the border blinking, the
battery needs to be charged immediately.
Battery status indication
Number of
Segments
Charge in
Percentage
Number of
Segments
Charge in
Percentage
Number of
Segments
Charge in
Percentage
10 ≥ 90 % 6 40 % ≤ C < 50 % 2 8 % ≤ C < 10 %
9 75 % ≤ C < 90 % 5 30 % ≤ C < 40 % 1 5 % ≤ C < 8 %
8
60 %
≤ C < 75 % 4 20 % ≤ C < 30 % border blinking C < 5 %
7 50 % ≤ C < 60 % 3 10 % ≤ C < 20 %
4
8
9
USER MANUAL DP C10.UART
4.7 USB Charging
When the HMI is off,please just plug the USB cable to HMI charging port and then switch on HMI for
charging; and when the HMI is on,please just plug the USB cable to HMI charging port for charging.The
maximum charging current is 500mA。
