Parameter Descriptions 7-3
d5 Output Torque
Range: 0.0 to (Drive Rated Torque x 2) [kgf / M]
Default: Read Only
See Also: H36
Displays the value of the output torque present at terminals U, V and W.
Enter motor efficiency indicated on motor nameplate to H36 to display
correct torque.
d6 DC Link Voltage
Range: Based on Drive Rating [Volts DC]
Default: Read Only
Displays the present DC bus voltage level.

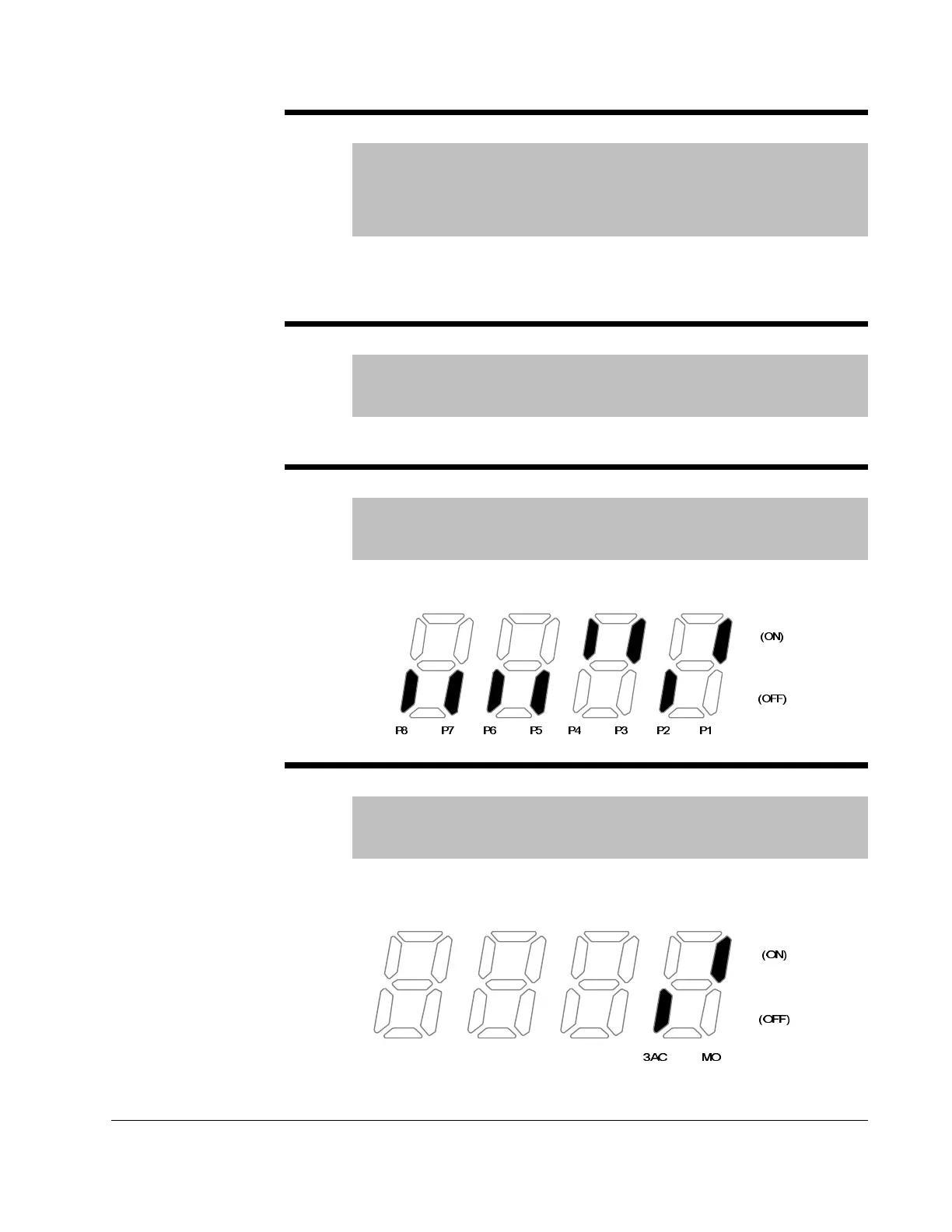

d7 Input Terminal status display
Range: See Figure Below
Default: Read Only
Displays the status of the input terminals P1~P8. An example is
shown below for when P1, P3, P4 are ON and P2, P5 are OFF.
d8 Output terminal status display
Range: See Figure Below
Default: Read Only
Displays the status of the Digital (MO) Output and the Relay
(3A~C) terminals. The following example is for when Digital
Output (MO) is ON and the Relay is OFF.
33333333
21
2)) 
  $&02
21
2) )
