7-8 VS1MD AC Drive User Manual
Terminal Operation Mode 2: (2-Wire Control with Fwd/Rev Switch):
• Select one digital input (t1~t8) = 0, run forward (FX). Operates as a Run
Command
• Select one digital input (t1~t8) = 1, run reverse (RX). Operates as a
Direction Switch
• To enable 3-Wire control select one digital input (t1~t8) = 17, 3-wire
operation.
• Drive stops when both inputs are off or when both inputs are on.

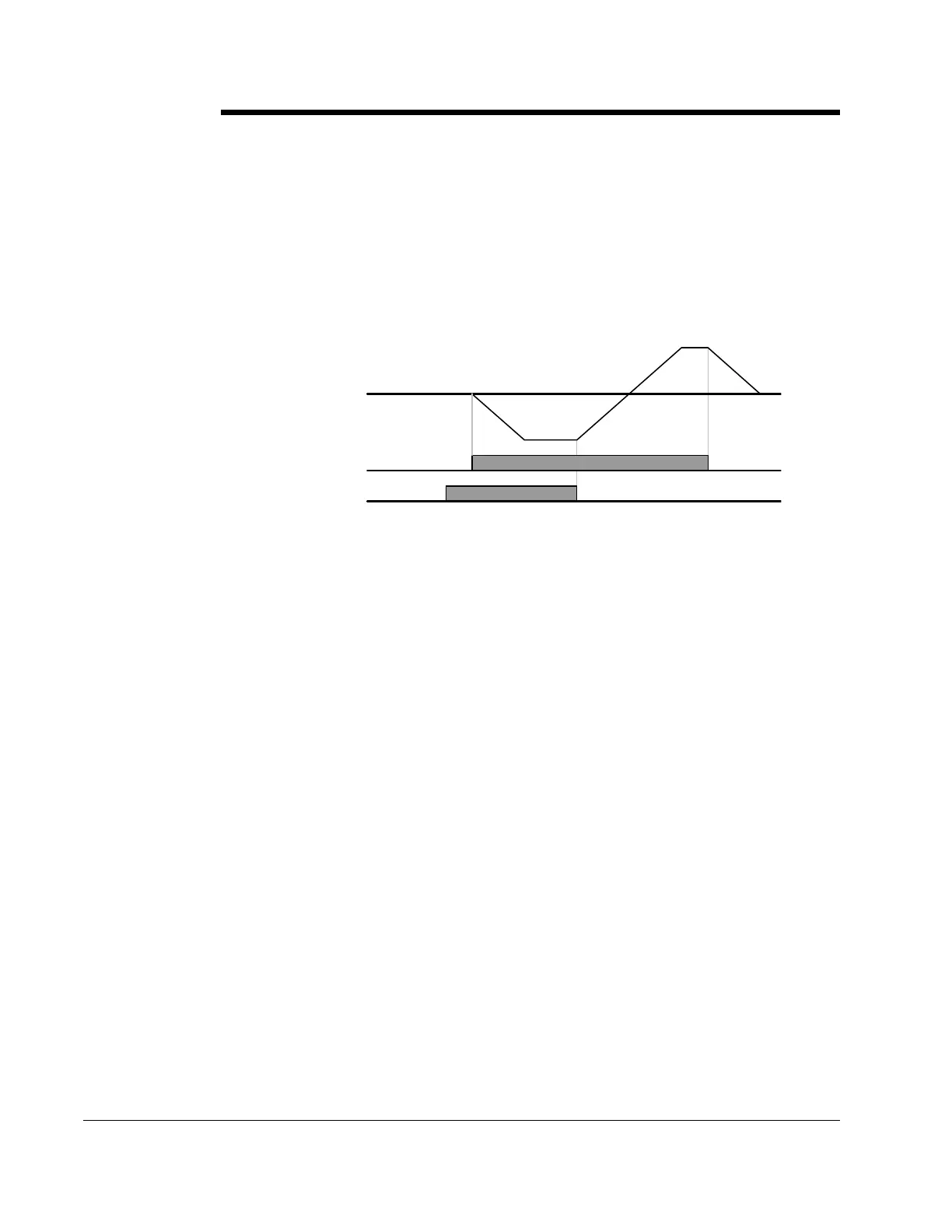

P38 Stop/Start Source
Run Digital
In (FX)
(RX)
Dive Output
Direction Digital In (RX)
To Next Page
