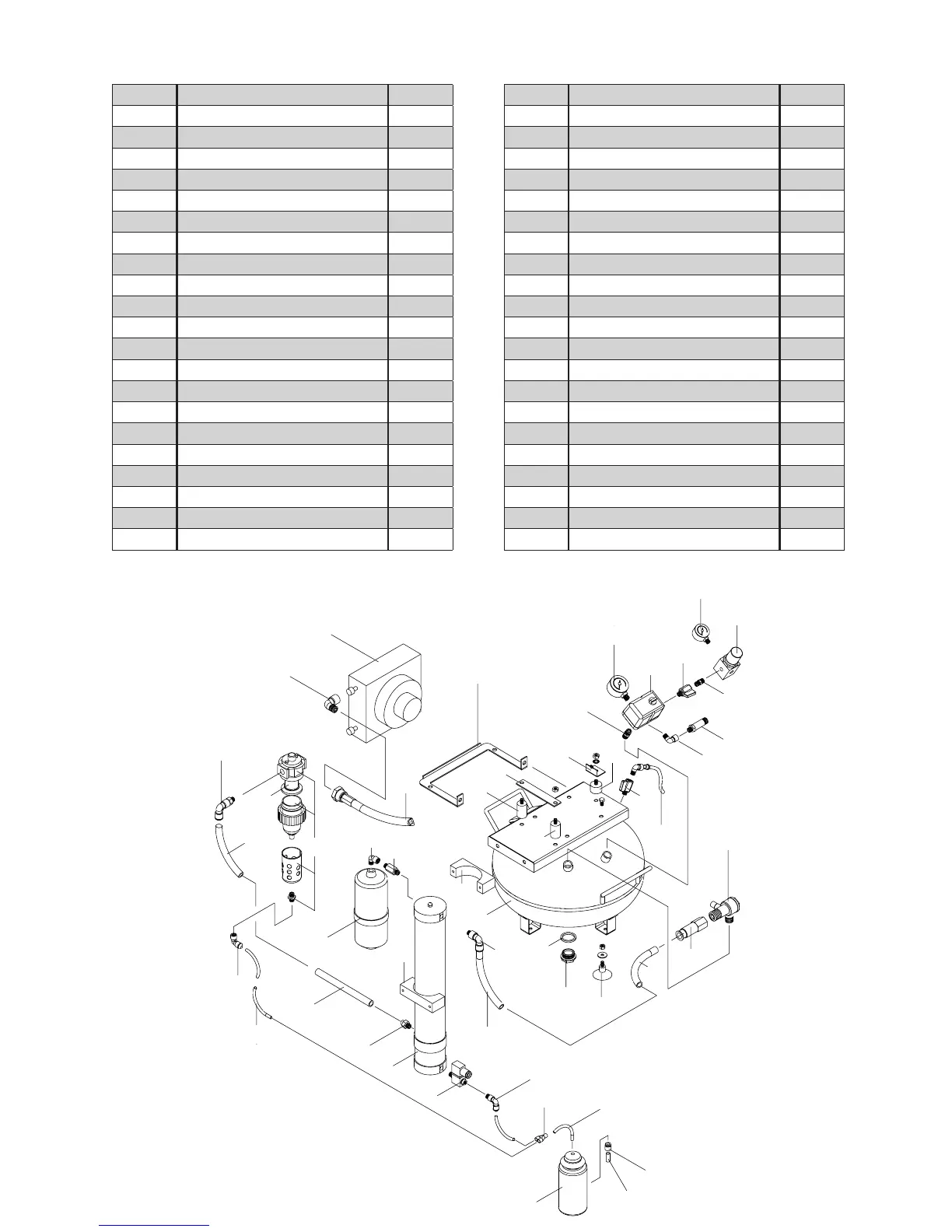

Bambi VT75 - VT75 D Parts Identification; VT75 D Exploded View and Part Numbers

1
3
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
2
4
40
41
42
32
10
4
6
4
10
10
43
17
9
VT75D
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm push tube fitting BPB0154
3 Condensate bottle - complete BPB0088
4 1.3m 6mm nylon tube BPB0203
5 6mm tube divider BPB0279
6 1/8 x 6mm elbow tube fitting BPB0044
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 10mm push tube fitting BPB0591
10 0.65m 10mm black nylon tube BPB0551
11 3/8 x 10mm tube swivel elbow BPB0277
12 Coalescing filter BPB0258
13 Coalescing filter element BPB0655
14 3/8 M/F elbow BPB0282
15 Aftercooler - complete BPB0560
16 Aftercooler mounting bracket BPB0557
17 40mm mounting rubber BPB0272
18 Motor mounting bracket BPB0321
19 Crankcase mounting bracket BPB0347
20 20mm mounting rubber BPB0273
21 Drain valve tap BPB0281
22 Red nylon drain tube BPB0284
23 3/8 x 10mm tube swivel elbow BPB0277
24 3/8 M adaptor BPB0283
25 50mm tank pressure gauge BPB0658
26 Pressure switch BPB0550
27 1/4 On-off tap Closing ring BPB1079
28 40mm line pressure gauge BPB0657
29 Pressure regulator BPB0510
30 1/4 M adaptor BPB1078
31 Safety valve BPB1084
32 1/4 M/F elbow BPB1139
33 Non-return valve BPB0656
34 3/8 x 10mm strainght tube conn. BPB0275
35 Rubber foot BPB0601
36 Inspection plug BPB0243
37 Inspection plug seal BPB0502
38 24 litre tank BPB0260
39 1/4 x 10mm Tube swivel elbow BPB0276
40 Dryer mounting clamp BPB0503
41 Purge tank bleed pipe BPB0775
42 Delivery pipe BPB0508
43 Purge tank BPB0484
