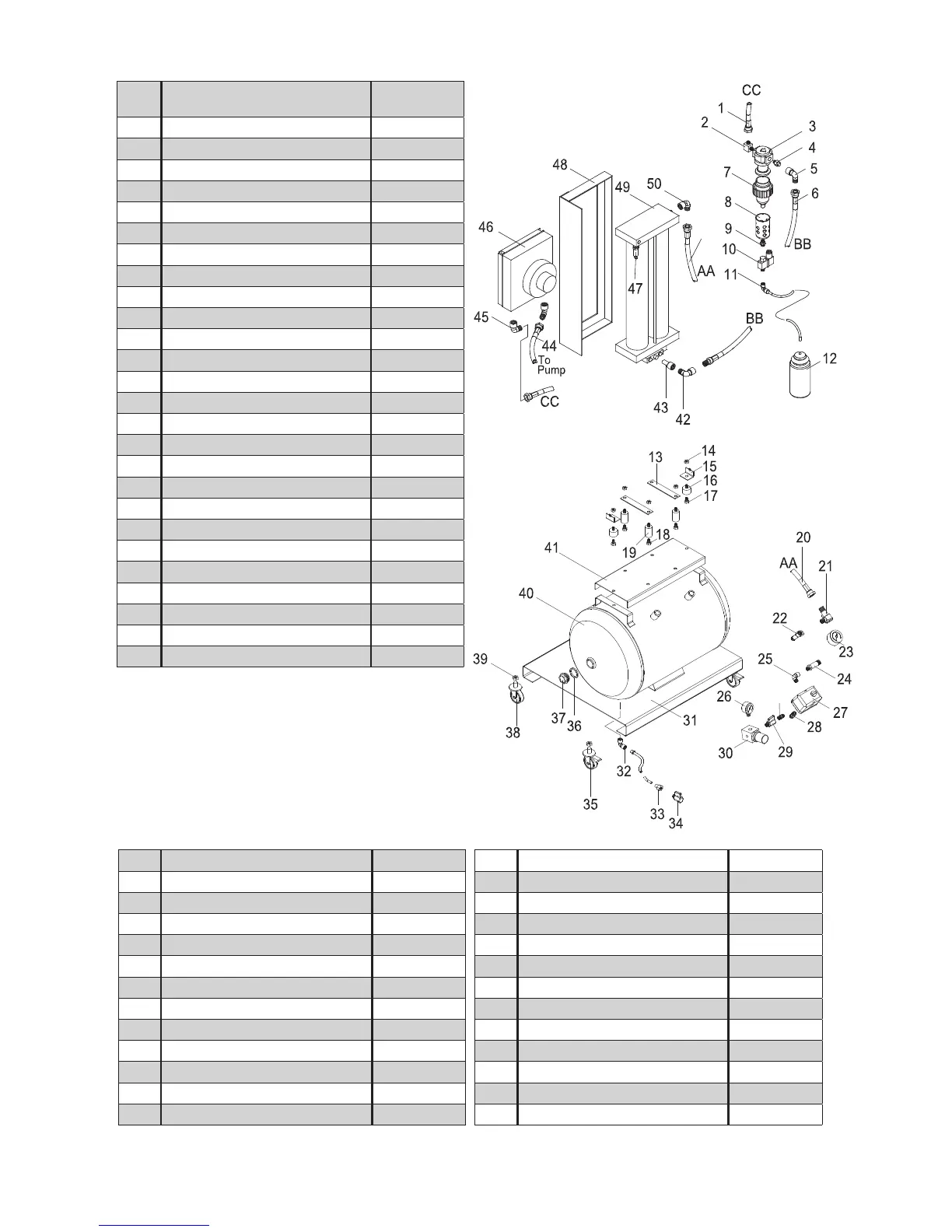

Bambi VT75 - VT250 D Parts Identification; VT250 D Exploded View and Part Numbers

20
VT250D
Ref
No.
Description Part no.
1 270mm delivery pipe BPB0858
2 3/8BSP M/F elbow BPB0614
3 Coalescing filter BPB0983
4 3/8BSP x 3/8BSP adaptor CP0713
5 3/8BSP M/F elbow BPB0282
6 185mm Delivery pipe BPB0357
7 Coalescing filter BPB0983
8 Coalescing filter BPB0983
9 Coalescing filter BPB0983
10 Solenoid valve / cable assembly BPB0545
11 1/8BSPF x 6mm tube elbow fitting BPB0278
12 Water bottle / black cap & cage BPB0088
13 Motor mounting bracket BPB0516
14 M8 Hex full nut BPB0161
15 Crankcase mounting bracket BPB0517
16 20mm rubber mount BPB0273
17 M8 Flanged nut BPB0130
18 M8 Hex full nut BPB0161
19 40mm rubber mount BPB0272
20 600mm delivery pipe BPB0798
21 3/8 x 3/8 Non-return valve BPB0656
22 3/8BSP M/F/F tee BPB0802
23 Pressure gauge BPB1081
24 Safety valve BPB1084
25 1/4BSPT M/F elbow BPB1139
26 Pressure gauge BPB0657
27 Pressure switch BPB0550
28 3/8BSP x 3/8BSP adaptor BPB0283
29 On/Off valve BPB1079
30
Pressure regulator
BPB0510
31 Base plate BPB0315
32 1/4BSPT M/F elbow BPB1139
33 1/4BSPMT x 1/4 i/d hose tail BPB1076
34 Drain valve BPB0895
35 Swivel castor with brake BPB0812
36 Inspection plug seal BPB0502
37 1BSP Flanged inspection plug BPB0243
38 Swivel castor BPB0811
39 M8 Hex full nut BPB0161
40 59ltr vessel BPB0230
41 Motor mounting bracket BPB0343
42 1/4BSPT M/F elbow BPB1139
43 1/4BSP M/F extension piece BPB0150
44 400mm Delivery pipe BPB0508
45 3/8BSP M/F plated elbow BPB0282
46 After-cooler c/w fittings and guard BPB0860
47 Safety valve BPB1084
48 After-cooler / dryer mounting brkt. BPB0330/0331
49 Twin tower dryer BPB0836
50 3/8BSP Outlet elbow BPB0629
51 1/4BSPMT x 1/4BSPMT adaptor BPB1078
17
51
