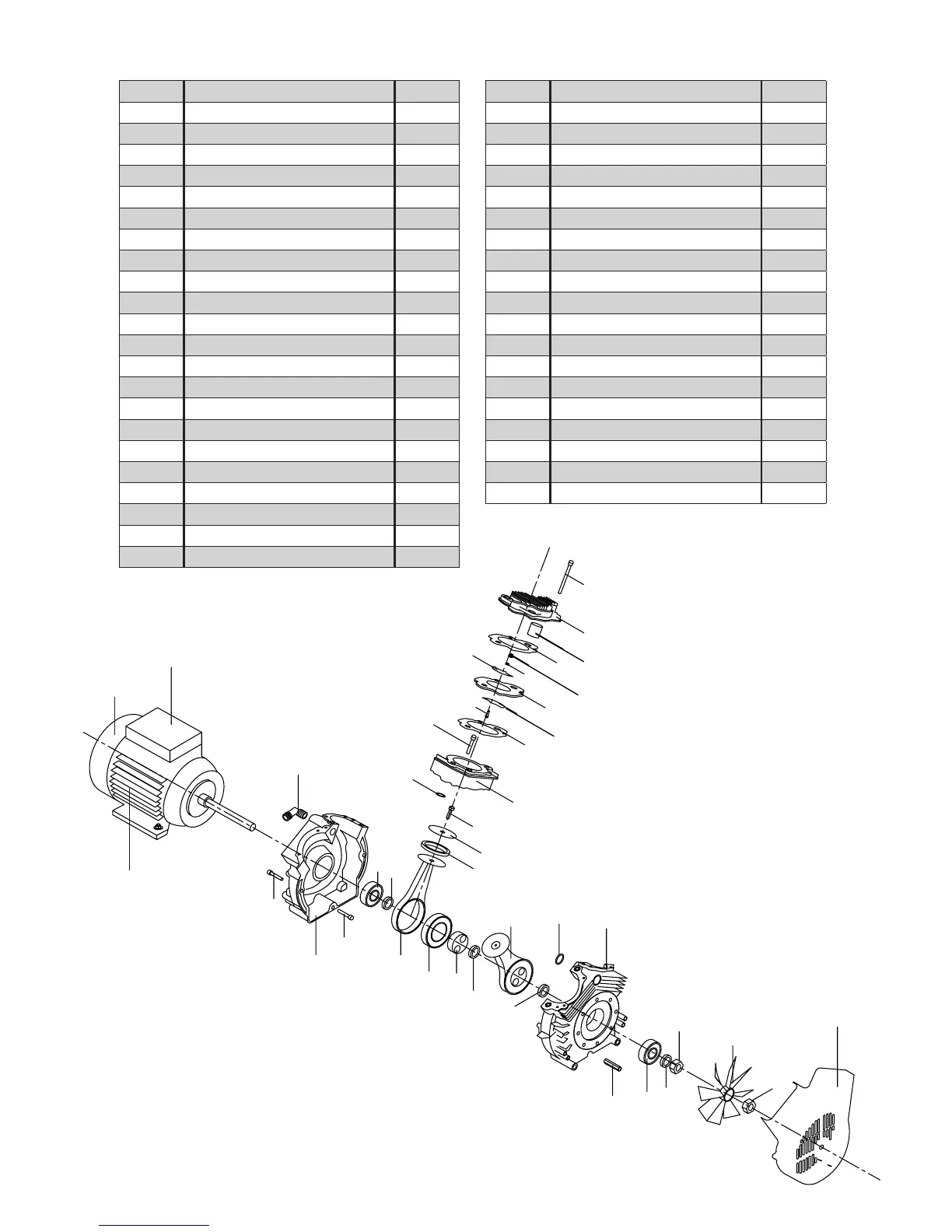

Motor / Pump Parts:
VT75 / VT75D / VT150 / VT150D / VT300/VT300D
Ref No. Description Part no.
1a Motor VT75 BPB0663
1b Motor VT150 BPB0664
2a 3/8 Elbow BPB0614
2b 3/8 Elbow BPB0654
3 Block fixing BPB0665
4 Block motor side BPB0666
5 Block screw BPB0667
6 Block bearing BPB0668
7 Short spacer BPB0669
8 Con rod BPB0670
9 Con rod bearing BPB0671
10 Eccentric BPB0672
11 Large spacer BPB0673
12 Block “O” ring BPB0674
13 Block fan side BPB0675
14 Stud bolt BPB0676
15 16mm washer BPB0677
16 M16 Nut BPB0678
17 Fan BPB0625
18 M16 Fan nut BPB0679
19 Fan cowling BPB0626
20 Cylinder head bolt BPB0680
21 Cylinder head BPB0681
22 Intake filter BPB0682
23 Cylinder head gasket BPB0620
24 Valve plate nut BPB0683
25 Valve plate washer BPB0684
26 Outlet valve strip BPB0685
27 Valve plate BPB0686
28 Inlet valve strip BPB0685
29 Valve strip bolt BPB0687
30 Valve plate gasket BPB0621
31 Cylinder bolt BPB0688
32a Cylinder VT75 BPB0689
32b Cylinder VT150 BPB0690
33 Cylinder “O” ring BPB0691
34 Top washer bolt BPB0692
35 Top washer BPB0693
36 Piston seal BPB0623
37a Capacitor VT75 BPB0695
37b Capacitor VT150 BPB0696
38 Motor fan cover BPB0618
