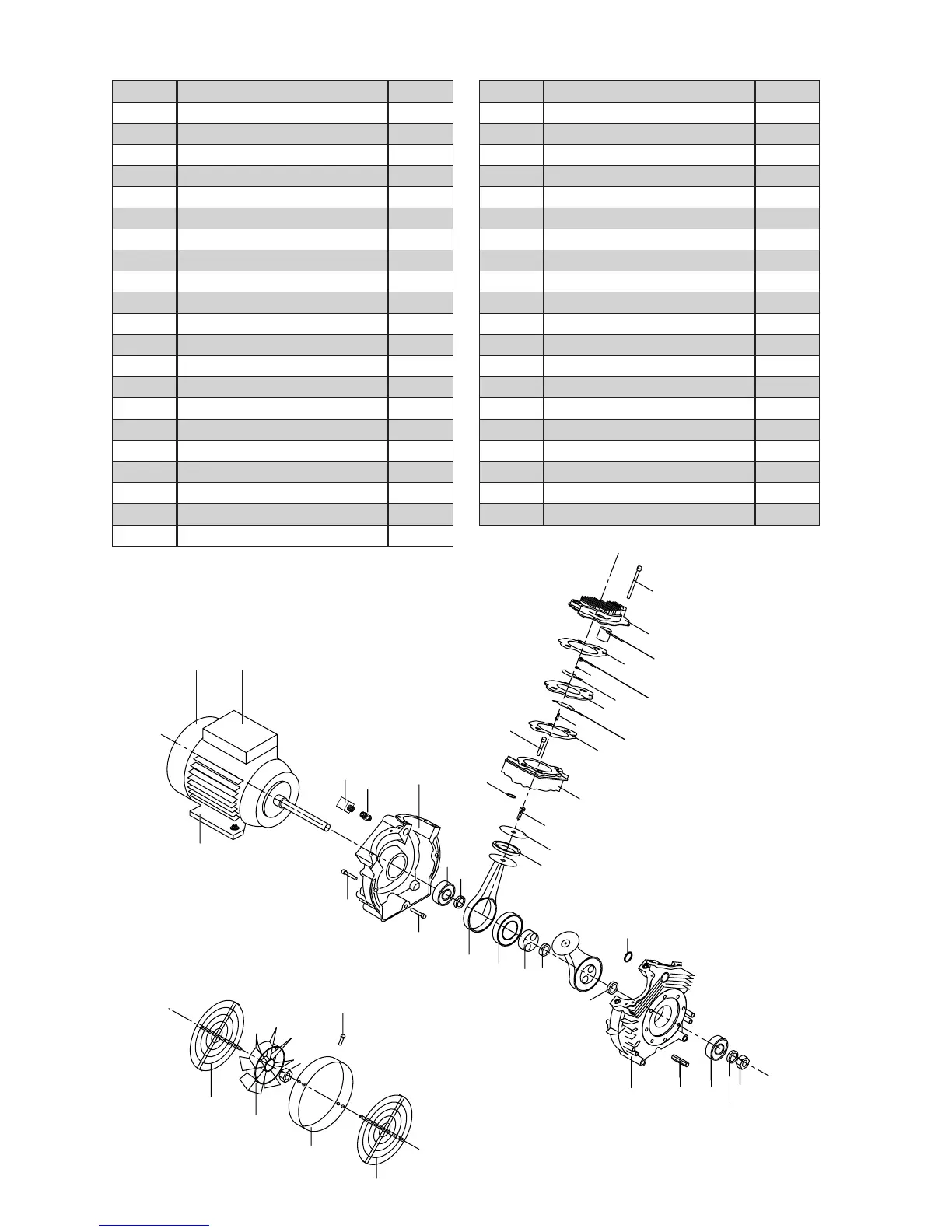

Motor / Pump Parts:
VT200 / VT200D / VT400 / VT400D
Ref No. Description Part no.
1 Motor VT200 BPB0697
2a Elbow BPB0614
2b 3/8BSP M/M Equal adaptor BPB0654
3 Block fixing BPB0665
4 VT200 Block motor side BPB0699
5 Block screw BPB0667
6 Block bearing BPB0668
7 Short spacer BPB0669
8 VT200 Con rod BPB0700
9 Con rod bearing BPB0671
10 Eccentric BPB0672
11 Large spacer BPB0673
12 VT200 Capacitor BPB0701
13 Block “O” ring BPB0674
14 VT200 Block fan side BPB0702
15 Stud bolt BPB0676
16 16mm washer BPB0677
17 M16 Nut BPB0678
18 Inner fan cover BPB0703
19 Fan BPB0704
20 M16 Fan nut BPB0679
21 Fan ring BPB0705
22 Fan cover fixing BPB0706
23 Cylinder head bolt BPB0680
24 Cylinder head BPB0681
25 Intake filter BPB0682
26 Cylinder head gasket BPB0620
27 Valve plate nut BPB0683
28 Valve plate washer BPB0684
29 Outlet valve strip BPB0685
30 Valve plate BPB0686
31 Inlet valve strip BPB0685
32 Valve strip bolt BPB0687
33 Valve plate gasket BPB0707
34 Cylinder bolt BPB0688
35 Cylinder VT200 BPB0708
36 Cylinder “O” ring BPB0691
37 Top washer bolt BPB0692
38 Top washer BPB0709
39 Piston seal BPB0710
40 Outer fan cover BPB0716
41 Motor fan cover BPB0619
