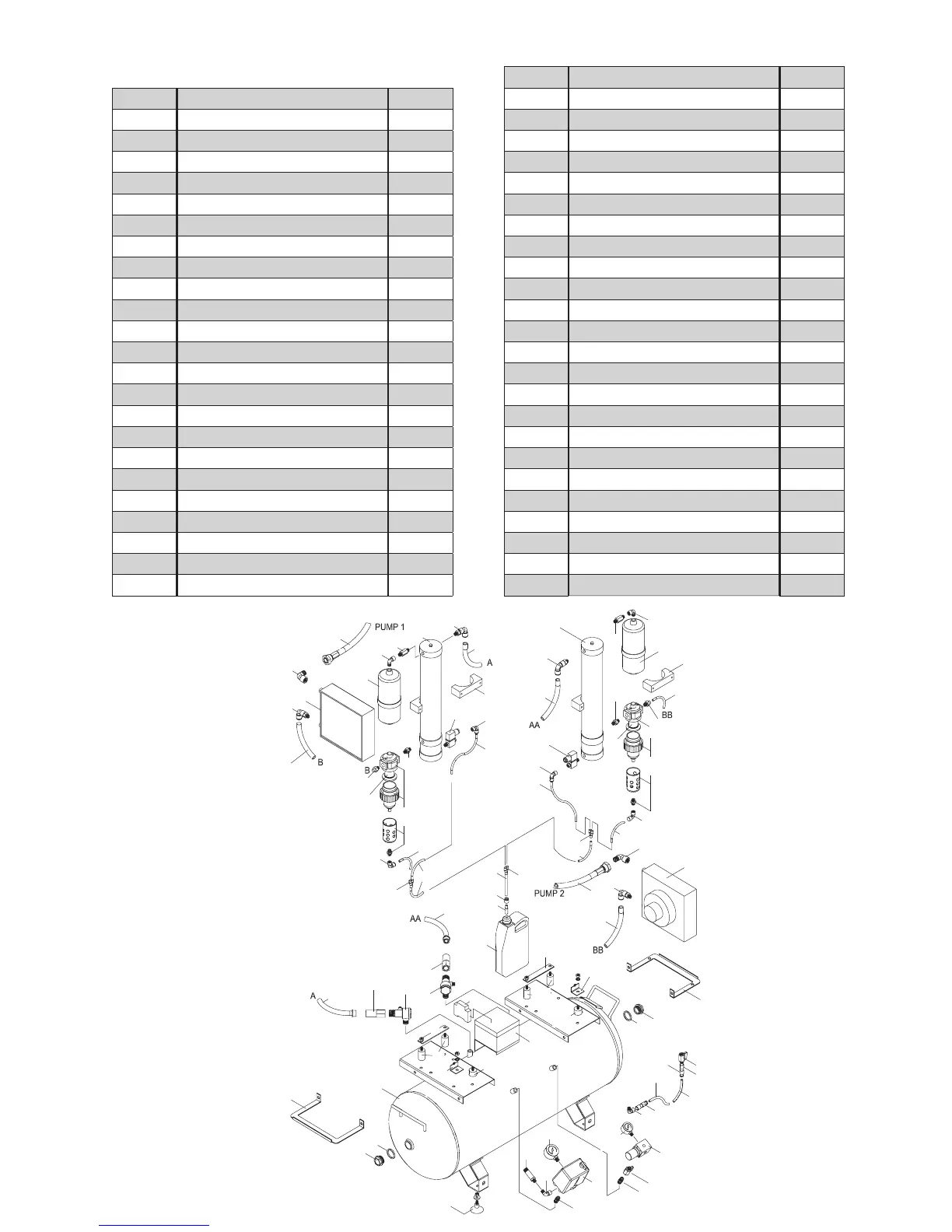

VT300D / VT400D
Ref No. Description Part no.
1 Aftercooler mounting bracket LH BPB0863
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 Rubber foot BPB0601
5 3/8 M adaptor BPB0283
6 1/4 M elbow BPB1139
7 Safety valve BPB1084
8 50mm Tank pressure gauge BPB0658
9 Pressure switch BPB0549
10 3/8 on/off tap BPB0535
11 Pressure regulator BPB0511
12 40mm Line pressure gauge BPB0657
13 3/8 M/F elbow BPB0282
14 3/8 x 1/4 Hose tail BPB0652
15 Drain tube BPB0199
16 Drain tube clamp BPB0200
17 Drain valve BPB0281
18 1.25m x 10mm Tube BPB0551
19 Aftercooler R/H BPB0561
20 3/8 x 10mm Swivel elbow BPB0593
21 Delivery tube BPB0508
22 1m 6mm Nylon tube BPB0203
23 6mm Tube divider BPB0279
24 1/8 x 6mm Elbow BPB0044
25 Coalescing filter BPB0258
26 Coalescing filter element BPB0655
27 1/4 x 3/8 Adaptor BPB0591
28 Dryer mounting clamp BPB0503
29 Purge tank BPB0484
30 Purge tank bleed pipe BPB0775
31 Dryer assembly BPB0548
32 1/4 x 10mm Swivel elbow BPB0276
33 Solenoid valve c/w cable BPB0545
34 3/8 x 10mm Connector BPB0275
35 Non return valve BPB0656
36 1/8 x 6mm Push fitting BPB0154
37 Condensate diffuser BPB0588
38 Condensate bottle BPB0587
