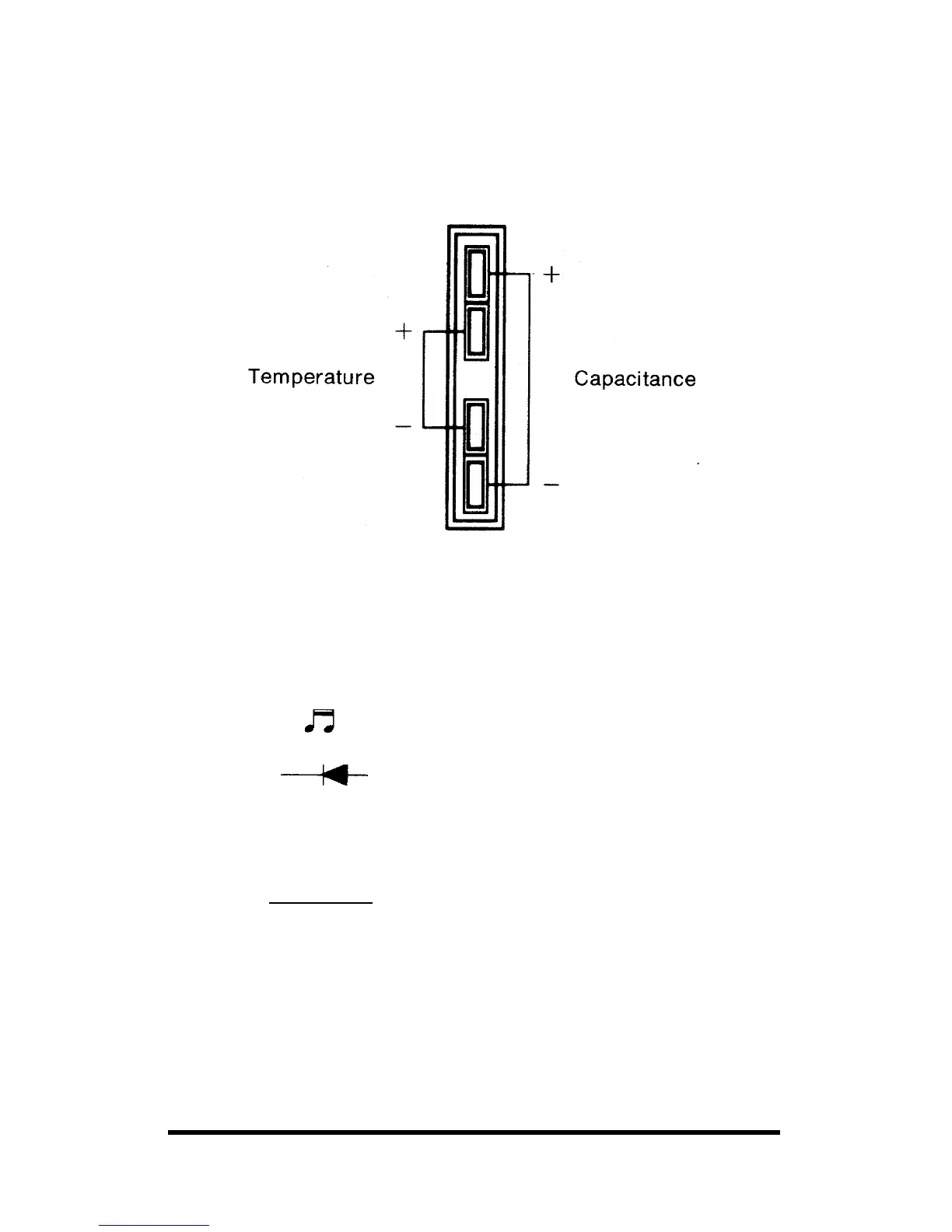

Insert the discharged capacitor into the CAP + and - clips connectors, as
marked.
Insert the optional K-type thermocouples into the correct sockets, as
marked.
9. FUNCTION SELECTOR ROTARY SWITCH
Item 9 describes functions that are selected by setting the rotary switch.
mV Millivolts ac/dc
V Volts ac/dc
mA Milliampere ac/dc
A Amperes ac/dc
Continuity
Ω
Resistance
Diode Test
FREQ Frequency
CAP Capacitance
hFE Transistor
TEMP Temperature
HIGH
HOW
Logic Test
dB Decibel
