5-3. Input Terminals
Items 10-13 describe the input terminals (See Table 1 for overload limits.)
10. 20A Amperes Input Terminal
For current measurements (AC or DC) up to 20A when function selector
switch is in the 20A position.
11. mA Milliamp Input Terminal
For current measurements up to 200mA (AC or DC) when the function
selector switch is in the mA position.
12. COM Common Terminal
Return terminal for all measurements.
13. V/
Ω
ΩΩ
Ω
Continuity, Diode, Ohms, Volt, Frequency, dB, Logic Test Terminal.
5-4. Digital and Bar Graph Displays
Items 14-16 & 17 describe the digital and bar graph displays.
14. Digital Display
Digital readings are displayed on a 1999-count display with automatic
polarity indication and decimal point placement.
15.

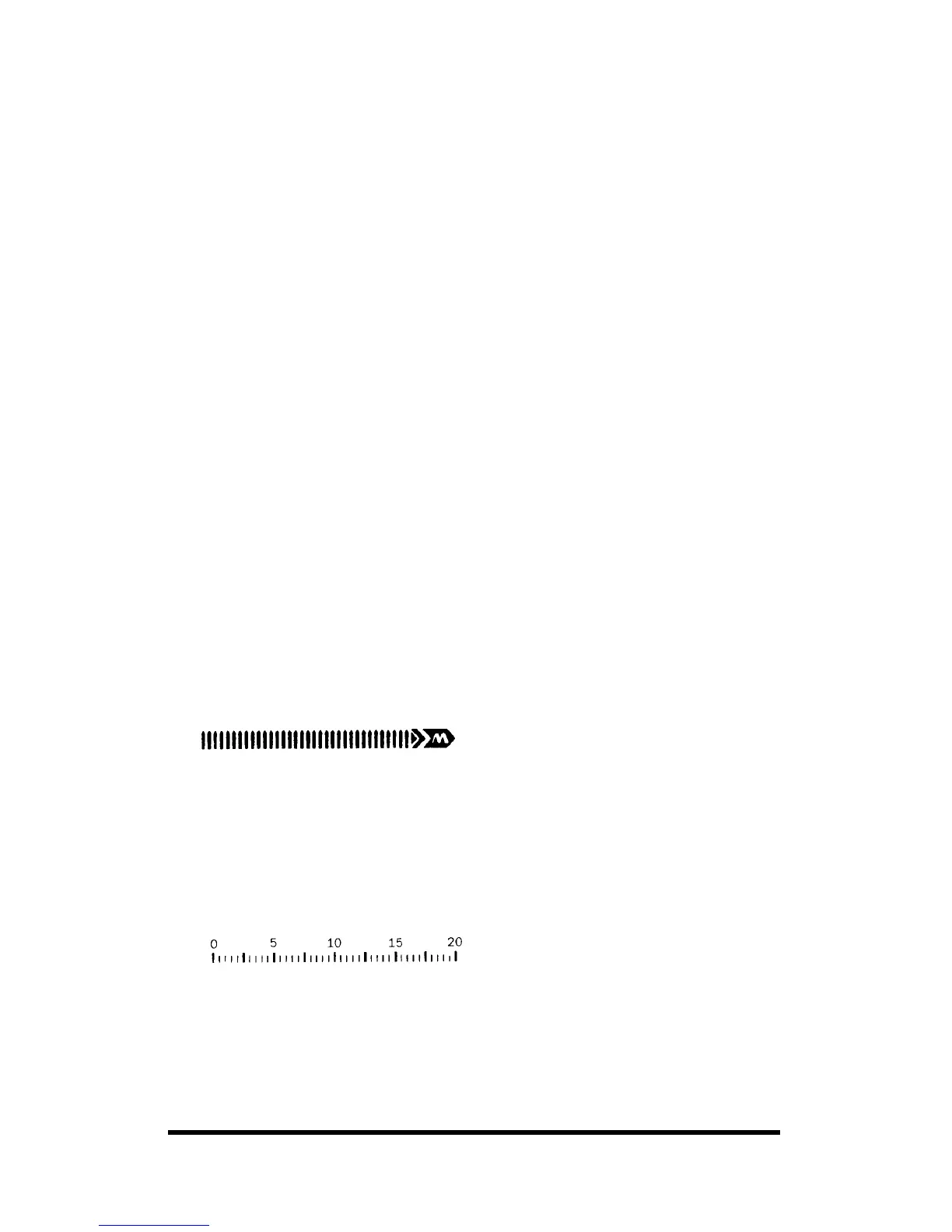

Analog Bar Graph
The bar graph consists of 23 segments that illuminate from left to right as
the input increases.
It functions much the same as the needle on an analog meter without the
mechanical overshoot inherent in needle movements.
If the input equals or exceeds 1,999 counts on the range selected, OL is
displayed with flashing in the Bar-graph.
16.
Bar Graph Scale
Scale for absolute readings.
