Data Format
The data format consists of a frame of 14 bytes. The frames are set as
follows:
BYTE) 1 2 3 4 5 6 7 8 9 A B C D E
Example 1) D C —1 . 9 9 9 V CR
Example 2) 1 . 9 9 9 Mohm CR

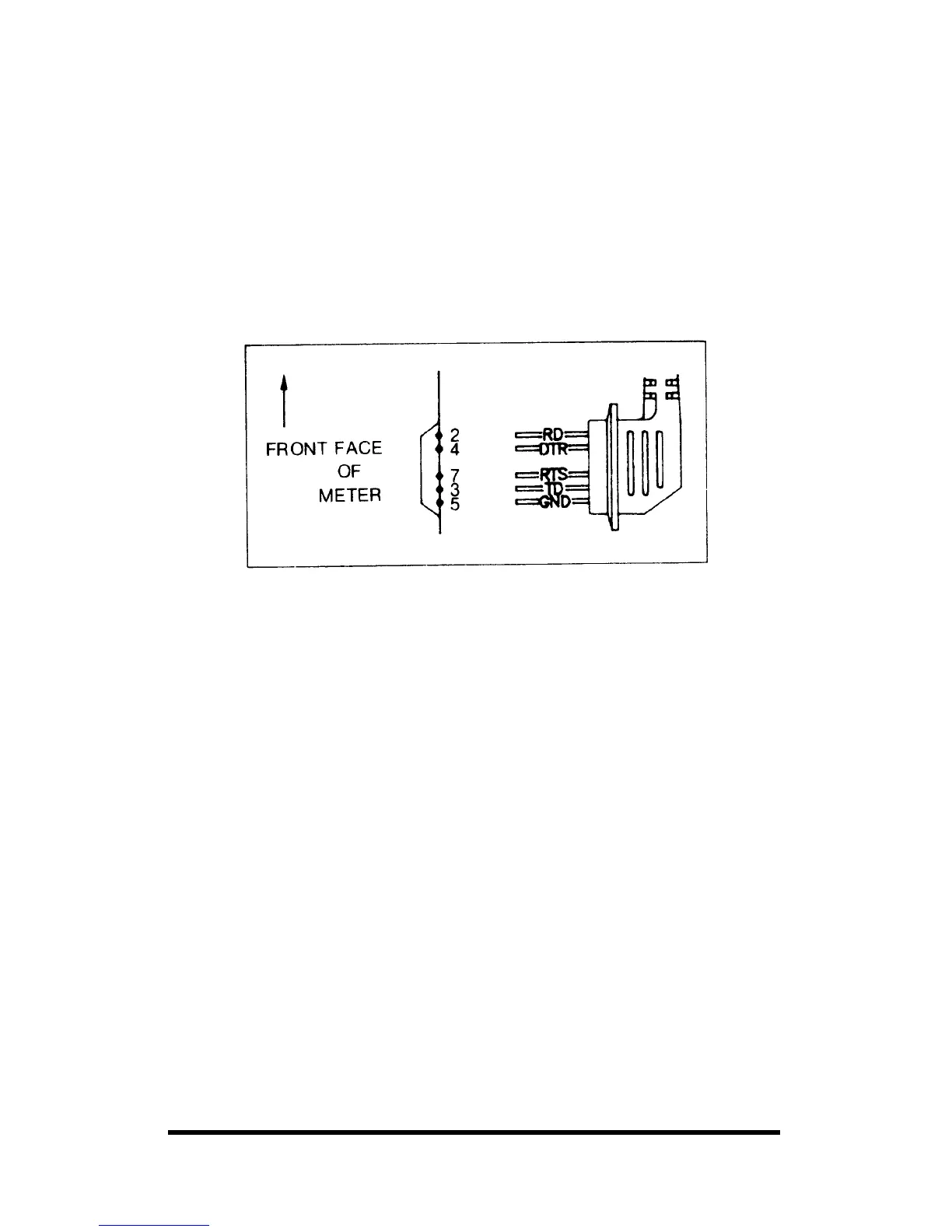

Connection of MT/RS - 232C cable to the meter.
The following program is an example of a BASIC program that gets a
single reading from the meter:
10 OPEN"COM1: 1200, N, 7, 2, RS, CS, DS, CD" AS #2
20 A$ = “D”
30 PRINT #2, A$
40 IN$=INPUT$ (14, #2)
50 PRINT IN$
60 CLOSE #2
70 END
