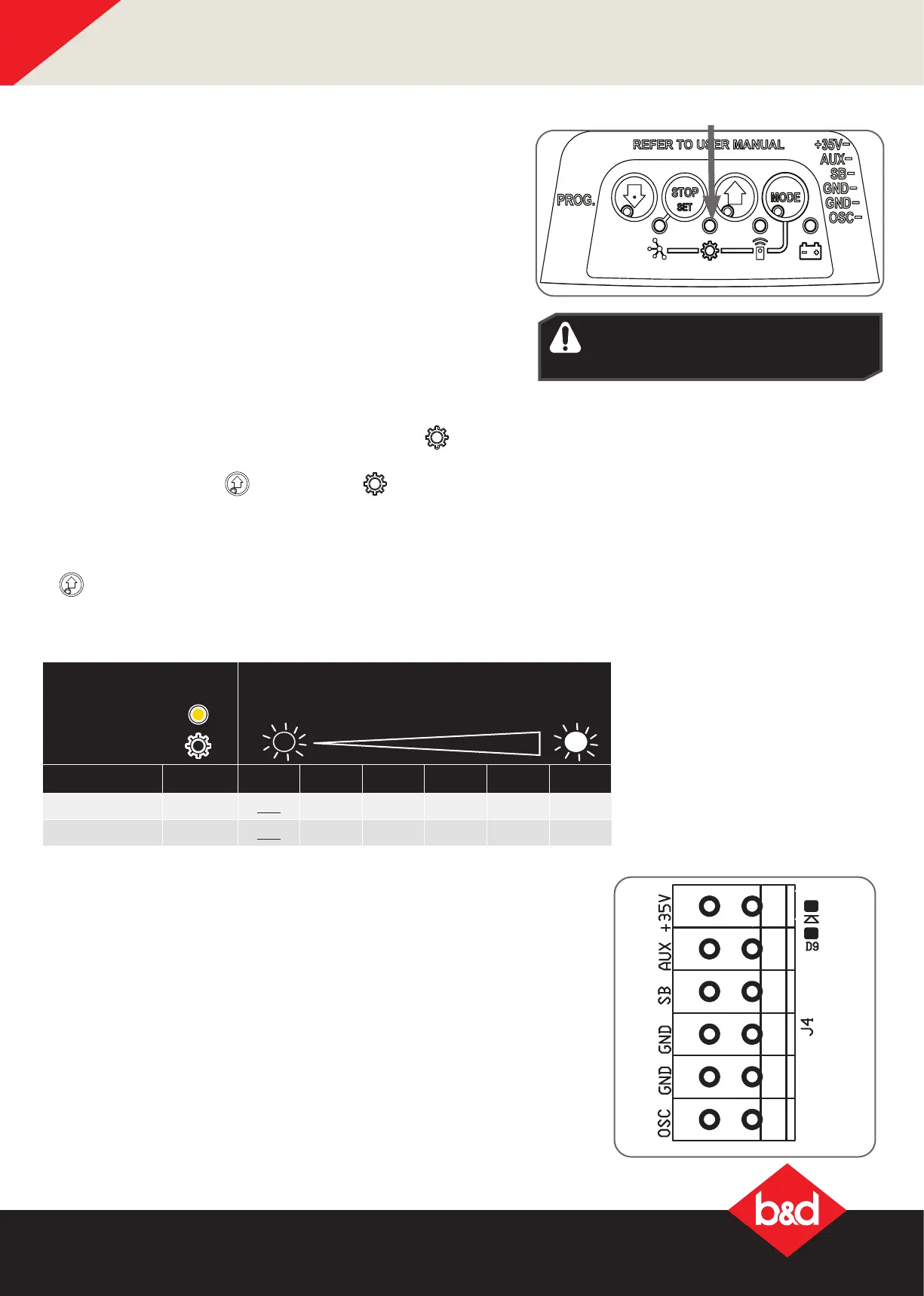

14. Auto-Close & Accessories
WARNING! It is compulsory to have
Safety Beams installed when using
Auto-Close mode.
14.1 Auto-Close
Auto-Close mode is a function that automatically closes the door
after a pre-set time. Safety beams must be installed in order to
run the Auto-Close function. There are two types of Auto-Close
available:
i. Standard auto-close - the door will Auto-Close after a
programmed time. In this mode the timer starts to countdown
as soon as the door is fully open. This function is useful in
case the safety beam does not get triggered.
ii. Safety Beam triggered auto-close - the door will auto-close
after a programmed time. In this mode the timer starts
counting down only when the safety beam is triggered. ie
car leaving the garage.
To enable the Auto-Close function:
a. Press the MODE button repetitively until the GEAR
LED starts
ashing.
b. Press the OPEN button
until the GEAR LED ashes:
i. two (2) times to get to PE auto-close or
ii. three (3) times to get to standard auto-close.
c. Press STOP / SET button to enter parameter.
d. The default setting for Auto-Close is OFF. Press the OPEN button
to move through options and the light’s brightness will
change accordingly.
e. Press STOP / SET button to save the parameter’s new value or
press MODE to leave the value unchanged.
14.2 Terminal Block
Wired accessory items can be connected to the terminal block J4.
Terminal connections from top down are as follows:
a . +35V (Auxillary)
b. AUX (Auxillary)
c . SB (Safety Beam input, mandatory);
d . GND (Common ground for accessories and Safety Beam);
e. GND (Common ground)
f. OSC (Open/Stop/Close trigger)
14.3 Connecting or Disconnecting Accessories
When disconnecting or reconnecting accessory base station
modules (Wireless PE Beams) press the MODE button on the opener
repetitively until the GEAR LED is on, then press the STOP / SET button
until the main courtesy light stops ashing.
NOTE: If an Auto-lock is installed ensure that the channels on the
transceivers on each device are different. The channel on the
transceiver can be changed by sliding the switch in either direction
Parameter Value options = Indicated by brightness
of main light
(DEFAULT parameter underlined)
Name Flashes 1 2 3 4 5 6
PE AUTO-CLOSE x2 OFF 15sec 30sec 60sec 90sec -
AUTO-CLOSE x3
OFF 15sec 30sec 60sec 90sec 120sec
