Smart Pro installation instructions

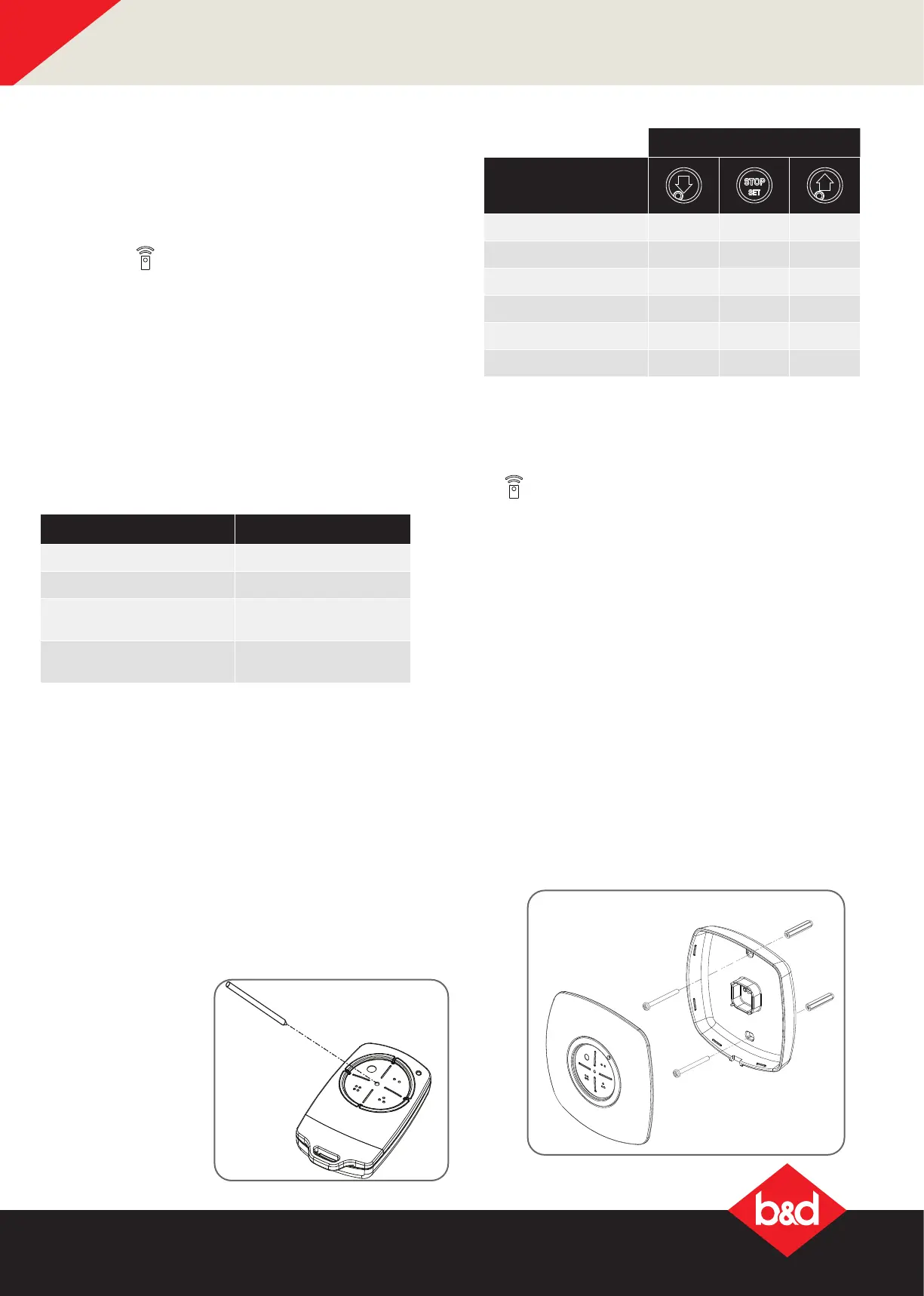

15. Coding a Transmitter
15.1 Storing the Transmitter Code
The opener can only be operated from remote control
transmitters that have been programmed into its
memory. Up to 64 codes can be stored in the memory.
a. Press the MODE button repetitively until the
TRANSMIT
LED is lit.
b. Press and HOLD the button/s indicated in the table
to set the required transmitter function. The opener
will start to ash rapidly and beep.
c. Press one of the four (4) buttons on the transmitter
until the beeper and main light starts to ash rapidly,
then release transmitter button.
d. Press the remote control button again until the
main light stops ashing rapidly.
e. Release both buttons. Press the MODE button to exit.
The transmitter button is now coded, press to test.
NOTE: Refer to the Light indicator table for the details
of the transmitter status.
BUTTON
TRANSMITTER
FUNCTION
Open / Stop / Close HOLD
PET (Pedestrian) Mode HOLD
Open HOLD
Light HOLD HOLD
Vacation Mode HOLD HOLD
Aux Output HOLD HOLD
* The button coded for open only function can close the door if
you hold the button for 4 seconds, when the door is fully open..
MAIN LIGHT & BEEPER TRANSMITTER STATUS
Light ON & 2 short beep Button added
Light OFF & 2 short beep Button removed
Light 2 FLASHES, then OFF &
2 long beeps
Remote control deleted
4 FLASHES, then OFF & 4
long beeps
Memory full
15.2 Remotely Coding Transmitters
Using this method transmitters can be coded without
access to the opener’s control panel as long as a
pre-coded transmitter is available.
a. Take any pre-coded transmitter. Press the button for
the function to be duplicated and release.
b. Using a small needle / pen, press and hold rmly for
two seconds the middle button, through the Coding
Hole until the unit starts ashing and beeping.
c. Within ten (10) seconds take the additional
transmitter you wish to code. Hold the new
transmitter’s button for two seconds the unit will
ash and beep faster, then release for two seconds
d. Press and hold again for two seconds until the
ashing and beeping stops and then release.
e. The opener will
falsh and beep
to indicate result.
(see table above)
f. Wait for ten (10)
seconds and
then press the
new transmitter’s
button to test.
15.3 Erasing All Transmitter Codes
a. Press the MODE button repetitively until the TRANSMIT
LED is lit.
b. Press and hold the MODE button for 10 secs, let the
MODE button go when the beeper and main light
stops ashing.
c. Follow steps a - e in Storing the Transmitter Code to
code new transmitters.
15.4 Vacation Mode
a. To turn on Vacation mode and lock out all remotes,
press the button on the remote programmed with
Vacation Mode for 4 seconds.
To turn off Vacation Mode, press the transmitter button
programmed to vacation mode to turn off.
15.5 Installation of the Wall Mounted Transmitter
a. Store the transmitter code as per instructions in 15.1
and 15.2.
b. Test the transmitter button.
c. Mount the transmitter in a convenient location, yet
out of reach of children and at least 1.5m off the
ground.
d. Make sure the door is visible from this location.
