20. User Operating Controls
05
06 07
01
02
03 04

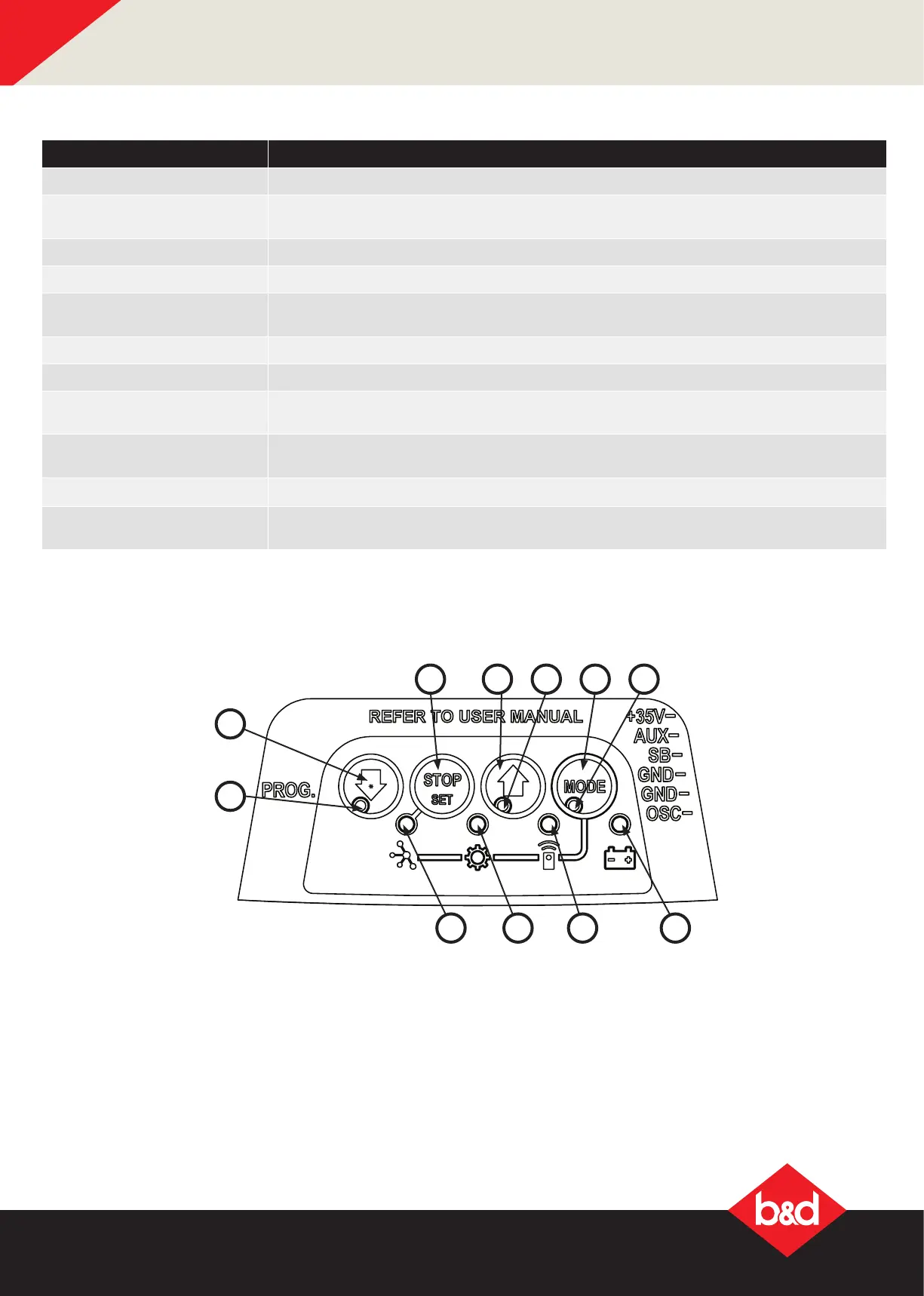

Button Function
1. DOWN ARROW (Blue) Closes the door
2. DOWN ARROW LED (Blue) Illuminates when the door is closed and ashes when the door is obstructed on close or
stopped.
3. STOP/SET (Red) Stops the door
4. UP ARROW (Green) Opens the door
5. UP ARROW LED (Green) Illuminates when the door is open and ashes when the door is open with the auto-close
timer running, obstructed on opening or stopped.
6. MODE (Yellow) Enables Load Diagnostics Mode
7. MODE STATUS LED (Yellow) Illuminates when in Diagnostics Mode
8. BATTERY STATUS LED (Yellow) Illuminates when battery is charged and ashes when battery is charging, in use or battery
failed.
9. REMOTE CONTROL
STATUS LED (Red)
Flashes on remote lockout and ickers on remote control activity
10. ADJUSTMENT LED (Yellow) Flashes a certain number of times depending on the parameter being changed.
11. NETWORK LED
(Red, Blue, Purple)
Is a dual colour LED. Illuminates purple when hot spot active, blue when connected to cloud
and red when in production mode. Flashes different colour depending on the activity.
