Smart Pro, Smart & Secure installation instructions
14.2 Terminal Block

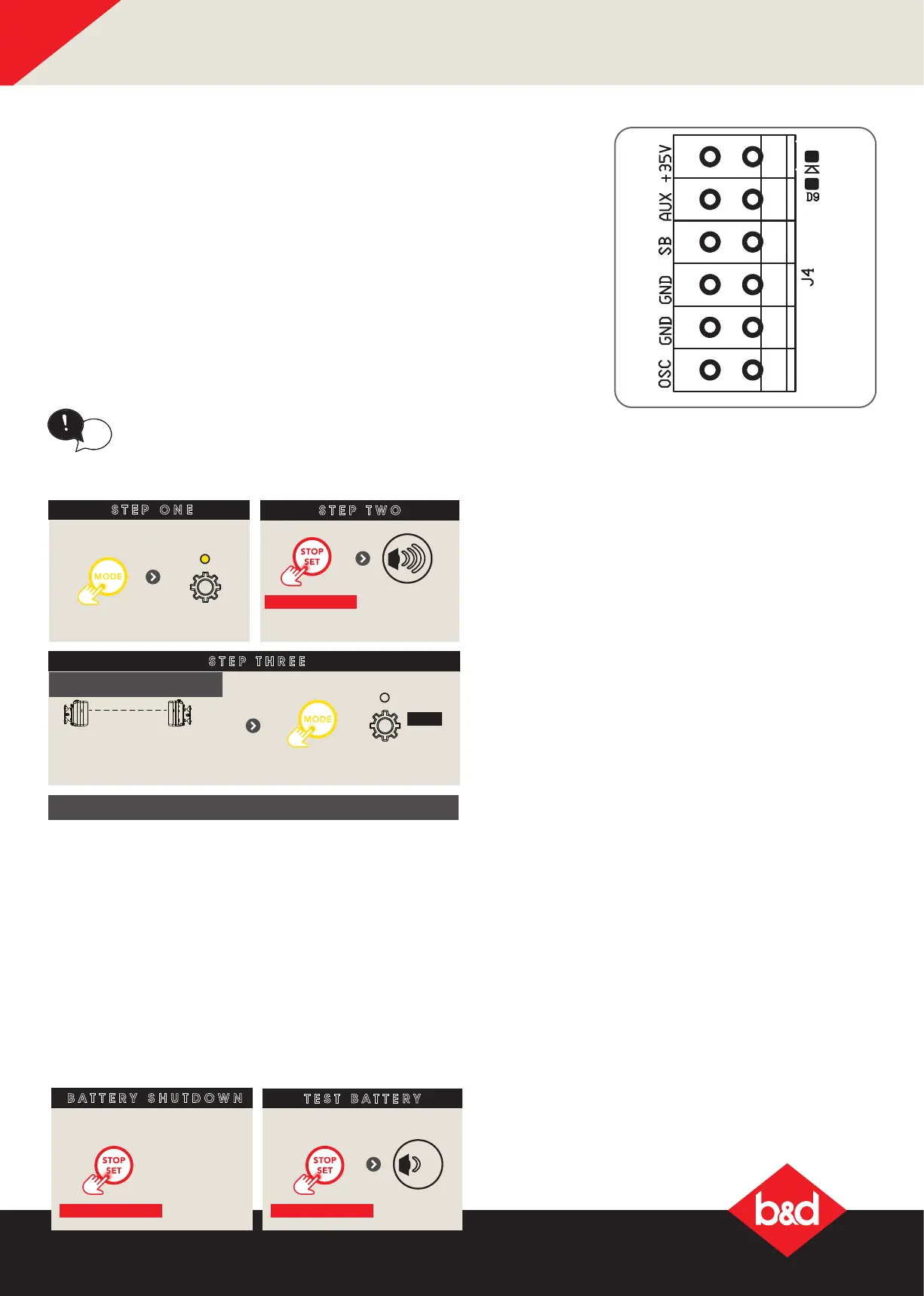

Wired accessory items can be connected to the terminal block J4.
Terminal connections from top down are as follows:
a . +35V (Auxillary)
b. AUX (Auxillary)
c . SB (Safety Beam input, mandatory);
d . GND (Common ground for accessories and Safety Beam);
e. GND (Common ground)
f. OSC (Open/Stop/Close trigger)
14.3 Connecting or Disconnecting Accessories
The opener can hold up to 4 accessories. For example Secure;
• Auto-Lock
• Wireless PE Beams
• Smart Hub
If an Auto-lock and Wireless PE Beams are both installed
ensure that the channels on the base stations on each
device are different. The channel on the base station
can be changed by sliding the switch in either direction
tip
STEP ONE
STEP TWO
STEP THREE
Remove controls cover
till gear
LED lit
Press
repeatedly
CONNECT OR DISCONNECT ACCESSORIES
Alignment Mode is
entered.
Ensure Alignment.
For PE Beams
HOLD for 2 secs
till
3 beeps
are heard
OFF
Then replace controls cover
Re-registering is required every time an accessory is removed.
14.4 Battery Backup (Optional for Smart & Secure)
When installed, Battery backup keeps the opener functional
when mains power is turned off, however note the following;
i. Phone app (if installed) operation will depend on the
availability of Wi-Fi connectivity
ii. Limit setup is not available when running from batteries.
iii. Battery backup will not be activated if the PG3 has
connected to the opener 60 secs prior to mains power
being turned off. This is to allow a reboot to take place
without having to shutdown battery backup.
iv. Battery backup will not be activasted if a fault is active
prior to mains power being tunred off. This allows opener
power to be cycled to reset fault.
BATTERY SHUTDOWN
TEST BATTERY
When under battery power
HOLD for 10 secs
To manually
shutdown
opener
When under mains power
HOLD for 4 secs
till
beep
