B&D Smart Pro SDO-9V3 - Kit Contents Overview; Opener Positioning

6
Smart Pro, Smart & Secure installation instructions

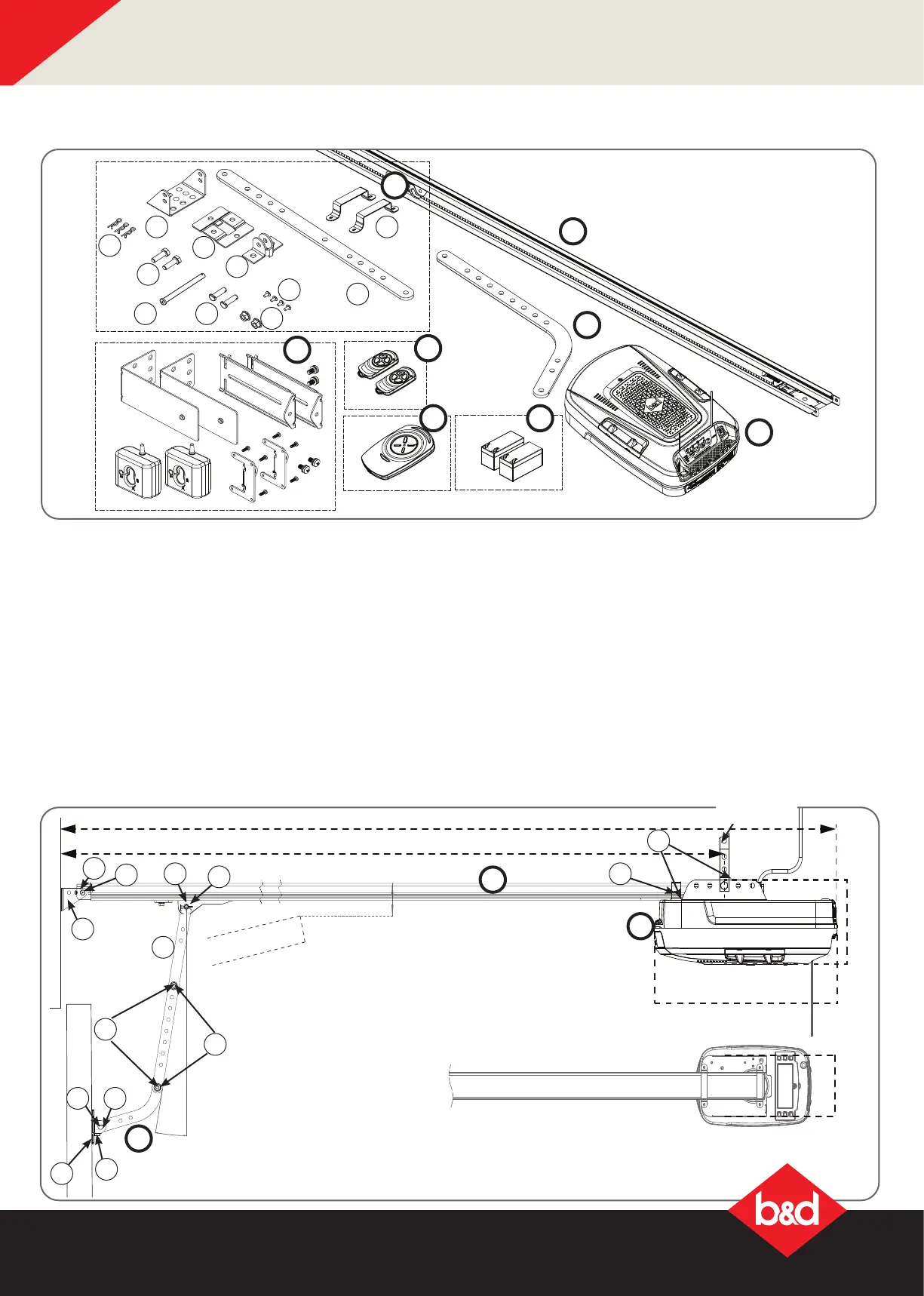

4. Kit Contents
1. 1 x SDO drive unit
2. 1 x Bent arm door attachment
3. 2 x Battery kit (Smart Pro only)
4. 1 x Wall Transmitter
5. 2 x Transmitters
6. 1 x Safety Beam Kit
(Smart & SmartPro only)
PLUS
7. 1 x Track Hardware Kit
8. 1 x Pre-Assembled track
10.00°
min
MINIMUM HEAD
ROOM FOR
RAIL 57mm
DOORS HIGHEST
POINT
3156mm*
3374mm
150mm
353mm
Rail no Extension Kit 3156mm
Rail + 1 Extension Kit 3946mm
Rail + 2 Extension Kits 4736mm
* Rail refers to 3160 rail
170mm
1
8
2
5. Position
Perforated
Angle
The Opener:
a. MUST BE installed in a dry position, protected from weather.
b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener.
c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling.
d. Use the diagram below as a reference when completing the installation.
1
2
34
5
6
7
8
7a
7b
7c
7d
7e
7f
7g
7h 7i
7j
7k
7b
7d
7c
7f 7i
7h
7f
7e
7j
7g
7f
7i
7a
7k
