B&G LCD CHART - Routes

B&G LCD Plotter
Part 2 - Operating Information
HB-0847-02
2-15

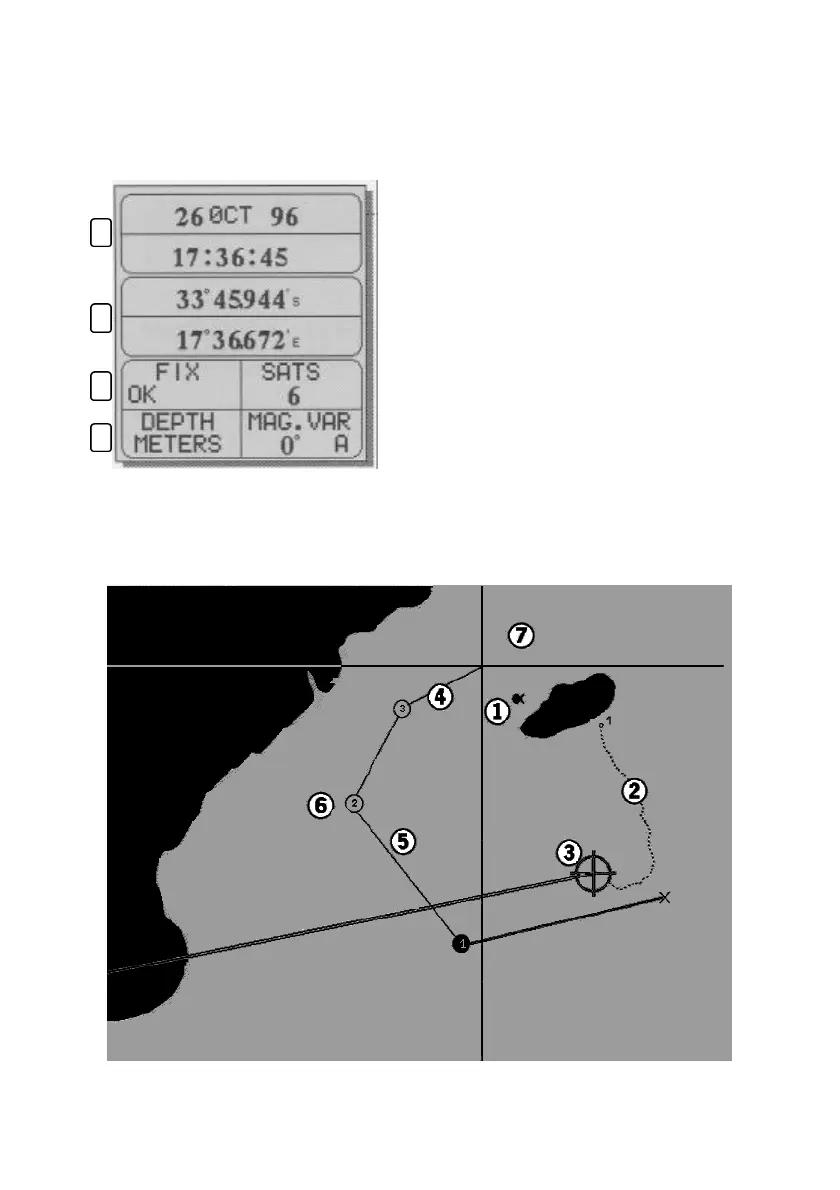

2.12.3 Data Window
2.13 ROUTES
2.13.1 Route Elements
a
b
c
d
Displays information of the current
position of the boat (active only when the
GPS is connected).
a) -
Day, month, year, local or Greenwich
Mean Time
b) - Boat position
c) -
GPS Status and number of satellites.
This will be replaced with DIFF if
interfaced to a GPS Differential system.
d) - Units of depth measurement, value of
magnetic variation and method used
