B&G LCD Plotter
Part 3 - Installation Information
HB-0847-02
3-4

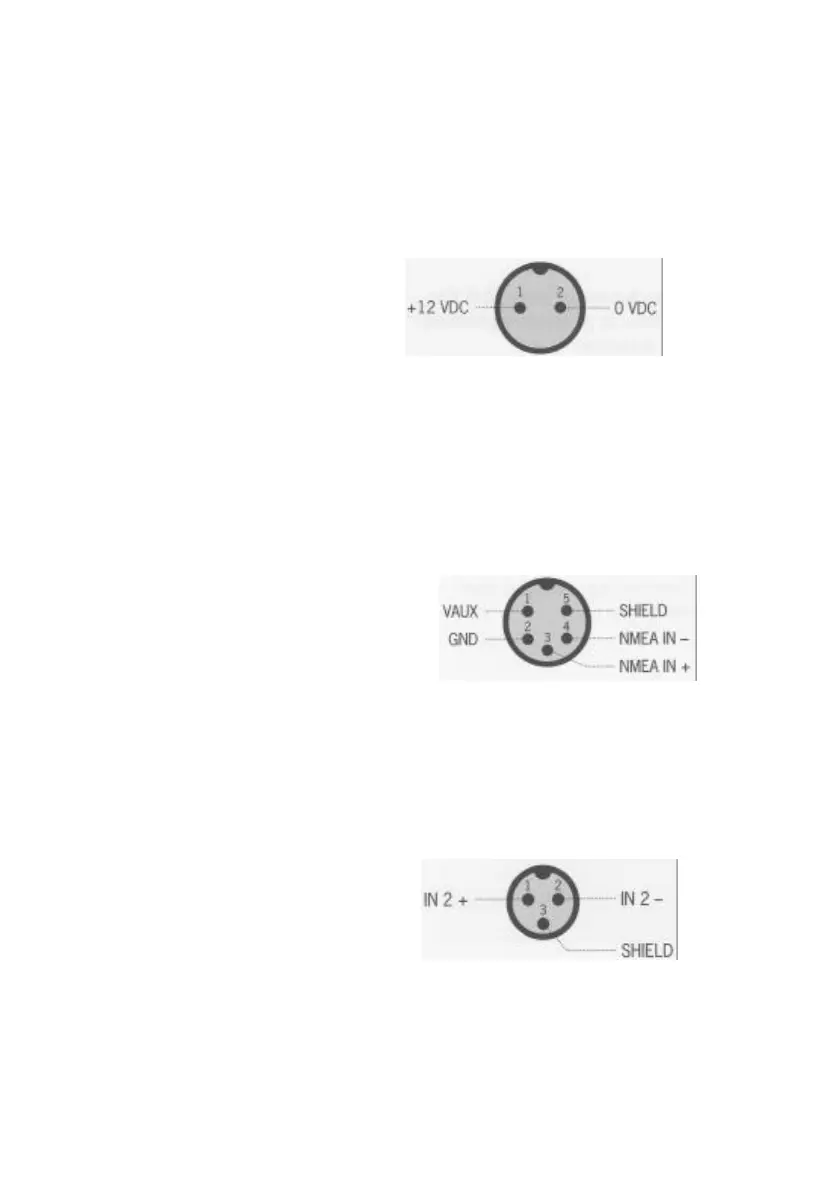

3.5.1 Power
External power connection for the LCD Plotter. One cable is supplied as
standard.
Cable: N1000212
Red: +12 VDC
Black 0 VDC (GND)
3.5.2 Data In 1
Through this port, the instrument receives data from the GPS and
supplies external power (12V, 250mA max.). This supply is switched by
the ON/OFF button on the unit and may be used to power GPS
antennas. Sentences decoded: DBT, GGA, GLL, GSV, HDM, MTW,
MWD, RMA, RMC, VDR, VHW, VLW, VTG, VWR, VWT, ZDA
Cable: N1000231
Red: VAUX+
Black: VAUX- (GND)
Brown: NMEA INPUT+
Yellow: NMEA INPUT-
3.5.3 Data In 2
Optional auxiliary NMEA input port for NMEA messages transmitted by
the instrument system. Sentences decoded: DBT, GGA, GLL, GSV,
HDM, MTW, MWD, RMA, RMC, VDR, VHW, VLW, VTG, VWR, VWT,
ZDA
Cable: N1000221
Violet: NMEA INPUT+
White: NMEA INPUT-
