Method Action Result
SET Button Present ON and OFF conditions Display: Red - Signal Level; Green -
Threshold
Remote Input Present ON and OFF conditions

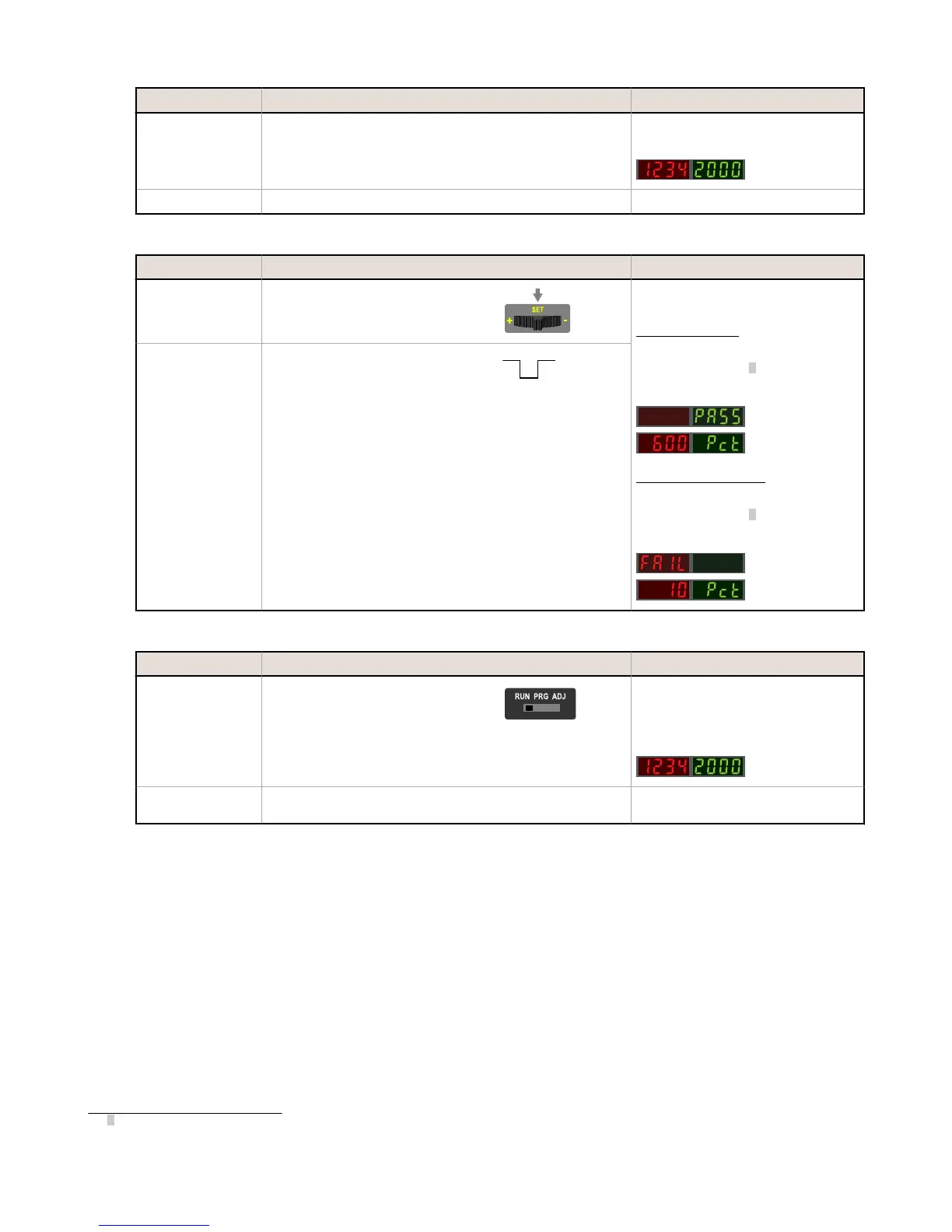

4. Exit Dynamic TEACH.
Method Action Result
SET Button Click the SET rocker button TEACH Accepted
Displays alternate "PASS" with %
Minimum Difference
7
, Sensor returns
to Adjust mode
TEACH Not Accepted
Displays alternate "FAIL" with %
Minimum Difference
7
, Sensor returns
to Adjust mode
Remote Input Single-pulse remote input
5. Return to RUN Mode.
Method Action Result
SET Button Move Mode switch to RUN Display: Red - Signal Level; Green -
Threshold
Remote Input No action required; sensor returns to
RUN mode automatically
Window SET
• Sets window thresholds that extend a programmable % offset above and below the presented condition
• All other conditions (lighter or darker) cause the output to change state
• Sensing window center can be adjusted using "+\" and "-" rocker button (Manual Adjust)
•
Recommended for applications where a product may not always appear in the same place, or when other signals
may appear
• See Program Mode in the user's manual for programming the Offset Percent setting (to increase/decrease the
window size)
A single sensing condition is presented, and the sensor positions window thresholds a programmable % offset above and
below the presented condition. In LO mode, Window SET designates a sensing window with the Output ON condition inside
the window, and the Output OFF conditions outside the window (see Figure 4 on page 11).
7
See Troubleshooting on page 18 for more explanation of the % Minimum Difference displayed after the Dynamic TEACH
method.
DF-G1 Expert
™
Dual Display Fiber Amplifier
