Banner DF-G1-NS-2M Installation Guide

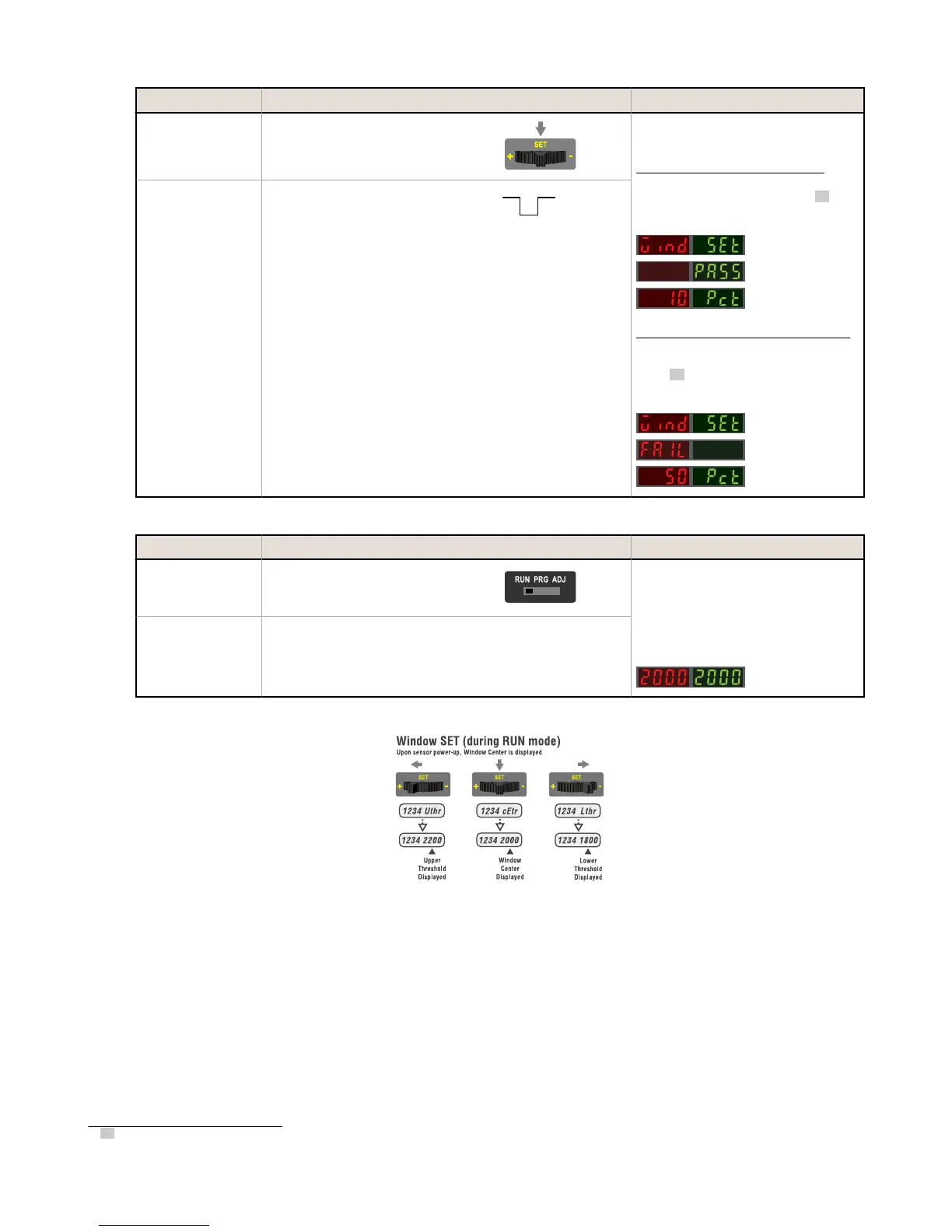

Method Action Result
SET Button
• Present sensing condition
• Click the SET rocker button
Threshold Condition Accepted
Displays read "wInd SEt" then
alternate "PASS" with % Offset
10
;
Sensor returns to Adjust mode
Threshold Condition Not Accepted
Displays read "wInd SEt" then
alternate "FAIL" with minimum %
Offset
10
for sensing condition; Sensor
returns to Adjust mode
Remote Input
• Present sensing condition
• Single-pulse the remote input
T
3. Return to RUN Mode
Method Action Result
SET Button Move Mode switch to Run
Display: Red - Signal Level; Green -
Window Center (see Figure 5 on page
12 for instructions on how to display
upper and lower thresholds)
Remote Input No action required; sensor returns to
Run mode automatically
Figure 5. Upper and Lower Thresholds
Light SET
•
Sets a threshold a programmable % offset below the presented condition
• Changes output state on any condition darker than the threshold condition
• Threshold can be adjusted using "+" and "-" rocker button (Manual Adjust)
•
Recommended for applications where only one condition is known, for example a stable light background with
varying darker targets
• See Program Mode on page 6 for programming the Offset Percent setting
A single sensing condition is presented, and the sensor positions a threshold a programmable % offset below the
presented condition. When a condition darker than the threshold is sensed, the output either turns ON or OFF, depending
on the LO/DO switch setting (see LO/DO Switch in Top Panel Interface on page 4).
10
See Troubleshooting on page 18 for more explanation of the % Offset displayed after the Window SET method
DF-G1 Expert
™
Dual Display Fiber Amplifier
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
