Banner DF-G1-NS-2M Installation Guide

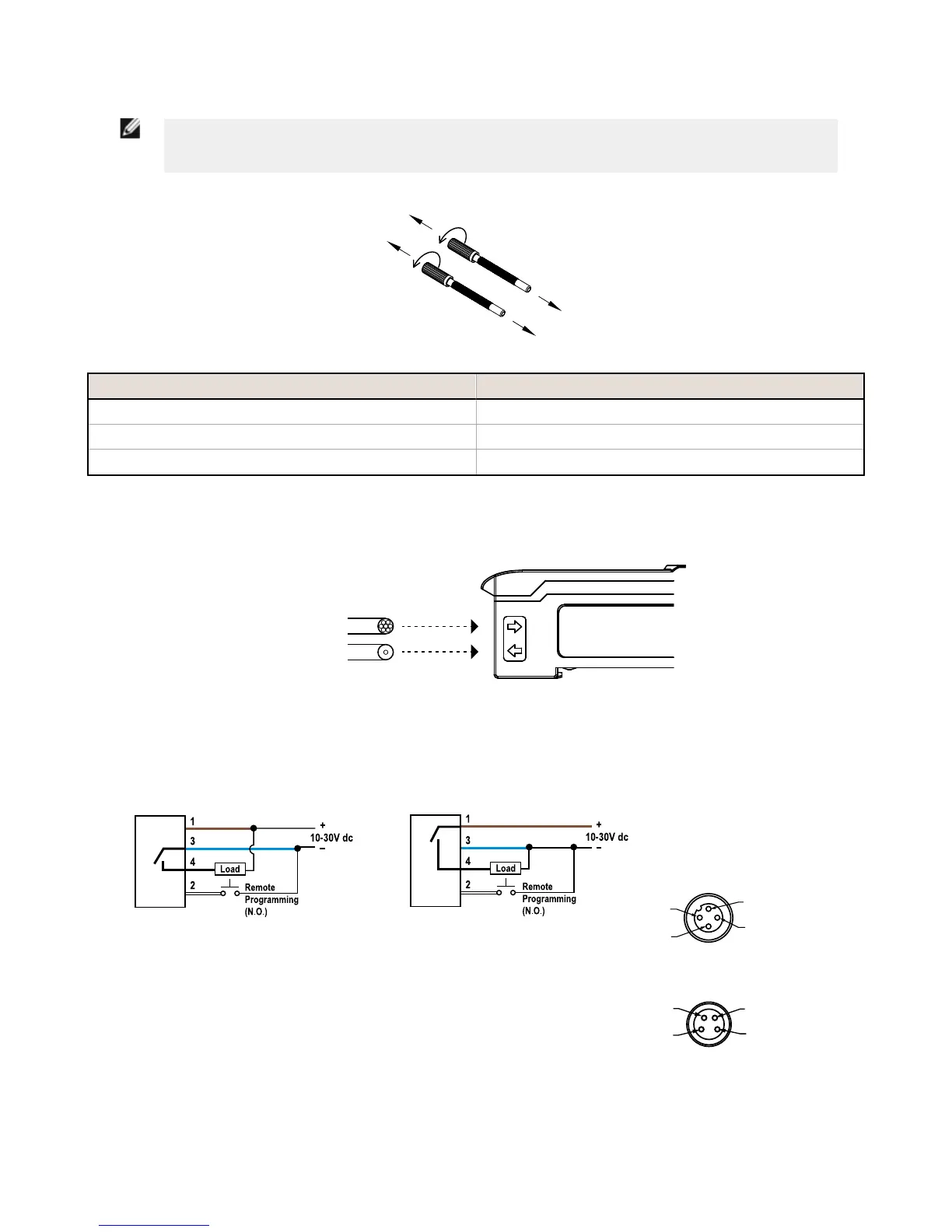

Fiber Adapters
NOTE: If a thin fiber with less than 2.2 mm outer diameter is used, install the fiber adapter provided
with the fiber assembly to ensure a reliable fit in the fiber holder. Banner includes the adapters with all
fiber assemblies.
TO
FIBERS
TO
SENSOR
Fiber Outer Diameter (mm) Adapter Color
Ø 1.0 Black
Ø 1.3 Red
Ø 2.2 No adapter needed
When connecting coaxial-type fiber assemblies to the amplifier, install the solid core fiber to the LED emitting port, and the
multi-core fiber to the PD receiving port for most reliable detection.
TRANSMITTER
RECEIVER
Single-core fiber
Multi-core fiber
Wiring Diagrams
NPN Models PNP Models
Key
1 = Brown
2 = White
3 = Blue
4 = Black
Euro
2
3
4
1
Pico
4
3
1
2
For cable options, see
Banner Engineering website.
DF-G1 Expert
™
Dual Display Fiber Amplifier
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
