Banner DF-G1-NS-2M Quick Start Guide

Sensor positions
threshold a programmable
% offset above the
presented condition
Threshold position
adjusted by
Manual Adjust
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF Output ON
Condition
Presented

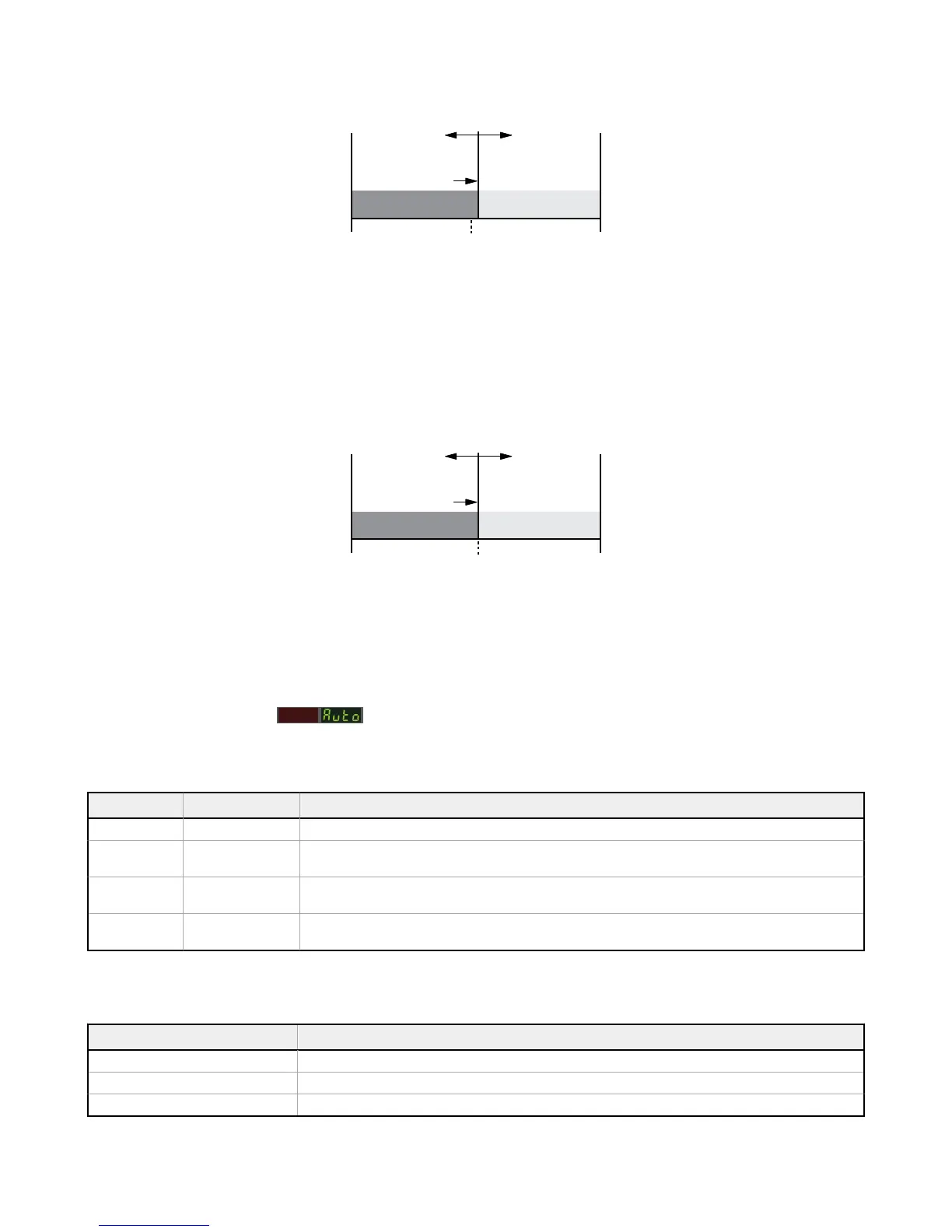

Figure 6. Dark SET (Light Operate shown)
Calibration SET
• Sets a threshold exactly at the presented condition
• Threshold can be adjusted using "+" and "-" rocker button (Manual Adjust)
A single sensing condition is presented, and the sensor positions a threshold exactly at the presented condition. When a condition
lighter than the threshold is sensed, the output either turns ON or OFF, depending on the LO/DO setting.
Sensor positions
threshold exactly at
the presented condition
Threshold position
adjusted by
Manual Adjust
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF Output ON
Condition
Presented
Figure 7. Calibration SET (Light Operate shown)
Troubleshooting
Manual Adjustments Disabled
Manual adjustments are disabled when Auto Thresholds are ON. If a manual adjustment is attempted while Auto Thresholds are
ON, the Green display will
flash .
Percent Minimum Difference after TEACH
The Two-Point and Dynamic TEACH methods will
flash a % minimum difference on the displays after a PASS or FAIL.
Value
PASS/FAIL Description
0 to 99% FAIL The difference of the taught conditions does not meet the required minimum
100 to 300% PASS The difference of the taught conditions just meets/exceeds the required minimum, minor
sensing variables may affect sensing reliability
300 to 600% PASS The difference of the taught conditions sufficiently exceeds the required minimum, minor
sensing variables will not affect sensing reliability
600% + PASS The difference of the taught conditions greatly exceeds the required minimum, very stable
operation
Percent Offset after SET
The Window, Dark, and Light SET methods will flash a % offset on the displays after a PASS or FAIL.
SET Result
% Offset Meaning
PASS (with % Offset) Displays the % offset used for the SET method
FAIL (with % Offset) Displays the minimum required % offset necessary to PASS the SET method
FAIL (without % Offset) Presented condition cannot be used for the SET method
DF-G1 Expert
™
Dual Display Fiber Amplifier
8 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 161275 Rev. E

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
