Banner Q4X Quick Start Guide

Performance Curves—Threaded Barrel Models

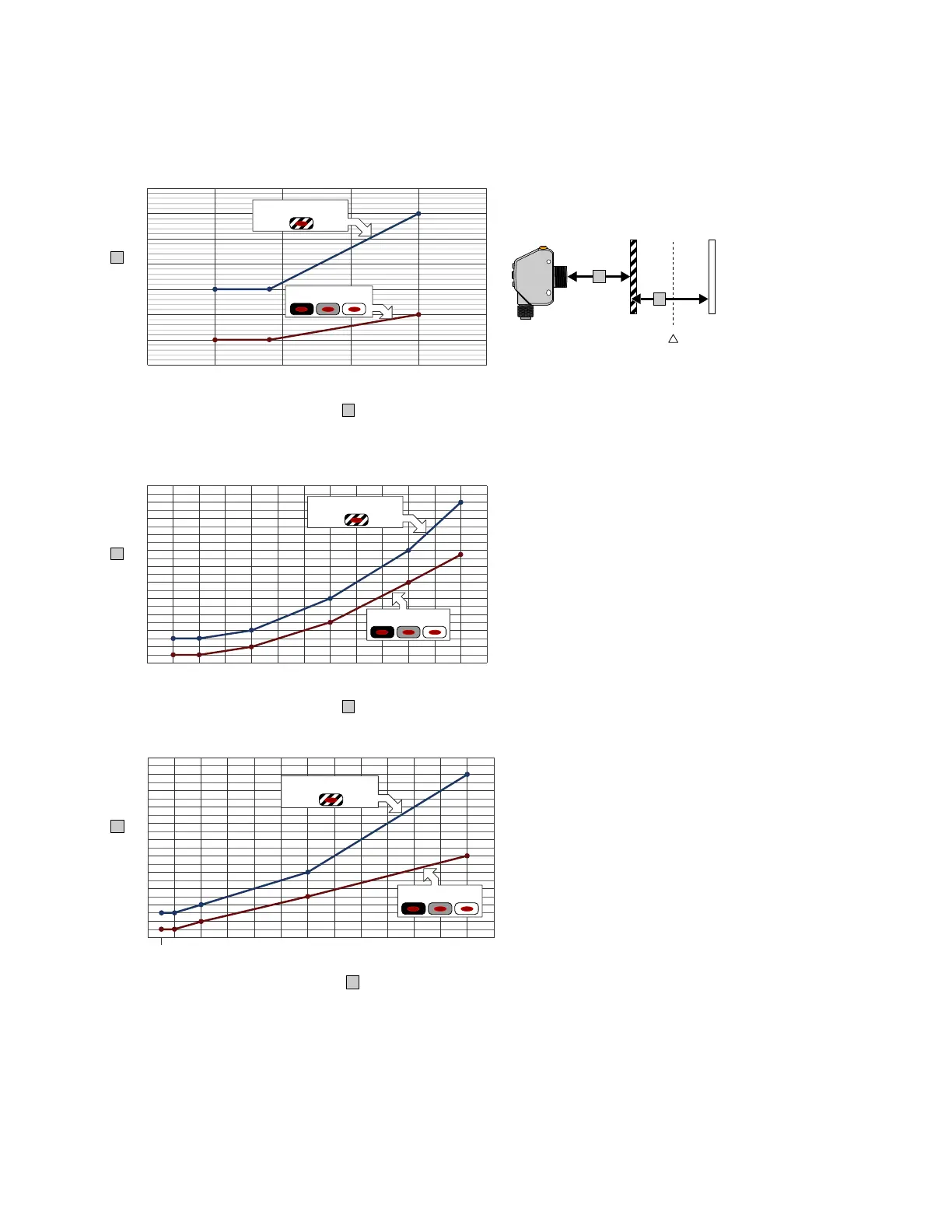

Figure 15. Minimum Object Separation Distance (90% to 6% reflectance)
Minimum Separation Distance Between Target and Background for: Uniform and Non-Uniform Targets
100 mm Models
300 mm Models
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
Target
Switch Point
Distance
Background
X
Y
0
2
4
6
8
10
12
14
16
18
20
22
0 25 50 75 100 125 150 175 200 225 250 275 300 325
Matte targets with uniform
reflectivity: 6% to 90%
Matte targets with a non-uniform
reflectivity: 6% to 90%
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 25 50 75 100 125
Matte targets with a non-uniform
reflectivity: 6% to 90%
Matte targets with uniform
reflectivity: 6% to 90%
Threaded Barrel Models
600 mm Models
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
2
4
6
8
10
12
14
16
18
20
22
0 100
25
200 300 400 500 600
Matte targets with uniform
reflectivity: 6% to 90%
Matte targets with a non-uniform
reflectivity: 6% to 90%
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
10 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 190073 Rev. G

Banner Q4X Specifications

General

Sensing Mode	Diffuse
Input Voltage	10 V DC to 30 V DC
Output	NPN or PNP
Housing Material	Stainless steel
IP Rating	IP67
Connection Type	M12
