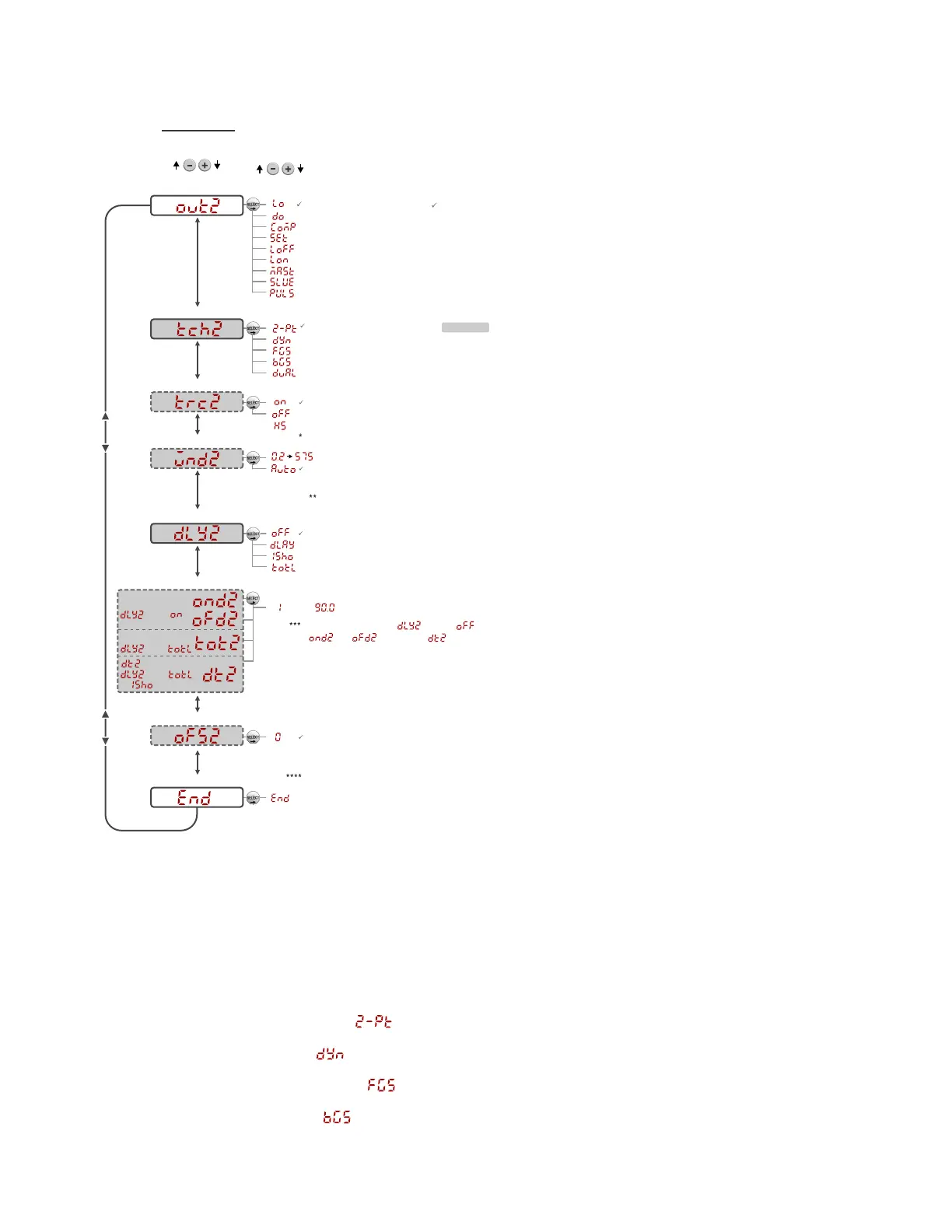

Figure 14. Sensor Menu Map—Channel 2
Two-Point Static Teach
Dynamic Teach
Background Suppression
Foreground Suppression
Top Menu
Sub Menu
off: no delays enabled
on: enable on and/or off delay (set value in Delay Timer menu)
1 Shot, fixed output pulse duration
Total
end: exit setup
Teach Selection CH2
Output CH2
Window Size CH2 **
Output Timing Delays CH2
Offset CH2 ****
Exit Setup
( default setting)
Light Operate
Dark Operate
Complimentary to Output 2
Dual Mode
Adaptive Tracking CH2 *
off: Adaptive Tracking off
High-Speed Adaptive Tracking on
on: Adaptive Tracking on
Channel 2
Adaptive Tracking menu is available when Teach CH2 is set to Dual Mode
laser off when pulled high
laser on when pulled high
set: Remote Teach input
master
slave
pulse
sec range, set Delay Timer value (seconds have decimal)
to
ms
Menu not present when is set to
( and default to 0, defaults to 1 or 10 depending on response speed setting)
Delay Timer CH2 ***
Available when
set to
Available when
set to
available when
set to
or
Menu items only available when
out2 is set to LO or DO
=
Auto
Set Value:
Offset menu is available when Teach CH2 is set to FGS or BGS
-75 to 75 for 100/110 mm models
-275 to 275 for 300/310
mm models
-575 to 575 for 600/610 mm models
0.2 to x, where x depends on measuring span:
Window Size menu is available when Teach CH2 is set to FGS
75 for 100/110 mm models
275
for 300/310 mm models
575 for 600/610 mm models
Basic TEACH Instructions
Use the following instructions to teach the Q4X sensor. The instructions provided on the sensor display vary depending on the type of TEACH mode
selected. Two-point TEACH is the default TEACH mode.
1.
Press and hold TEACH for longer than 2 seconds to start the selected TEACH mode.
2. Present the target.
3. Press TEACH to teach the target. The target is taught and the sensor waits for the second target, if required by the selected TEACH mode,
or returns to Run mode.
Complete steps 4 and 5 only if required for the selected TEACH mode:
4. Present the second target.
5. Press TEACH to teach the target. The target is taught and the sensor returns to Run mode.
See the Instruction Manual for detailed instructions and other available TEACH modes. The TEACH modes include:
• Two-point static background suppression
—Two-point TEACH sets a single switch point. The sensor sets the switch point between
two taught target distances, relative to the shifted origin location.
•
Dynamic background suppression
—Dynamic TEACH sets a single switch point during machine run conditions. The sensor takes
multiple samples and the switch point is set between the minimum and the maximum sampled distances.
•
One-point window (foreground suppression)
—One-point window sets a window (two switch points) centered around the taught
target distance.
•
One-point background suppression
—One-point background suppression sets a single switch point in front of the taught target
distance. Objects beyond the taught switch point are ignored.
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
