The Main Display
Xlll LDS VOX +-RWfl<lsQl34[lIIE
75«C«C
25 "
CT ^m.
DCS
■ ■ ::... 75>OC
5T2T S .* ! ""■.
, W ■ ■■■■■ ■
Liimr aM ■ .amm »
. :..m25 *■ •

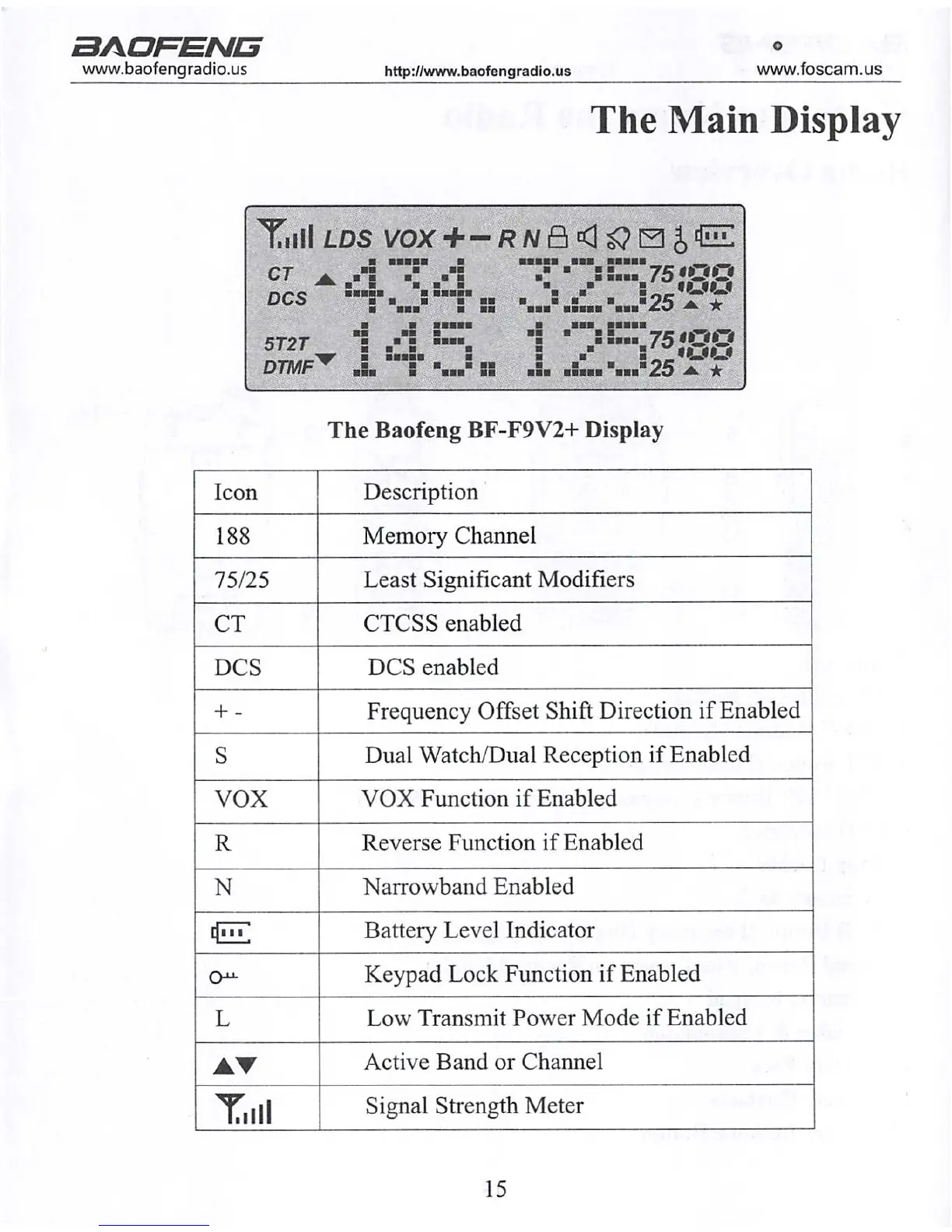

The Baofeng BF-F9V2+ Display
Icon
Description
188
Memory Channel
75/25 Least Significant Modifiers
CT CTCSS enabled
DCS DCS enabled
+ -
Frequency Offset Shift Direction if Enabled
S
Dual Watch/Dual Reception if Enabled
VOX
VOX Function if Enabled
R Reverse Function if Enabled
N Narrowband Enabled
rJTTT
Battery Level Indicator
O" Keypad Lock Function if Enabled
L Low Transmit Power Mode if Enabled
AT
Active Band or Channel
Xiil
Signal Strength Meter
15
aAOF=ENE
www.baofengradio.us http://www.baofengradio.us
www.foscam.us
Menu Definitions
Menu Item Shortcut
Description
OFFSET 26
Frequency Shift/OFFSET (MHz): Specifies the difference
between the TX and RX frequencies.
Availability: VFO/Frequency Mode, Stored in Channel
Settings/Notes
00.000 - 69.990 in 10 kHz steps Default: 00.600
Note: Used with menu 25 to access repeaters in VFO/Frequency mode
Note: Typical ham offsets are: VHF = 00.600 UHF = 05.000
Note: OFFSET is not required when storing repeater frequencies into channels
Menu Item Shortcut
Description
MEM-CH 27
CHannel Programming: This menu is used to either create new
or modify existing channels (000 through 127) so that they
can be accessed from MR/Channel Mode. The behavior of
menu 27 changes depending on whether the target channel is
empty or has been previously programmed (see below).
Availability: VFO/Frequency Mode
Settings/Notes
000-127 Default: 000
Note: Programming must be done in [A] VFO
Empty Target Channel: The RX and TX frequencies of the target channel are set to the
[A] VFO frequency. The settings of the following menus are also saved into the target
channel. This essentially creates a fully operational simplex channel.
Menu 2 - TXP: Transmit Power
Menu 5 - WN: Wideband / Narrowband
Menu 10 - R-DCS: Digital Coded Squelch (DCS) - Receive/Decode
Menu 11 - R-CTCS: Continuous Tone Coded Squelch System (CTCSS) - Receive/Decode
Menu 12 - T-DCS: Digital Coded Squelch (DCS) - Transmit/Encode
Menu 13 - T-CTCS: Continuous Tone Coded Squelch System (CTCSS) - Transmit/Encode
Menu 17 - S-CODE: PTT-ID DTMF Code Selection
Menu 19 - PTT-ID: When to Send PTT-ID
Menu 23 - BCL: Busy Channel Lockout
