Menu Definitions
Menu Item Shortcut Description
DTMFST 16
DTMF Side Tones: Determines when DTMF Side Tones can
be heard from the transceiver speaker.
Availability: Global
Settings/Notes
OFF [0] | DT-ST [1] | ANI-ST [2] | DT+ANI [3] Default: DT+ANI
OFF: No DTMF Side Tones are heard.
DT-ST: Side Tones are heard only from manually keyed DTMF codes.
ANI-ST: Side Tones are heard only from automatically keyed DTMF codes.
DT+ANI: All DTMF Side Tones are heard.
Note: Requires the transceiver to be in transmit mode.
Note: The mic can pick up the side tone and if the volume loud enough, it will overdrive
and/or distort the transmitted DTMF tones.
Note: (s: BFB231) [MENU]=A, [A] =C, [▼]=B, [EXIT]=D (+)
Note: (> BFB238) [MENU]=A, [A] =B, [T]=C, [EXIT]=D (+)
[MENU]=A, [A] =B, [T]=C, [EXIT]=0
(+) The Side Tone heard for 'D' is '0' (zero) but 'D' is sent over-the-air
Menu Item
Shortcut
Description
S-CODE 17
PTT-ID (Signal-CODE) Selection: Selects 1 of 15 signal codes.
The signal codes are programmed with software and are up
to 5 DTMF signals each.
Availability: MR/Channel Mode (Read Only), VFO/Frequency Mode, Separate VFO
A & B Settings, Stored in Channel
Settings/Notes
1 [0] | 2 [1] | 3 [2] | 4 [3] | 5 [4] | 6 [5] | 7 [6] | 8 [9] | 9 [8] | 10 [9] | 11 [10] | 12 [11] |
13 [12] | 14 [13] | 15 [14] Default: 1
Note: Menu 19 must be enabled for an S-CODE to be transmitted.
51
aAOFENO
www.baofengradio.us http://www.baofengradio.us
www.foscam.us

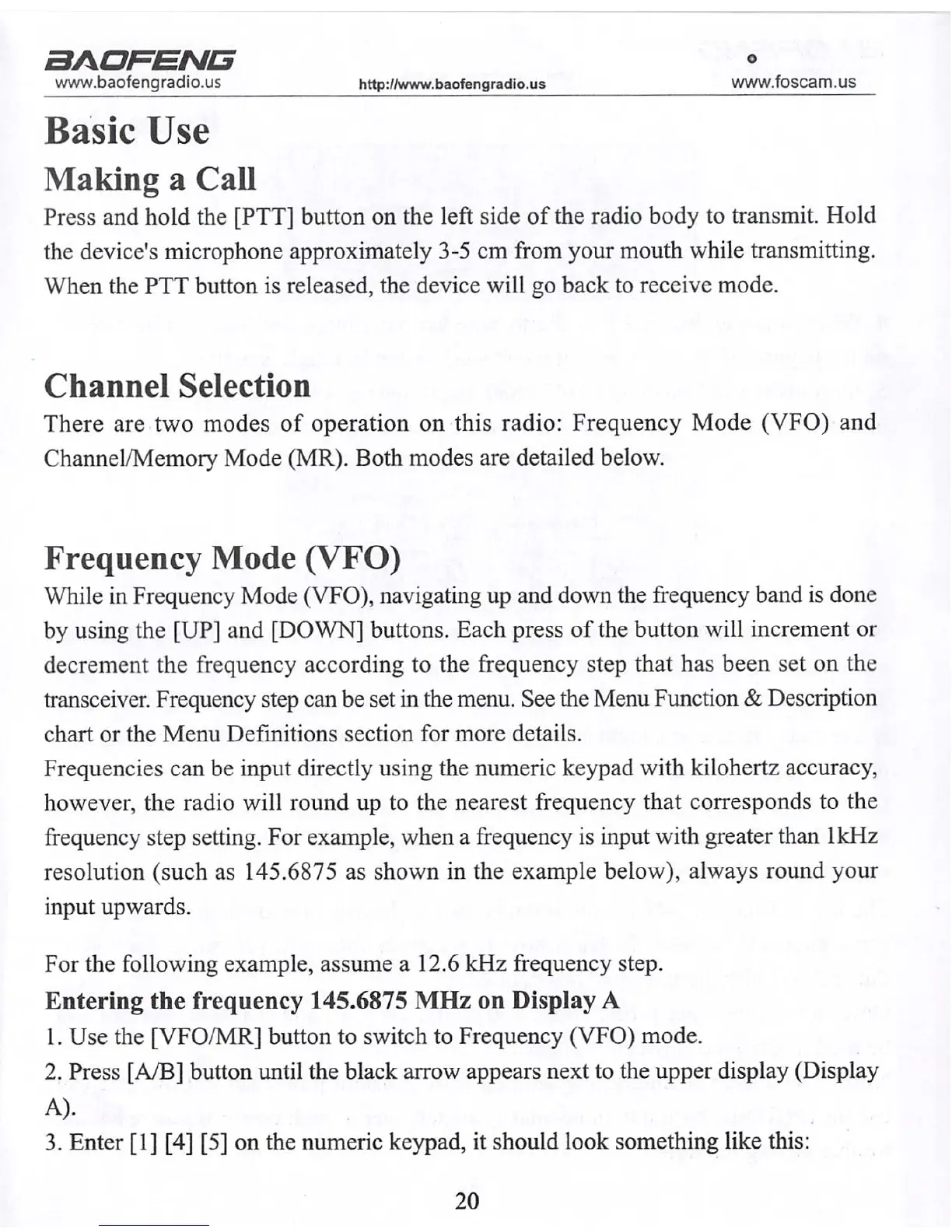

Basic Use
Making a Call
Press and hold the [PTT] button on the left side of the radio body to transmit. Hold
the device's microphone approximately 3-5 cm from your mouth while transmitting.
When the PTT button is released, the device will go back to receive mode.
Channel Selection
There are two modes of operation on this radio: Frequency Mode (VFO) and
Channel/Memory Mode (MR). Both modes are detailed below.
Frequency Mode (VFO)
While in Frequency Mode (VFO), navigating up and down the frequency band is done
by using the [UP] and [DOWN] buttons. Each press of the button will increment or
decrement the frequency according to the frequency step that has been set on the
transceiver. Frequency step can be set in the menu. See the Menu Function & Description
chart or the Menu Definitions section for more details.
Frequencies can be input directly using the numeric keypad with kilohertz accuracy,
however, the radio will round up to the nearest frequency that corresponds to the
frequency step setting. For example, when a frequency is input with greater than 1kHz
resolution (such as 145.6875 as shown in the example below), always round your
input upwards.
For the following example, assume a 12.6 kHz frequency step.
Entering the frequency 145.6875 MHz on Display A
1. Use the [VF0/MR] button to switch to Frequency (VFO) mode.
2. Press [A/B] button until the black arrow appears next to the upper display (Display
A).
3. Enter [1] [4] [5] on the numeric keypad, it should look something like this:
20
