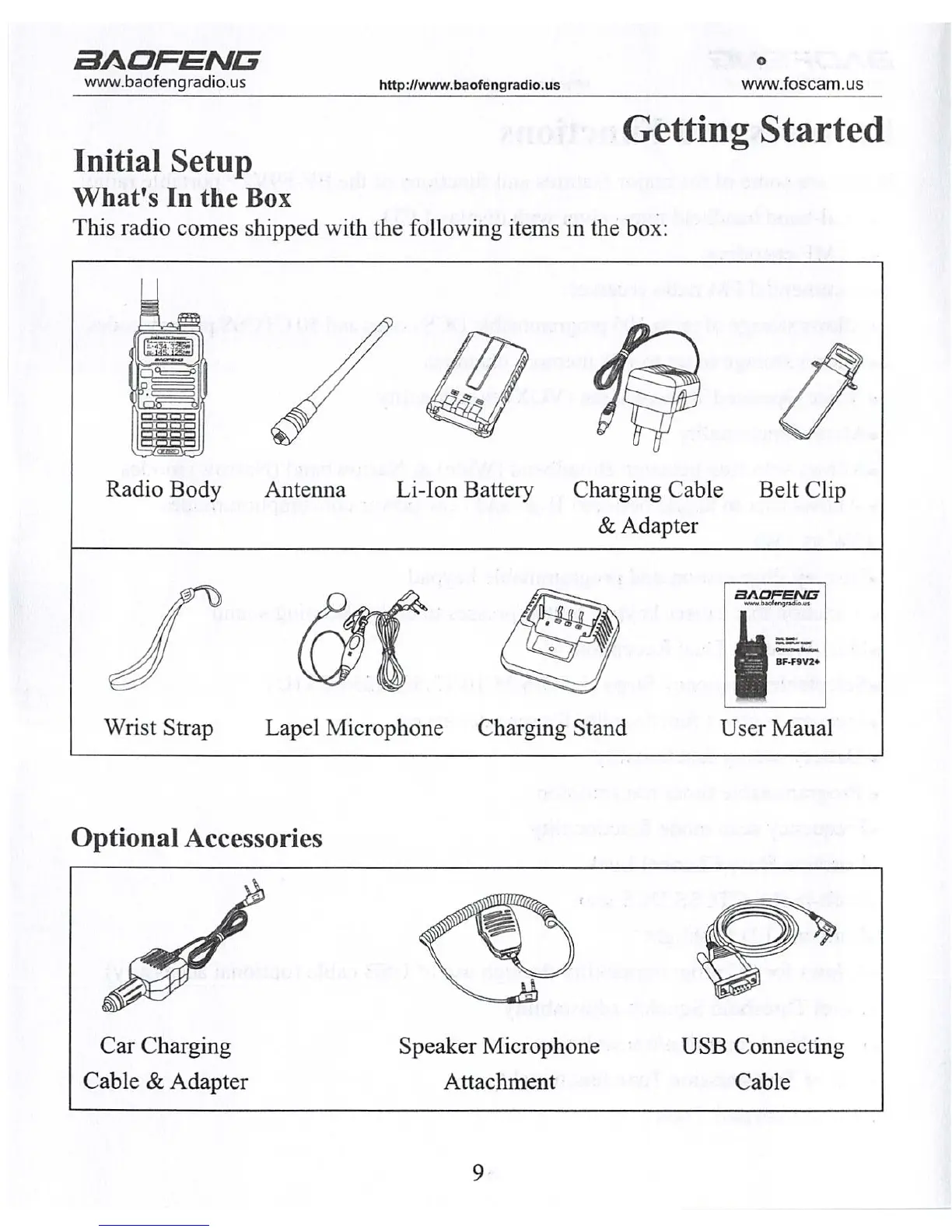

Getting Started
Initial Setup
What's In the Box
This radio comes shipped with the following items in the box:
Radio Body Antenna Li-Ion Battery Charging Cable Belt Clip
& Adapter
k
1
Wrist Strap Lapel Microphone Charging Stand User Maual
Optional Accessories
Car Charging
Cable & Adapter
Speaker Microphone
USB Connectin
Attachment Cable
aAOFENE
www.baofengradio.us http://www.baofengradio.us
www.foscam.us
Technical Specifications
GENERAL
Specification
Value
Frequency Range (MHz)
65-108 (RX Only) 136-174 (RX/TX)
400- 480 (RX/TX)
Memory Channels
128
Frequency Stability 2.5ppm
Frequency Step (kHz)
2.5/5/6.25/10/12.5/25
Antenna Impedance 50 Ohm
Operating Temperature
-20 "C to +60 "C
Supply Voltage
7.4
Consumption
^75mA (standby) 380mA (reception)
=S 1.4A (transmission)
Mode of Operations
Simplex or Semi-Duplex
Duty Cycle
03 / 03 / 54 minutes (RX/TX / Standby)
Dimensions (mm)
58x 110x32
Weight (g) 214
RF Power 7W/4W/1W
Type of Modulation
FM
Emission Class 16K * F3E (Wideband) / 1 IK * F3E (Narrowband)
Maximum Deviation =S + 5 kHz (Wideband) / s; +2.5 kHz (Narrowband)
Spurious Emissions
=S60dB
Receiver Sensitivity 0.2 u V (at 12 dB SIN AD)
Intermodulation 60 dB
Audio Output 1000 mW
Adjacent Channel Selectivity
65 / 60 dB
