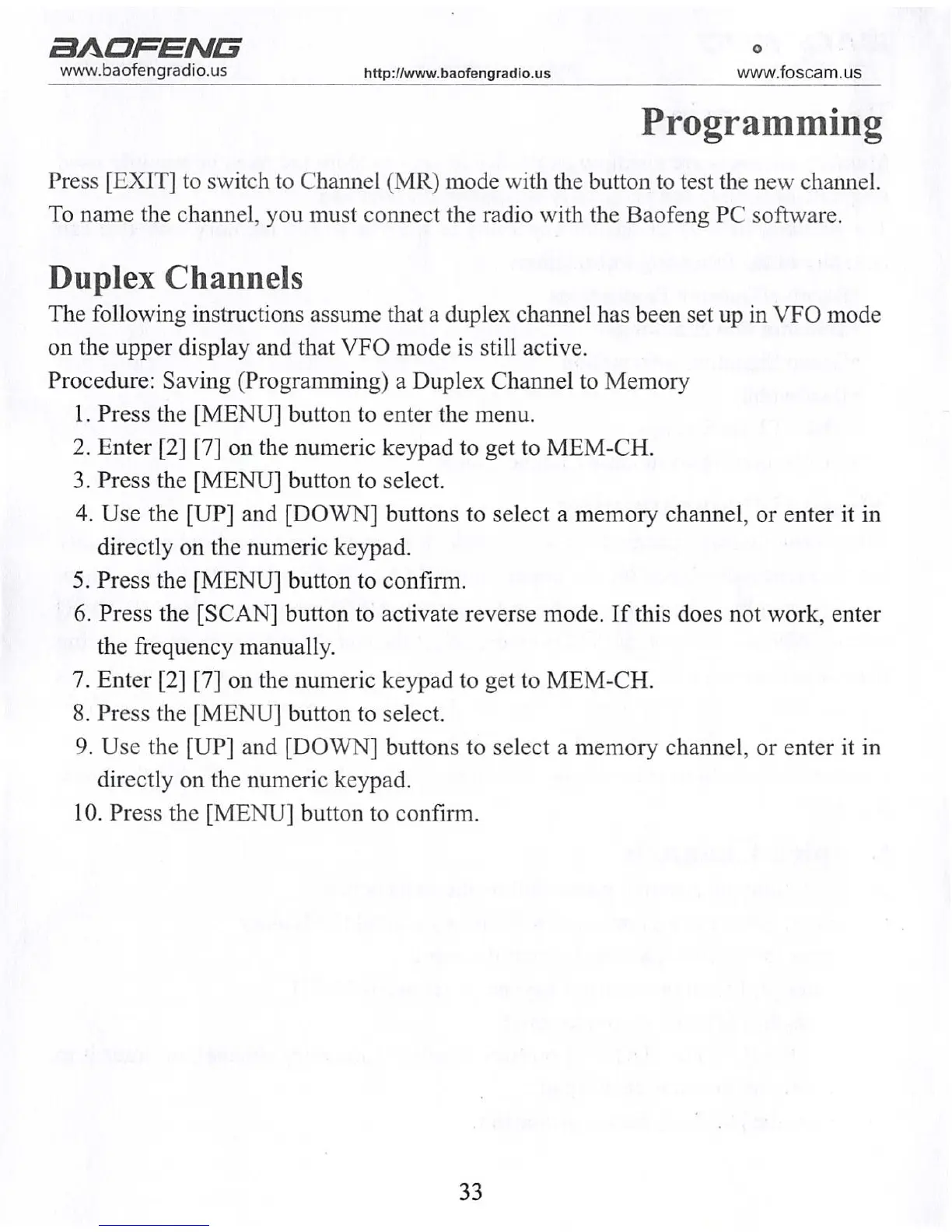

Press [EXIT] to switch to Channel (MR) mode with the button to test the new channel.
To name the channel, you must connect the radio with the Baofeng PC software.
Duplex Channels
The following instructions assume that a duplex channel has been set up in VFO mode
on the upper display and that VFO mode is still active.
Procedure: Saving (Programming) a Duplex Channel to Memory
1. Press the [MENU] button to enter the menu.
2. Enter [2] [7] on the numeric keypad to get to MEM-CH.
3. Press the [MENU] button to select.
4. Use the [UP] and [DOWN] buttons to select a memory channel, or enter it in
directly on the numeric keypad.
5. Press the [MENU] button to confirm.
6. Press the [SCAN] button to activate reverse mode. If this does not work, enter
the frequency manually.
7. Enter [2] [7] on the numeric keypad to get to MEM-CH.
8. Press the [MENU] button to select.
9. Use the [UP] and [DOWN] buttons to select a memory channel, or enter it in
directly on the numeric keypad.
10. Press the [MENU] button to confirm.
33
3AOFENE
www.baofengradio.us
http://www.baofengradio.us
O
www.foscam.us
How-To and Setup Guides
Automatic Number Identification (ANI)
In most dispatch environments it is common to have a system that allows radios to
automatically identify themselves to the dispatcher. This is known as Automatic
Number Identification (AIN), or PTT-ID, due to the radio sending a data burst containing
the ID code at the beginning or end of a transmission. The Baofeng BF-F9V2+ uses
DTMF signaling to enable ANI implementation.
Procedure: Setting ANI/PTT-ID Code
1. Attach the radio to the computer and open the Baofeng PC software. See —
Computer Programming—section for more details.
2. In the Edit menu, select DTMF. This will open up a window called DTMF
Encode/Decode.
3. Go to the Program menu, select Read from Radio and the Read from Radio
window will open.
4. Click the Read button. The status LED on the radio will flash red indicating the
transmission of data.
5. Locate the box named ANI Code and enter any relevant ANI code details into
this text field.
a. If group ID codes are used instead of personal ID codes, it is possible to enter
up to 15 of them in the list on the left in the DTMF Encode/Decode window.
These can be assigned on a channel by channel basis in the Channel Information field.
6. Check the Press PTT to Send box to transmit ID prior to regular transmission.
7. Check the Release PTT to Send box to transmit ID after regular transmission.
8. In the Program menu, select Write to Radio and the Write Data to Radio window
will open.
9. Click the Write button. The status LED on the radio will flash green indicating
that it's receiving data.
To fully enable ANI settings, there are a few more steps. The directions below assume
that the radio is still connected to the PC, and that the software is running.
Procedure: Enabling/Disables/Configuring ANI Settings
1. In the Edit menu, select Optional Features. This will open up a window called
Optional Features.
2. Go to the Program menu, select Read from Radio and the Read from Radio
window will open.
3. Click the Read button. The status LED on the radio will flash red indicating the
transmission of data.
