Barco CLICK SHARE CS-100 User Manual

3. Getting started
3
1
2
2

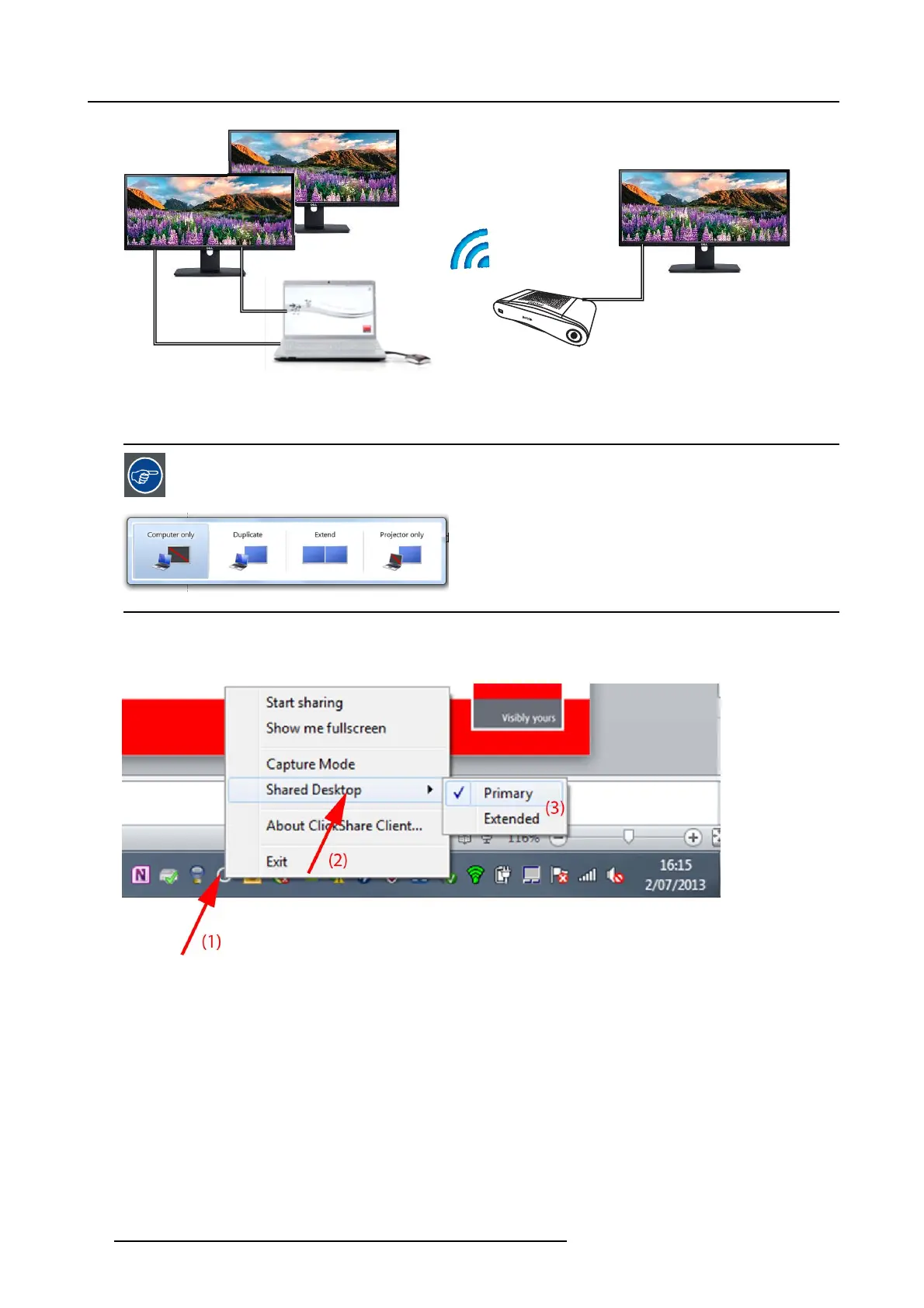

Image 3-10
PC w ith two extended screens connected. The first extended s creen, screen 2 will alway s be c
aptured and displayed on the meeting
room display.
To kn ow if your system supports the extended desk top feature, press Window key + P . It should bring up the
following pop-up on screen:
Image 3-11
How to select
1. Right click on the ClickShare icon in the system tray (1).
Image 3-12
Shared desktop selection
A context menu opens.
More that one extended desktop c an be shown, e.g. extended desktop (center) and extended desktop (right).
2. Select Shared Des ktop (2).
3. Select the desired setting (3).
Primary : the primary PC screen is displayed on the meeting room display.
Extended always the secondary screen is displayed on the meeting room display.
14
R5900024 CLICKSHARE CS-100 19/03/2018

Barco CLICK SHARE CS-100 Specifications

General

Model	CS-100
Category	Projector Accessories
Wireless Standard	IEEE 802.11 a/b/g/n
Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Users	Up to 8
Security	WPA2-PSK
Output Resolution	Up to 1920x1080
Number of Sources at the Same Time on Screen	1
Number of Simultaneous Connections	Up to 8
Wireless Sharing	Yes
Frame Rate	30 fps
ClickShare Buttons	1
Power Consumption	Typical 6W
Compatibility	Windows, macOS
Connectivity	HDMI
Weight	600g
Base Unit Dimensions	205mm x 115mm x 45mm / 8.1” x 4.5” x 1.8”
Dimensions	205mm x 115mm x 45mm
