Barco CLICK SHARE CS-100 User Manual

3. Getting started

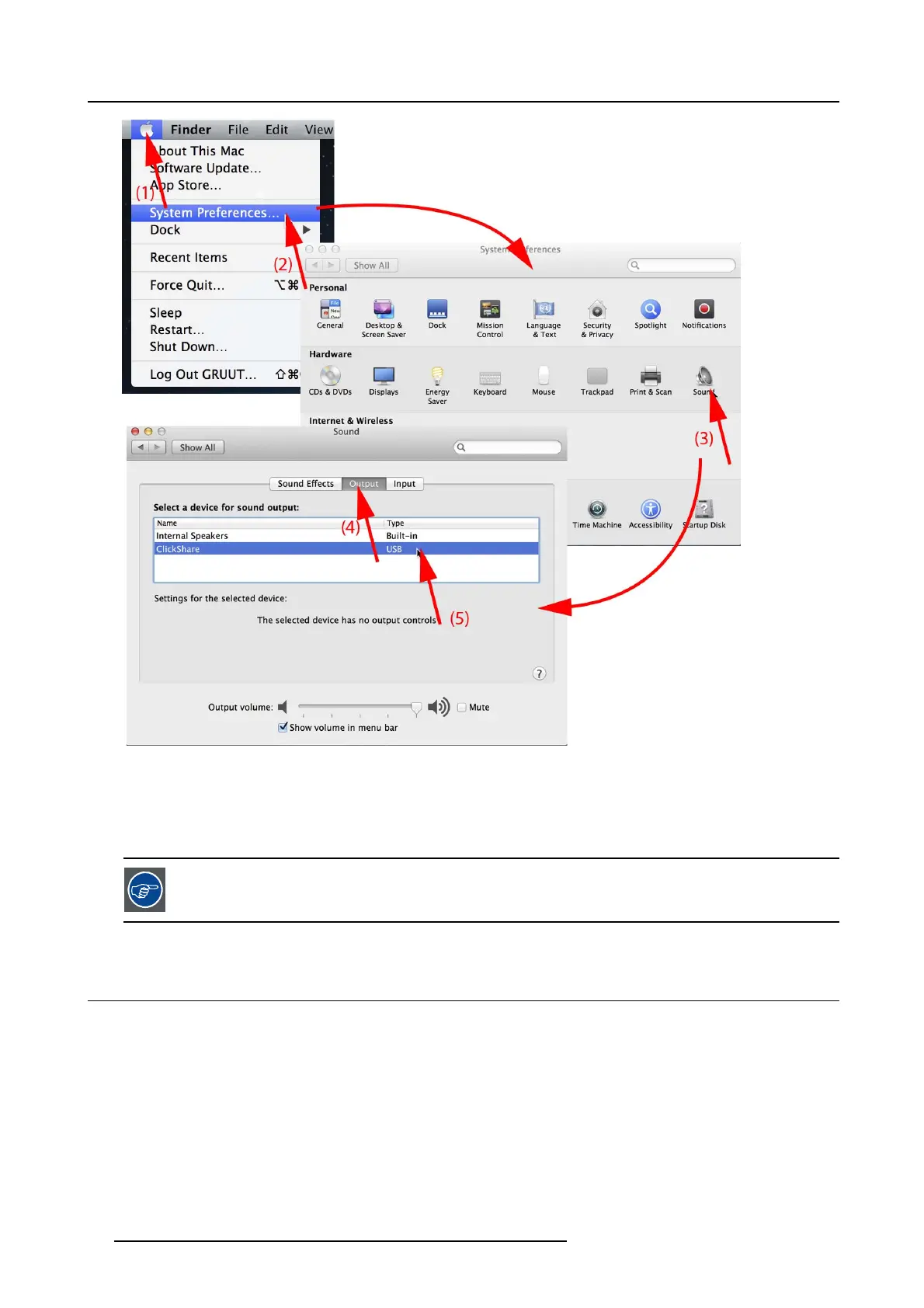

Image 3-14
Speakers ClickShare, default
2. Click on the Speaker icon (3).
The Sound window opens.
3. Select the O utput tab (4) and activate ClickShare (5).
Short way to select ClickShare as audio device: Click with t he mouse on the Speaker symbol in t he menu bar
while holding ALT. ClickShare will be visible as an option.
3.7 Pairing
Pairing of the Buttons wit
h the Base Unit
To be able to use a Button it s hould be assigned to the Base Unit yo u are using. T his process is called pairing. By default, the
Button(s) delivered with the CS-100 set are already paired to the specific Base U nit.
In case you buy a dditional B uttons or when a Button should be assigned to another B ase Unit, the Button needs to be paired (again).
The Button software update runs in the background and will not impact users while using the system. If desired, this feature c an
be disabled in the Web Interface. When do wngrading or updating to an older version of the Base Unit software the Buttons need to
paired manually to update their software and that only in case the Button update over Wi-Fi is disabled.
16
R5900024 CLICKSHARE CS-100 19/03/2018

Barco CLICK SHARE CS-100 Specifications

General

Model	CS-100
Category	Projector Accessories
Wireless Standard	IEEE 802.11 a/b/g/n
Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Users	Up to 8
Security	WPA2-PSK
Output Resolution	Up to 1920x1080
Number of Sources at the Same Time on Screen	1
Number of Simultaneous Connections	Up to 8
Wireless Sharing	Yes
Frame Rate	30 fps
ClickShare Buttons	1
Power Consumption	Typical 6W
Compatibility	Windows, macOS
Connectivity	HDMI
Weight	600g
Base Unit Dimensions	205mm x 115mm x 45mm / 8.1” x 4.5” x 1.8”
Dimensions	205mm x 115mm x 45mm
