R5900102 /00 CX-20 33
1

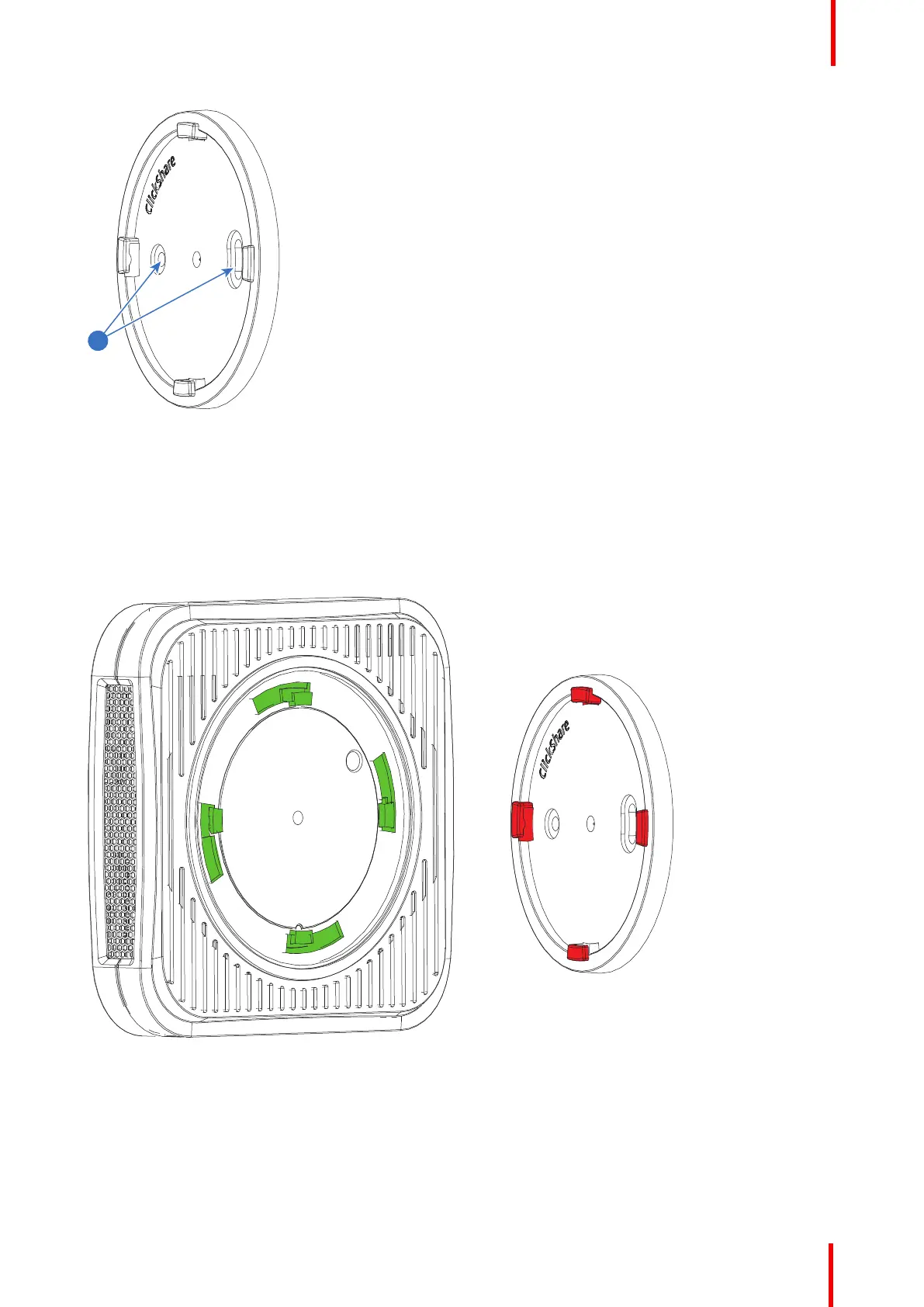

Image 4-1
3. Select a drill bit slightly smaller than the size of the used anchors to ensure a snug fit.
4. Drill the holes where marked.
5. Tap plastic screw anchors into the drill holes with a hammer (if needed, depending on the wall or ceiling type).
6. Place the mounting base on the ceiling or wall, drive in the screws.
7. Place your device on the mounting base and turn it clockwise until it is locked.
Image 4-2
Mounting with the self-adhesive layer
1. Peel off the removable protection foil.
CX-20 Installation

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Barco ClickShare CX-20 set Gen 2 and is the answer not in the manual?

Barco ClickShare CX-20 set Gen 2 Specifications

General IconGeneral
Wireless ConferencingYes
Network ConnectivityWi-Fi, Ethernet
Native ProtocolsAirPlay, Google Cast, Miracast
Relative Humidity20% to 80% (non-condensing)
Video OutputHDMI
Supported ResolutionsUp to 4K Ultra HD (3840x2160)
Operating System CompatibilityWindows, macOS, Android, iOS
SecurityWPA2
USB Ports1 x USB Type-C, 1 x USB Type-A
ResolutionUp to 4K Ultra HD (3840x2160)
Operating Temperature0°C to +40°C
Storage Temperature-20°C to +60°C
