Barco ClickShare CX-20 set Gen 2 User Manual

R5900102 /00 CX-20 45

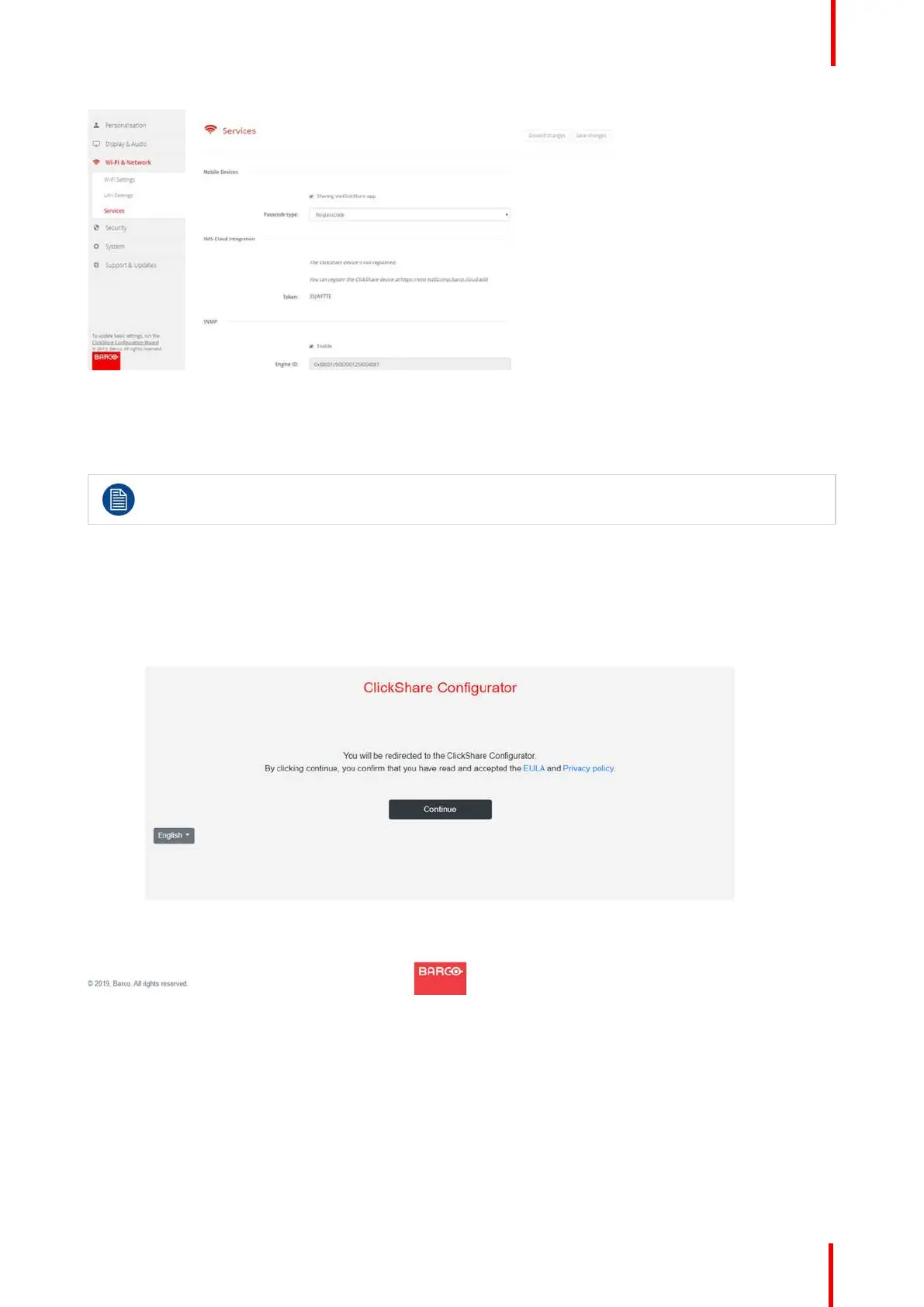

Image 4-21: XMS cloud message
4.16 Basic configuration of the ClickShare device
Make sure you are connected via WiFi to the Base Unit.
How to setup
1. Open an internet browser and browse to http://192.168.2.1
The ClickShare Configurator starts up.
Image 4-22: Configurator startup
2. To change the language, click on the drop down box of the current indicated language and select the desired
language.
CX-20 Installation

Barco ClickShare CX-20 set Gen 2 Specifications

General

Wireless Conferencing	Yes
Network Connectivity	Wi-Fi, Ethernet
Native Protocols	AirPlay, Google Cast, Miracast
Relative Humidity	20% to 80% (non-condensing)
Video Output	HDMI
Supported Resolutions	Up to 4K Ultra HD (3840x2160)
Operating System Compatibility	Windows, macOS, Android, iOS
Security	WPA2
USB Ports	1 x USB Type-C, 1 x USB Type-A
Resolution	Up to 4K Ultra HD (3840x2160)
Operating Temperature	0°C to +40°C
Storage Temperature	-20°C to +60°C
