2. Stick the base on the chosen location.
3. Place your device on the mounting base and turn it clockwise until it is locked (Image 4-2).
4.4 Out-of-the-box use of the Base Unit
Overview
The ClickShare Base Unit and Button (s) operate directly out of the box, without any integration in the
Enterprise network. The Base Unit should be connected to the internet at least once to update and to register.
Users can connect directly to the Base Unit via the ClickShare Buttons, using the ClickShare App or Miracast
or with their mobile devices using Airplay or Google Cast.
Using a ClickShare Button allows you to stay connected to the internet. Using the ClickShare App, Airplay or
Google Cast will require connecting to the Base Unit directly and will only be able to access the internet if the
device supports to use data (3G/4G) at the same time.
B
F G H
A
C
DD
E
E

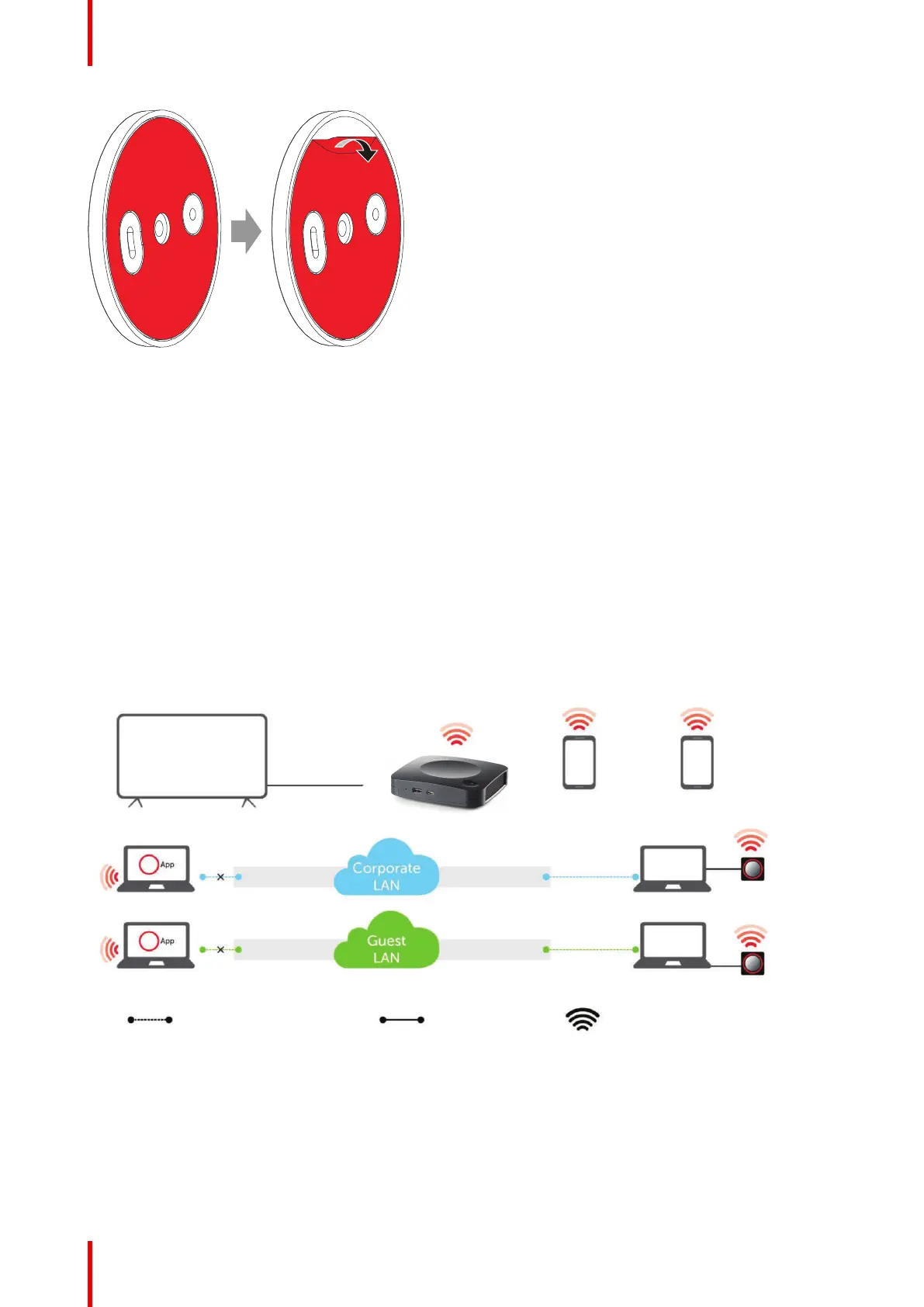

Image 4-4: Out-of-the-Box use
A Meeting room screen
B Employee mobile
C Guest mobile
D Employee laptop
E Guest laptop
F Wireless or Ethernet connection
G Ethernet connection
H Wireless connection
Using the ClickShare Base Unit and Buttons directly out of the box is ideal for temporary setups, visitor
centers and small to medium installations without network integration needs or possibilities. This setup
CX-20 Installation

Barco ClickShare CX-20 set Gen 2 Specifications

General

Wireless Conferencing	Yes
Network Connectivity	Wi-Fi, Ethernet
Native Protocols	AirPlay, Google Cast, Miracast
Relative Humidity	20% to 80% (non-condensing)
Video Output	HDMI
Supported Resolutions	Up to 4K Ultra HD (3840x2160)
Operating System Compatibility	Windows, macOS, Android, iOS
Security	WPA2
USB Ports	1 x USB Type-C, 1 x USB Type-A
Resolution	Up to 4K Ultra HD (3840x2160)
Operating Temperature	0°C to +40°C
Storage Temperature	-20°C to +60°C
